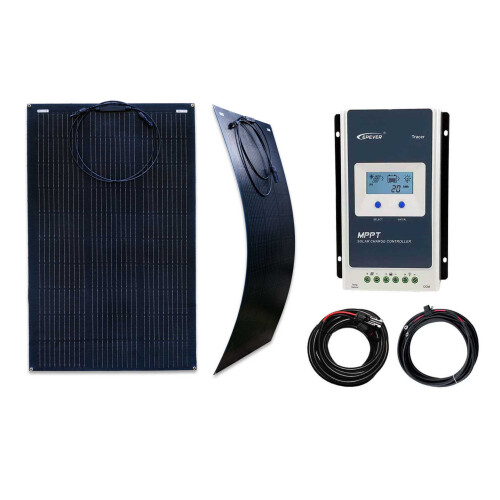

100w Black Flexible Solar Panel Charging Kit Caravan MPPT Charger Controller K4

100w Black Flexible Solar Panel Charging Kit Caravan MPPT Charger Controller K4 Description

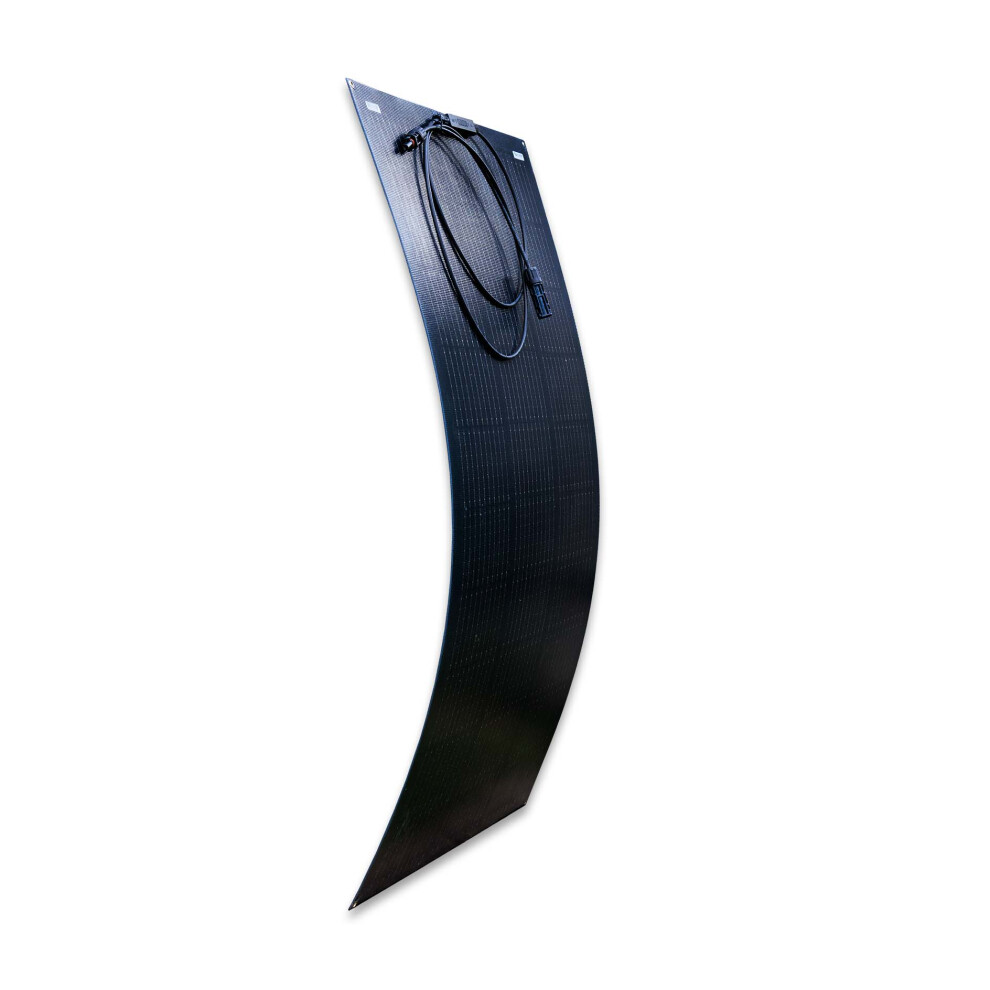

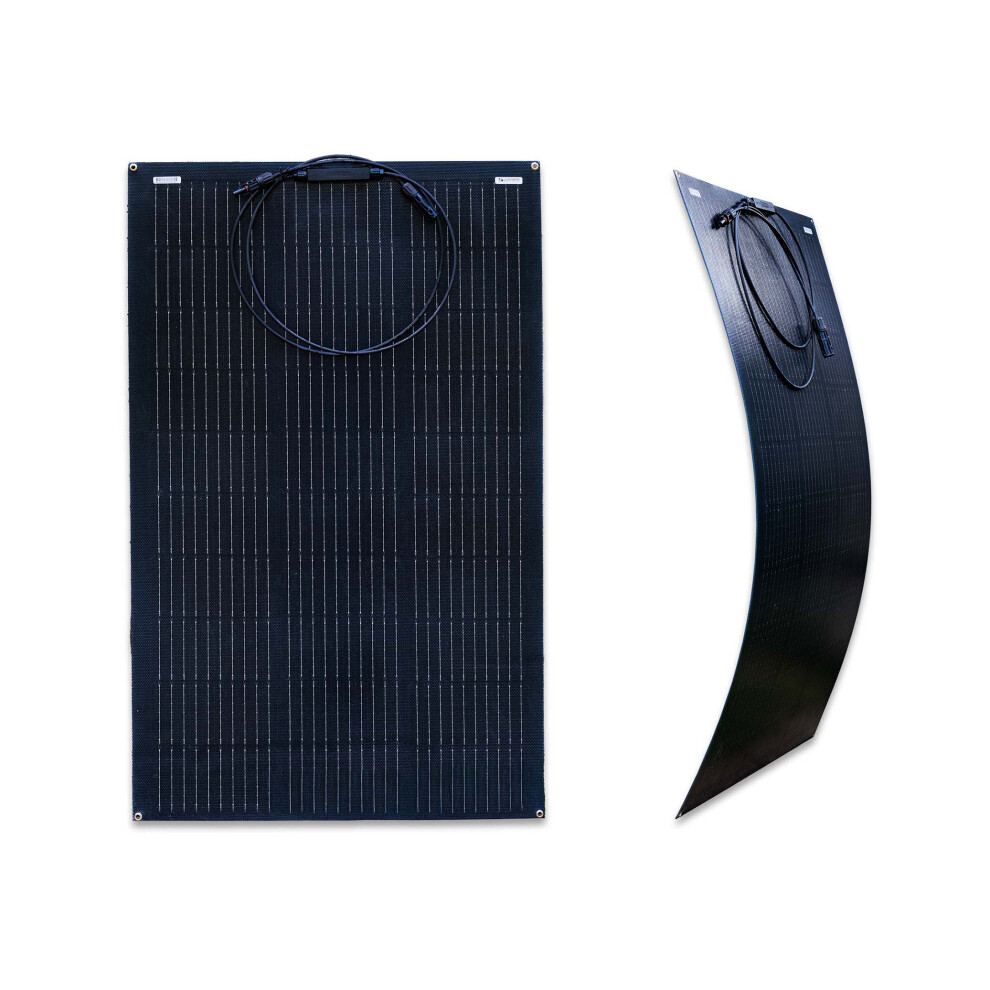

Lightweight design, laminated plastic sheet with flexible solar cells. This panel is only 4mm thick

Our flexible solar panels now include the far superior ETFE outer layer.  This is essential for the long life of your flexible solar panel.  The smooth shiny finish flexi panels are PET finish which can break down and peel off due to UV solar damage, often in less than 2 years'.  ETFE is a little more expensive during production but worth it in the long run.  It also has the benefit of slip resistance for marine applications

Designed in the UK. UKCA, TUV, ISO 9001 quality assurance.

These Monocrystalline panels are 2 to 4% more efficient than polycrystalline.

Why Go Solar?

Beat energy inflation, energy security, remote location power sources (save a fortune on armored cabling), mobile power sources, fast payback periods over conventional fuel sources such as diesel generation and hook-ups, keep batteries fully charged at all time as deep discharge shortens life, environmentally friendly power which reduces carbon emissions to slow global warming and climate change.

Monocrystalline

• purest silicone 16-20% efficiency
• performs better in lower light levels i.e. in overcast skies
• longest life with lowest rate of performance loss of only 0.36% per year, therefore a 100w panel would be around 91w after 25 years
• better heat tolerance, i.e. performs better on hot summer days

Applications

Laminated panel construction, suitable for marine usage, also includes water-tight solar connectors. Also for Boats, Caravans, Motorhomes, electric fencing, road/ path/ driveway illuminated signage, campsites, yurts, multi-panel off grid power source for small buildings, remote telecoms, mobile food outlets, and many more...

Independent Off-Grid Solar Power Source

One or more solar panels can be connected a battery bank and power inverter using a solar charge controller. You can therefore have a 240v power supply anywhere in the world without grid supply. Please see our solar power kits.

Technical

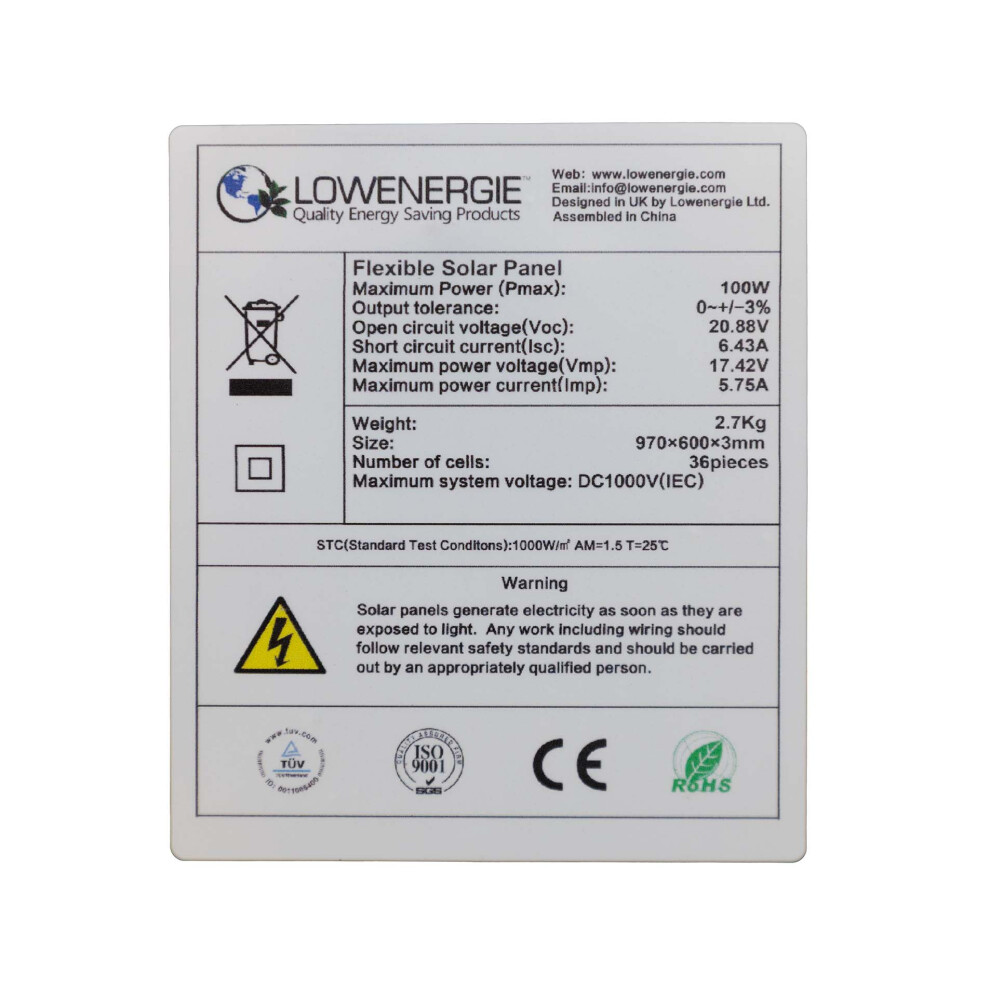

100 Watt Flexible

• Solar Module: Monocrystalline
• Max Power: 100w
• Max Power Voltage: 17.42V
• Max Power Current: 5.75A
• Open Circuit Voltage: 20.88V
• Open Circuit Current: 6.43A
• Number of cells: 36
• Weight: 2.7kg
• Size 670 x 600 x 3mm
• Max System Voltage: DC1000V

Technical - Tracer AN Series 1206AN

• Nominal System Voltage 12/24V Auto
• Battery Input Voltage Range 8V ~ 32V
• Max Charge/ Discharge Current 10A
• Max. PV Open Circuit Voltage 60V (At minimum operating environment temperature)
• Max. PV Open Circuit Voltage 46V (At 25 DegC  operating environment temperature)
• MPPT Voltage Range +2V ~ 36V
• Max Rated Charging Power (10A), 130W (12V), 260W (24V)
• Max. PV Array Input Power 195W (12V), 390W (24V)
• Wiring Connections, Solar +/-, Battery +/-, Power Output +/-, Temp Sensor, COM RJ45
• Working Environment Temperature Range - 25  to +45 DegC
• Humidity Range
