100w Mono Solar Panel Kit Battery Charging MPPT Controller Z Brackets with Mounting Brackets and Cables

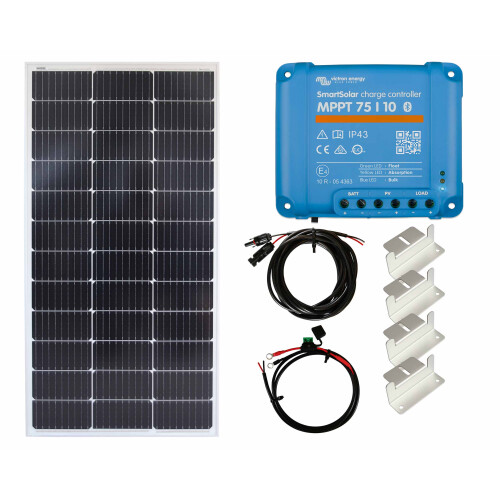

Solar Kit Contents:

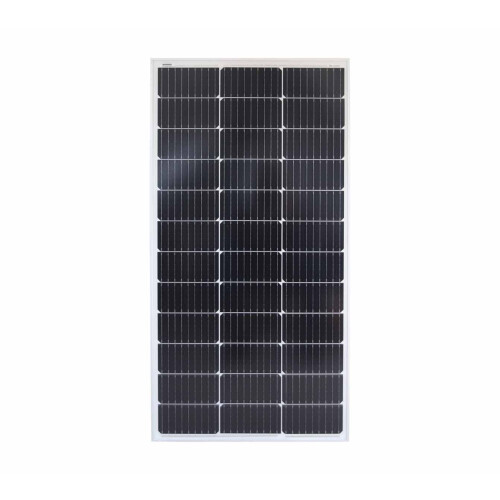

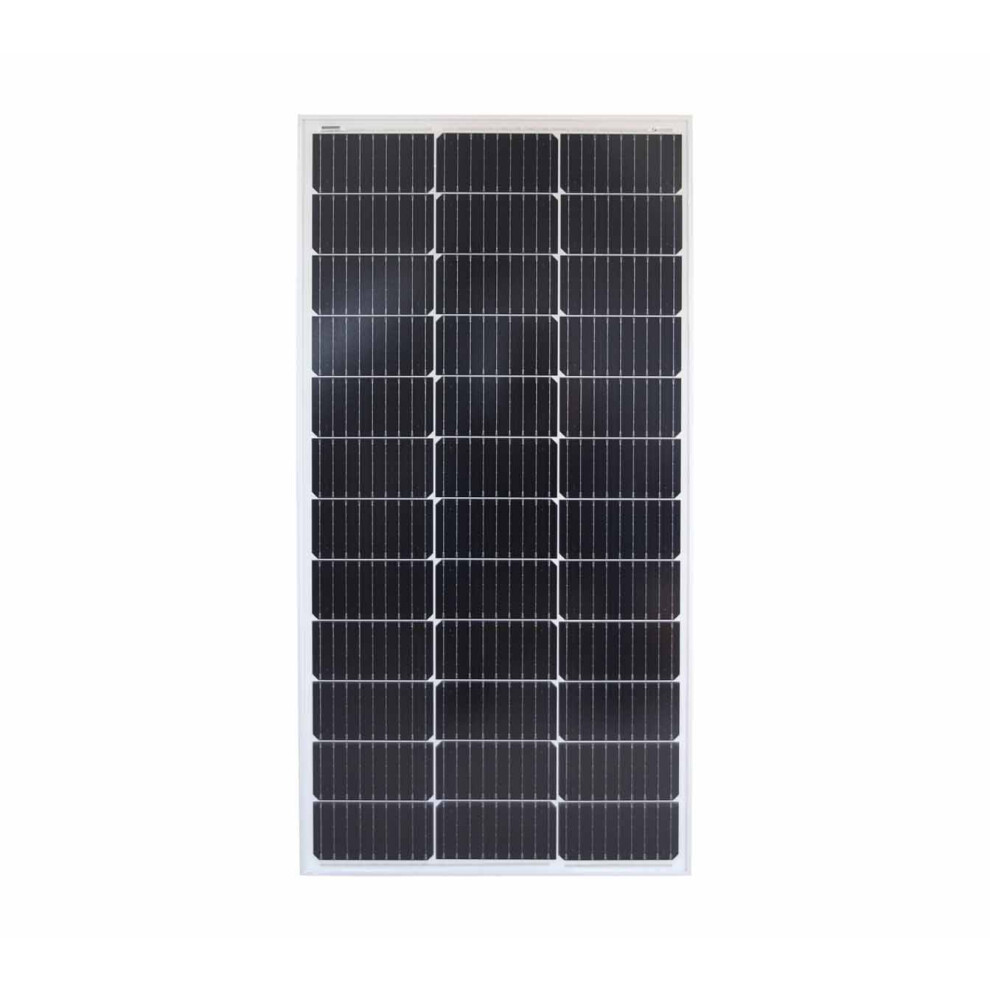

• 1 x 100w Mono Solar Panel by Lowenergie™
• 10A MPPT Smart Solar Charge Controller
• Solar PV to controller cable
• Battery to solar controller cable

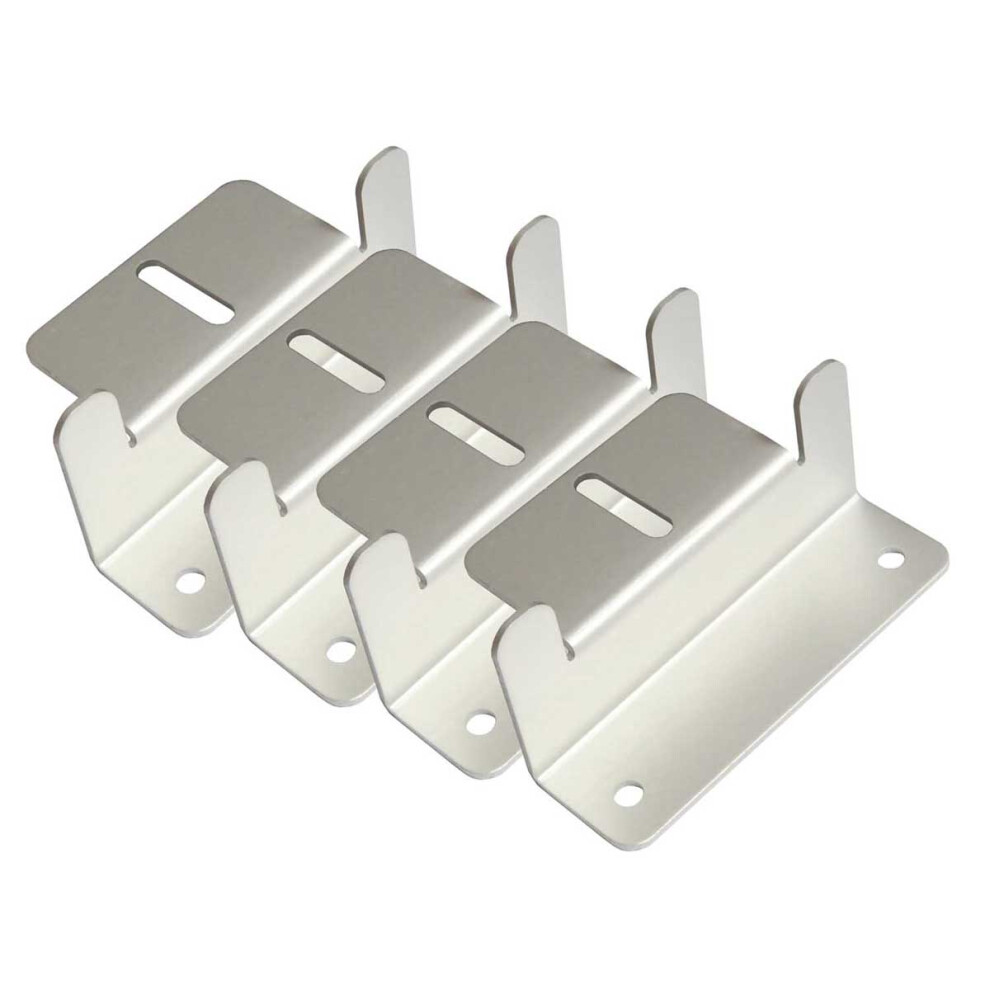

• 4 x Aluminium Mounting Brackets

Technical Specifications

100 Watt Solar Panel - (with 1m Cable & Solar Connector Plugs)

• Monocrystalline Solar Cells
• Max Power: 100w
• Max Power Voltage: 18.0v
• Max Current: 5.50A
• Open Circuit Voltage: 21.60v
• Short Circuit Current: 6.05A
• Weight: 7.8kg
• Size: 1060 x 540 x 30mm
• Maximum System Voltage: DC1000v
• Power Tolerance: ±3%

OUR NEW 9BB 100w Monocrystalline Solar Panels. These are our highest efficiency yet which now allows these panels to be slightly smaller and still generate the same power! 9BB means 9 silver conductor strips connect each row of silicone cells, which means higher efficiency in pulling every bit of power from all of the cells. The overall panel efficiency is now up from 18% to 21.2%.

SmartSolar Charge Controller MPPT 75/10

• Battery voltage (auto select) 12/24V
• Rated charge current 10A
• Nominal PV power, 12V 1a,b) 145W
• Nominal PV power, 24V 1a,b) 290W
• Max. PV short circuit current 2) 13A
• Automatic load disconnect Yes
• Max. PV open circuit voltage 75V
• Peak efficiency 98%
• Self-consumption 12V: 25 mA 24V: 15 mA
• Charge voltage ‘absorption' 14,4V / 28,8V (adjustable)
• Charge voltage ‘float' 13,8V / 27,6V (adjustable)
• Charge algorithm multi-stage adaptive
• Temperature compensation -16 mV / °C resp. -32 mV / °C
• Max. continuous load current 15A
• Low voltage load disconnect 11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm
• Low voltage load reconnect 13,1V / 26,2V / 52,4V or 14V / 28V / 56V or Battery Life algorithm
• Protection Output short circuit / Over temperature
• Operating temperature -30 to +60°C (full rated output up to 40°C)
• Humidity 95%, non-condensing
• Data communication port VE.Direct

Enclosure

• Colour Blue (RAL 5012)
• Power terminals 6 mm² / AWG10
• Protection category IP43 (electronic components), IP22 (connection area)
• Weight 0,5 kg
• Dimensions (h x w x d) 100 x 113 x 40 mm

Standards

• Safety EN/IEC 62109-1, UL 1741, CSA C22.2

1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5V for the controller to start.
Thereafter the minimum PV voltage is Vbat + 1V
2) A PV array with a higher short circuit current may damage the controller.

Solar controller to Battery Cable

• 1.5m, 2 Core 2.5mm2 AMC round profile cable, in-line fuse, 30A spade fuse M8 ring terminals.

All cabling carefully design to minimise voltage drops and maintain maximum system efficiency. TUV Approved

Solar Panel to Controller Cable

• 5m Twin core 2.5mm2 cable with male and female connectors to one end.

Solar Brackets:

• 4 x Aluminium Brackets

Product Warranties

• Solar Panel = 10 Year for materials and workmanship
• Charge Controller = 5 Year
• All other components have a 12 month warranty.
• Power Output Warranty is at least 90% maximum power for first 10 years of use and;
• Power Output Warranty of at least 80% maximum power output for up to 25 years use
