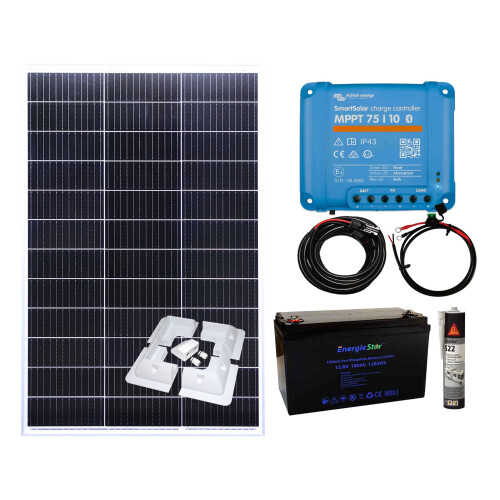

100w Mono Solar Panel Kit With 10A Victron Energy MPPT Smart Charge Controller, Lithium Battery

100w Mono Solar Panel Kit With 10A Victron Energy MPPT Smart Charge Controller, Lithium Battery Description

Solar Kit Contents:

• 1 x 100w Mono Solar Panel by Lowenergie™
• 10A MPPT Smart Solar Charge Controller by Victron Energy™
• Solar PV to controller cable
• Battery to solar controller cable
• 4 White ABS Corner mounting brackets
• 1 Twin cable entry
• 1 Tube Sikaflex
• 1 EnergieStor 100Ah Lithium Battery

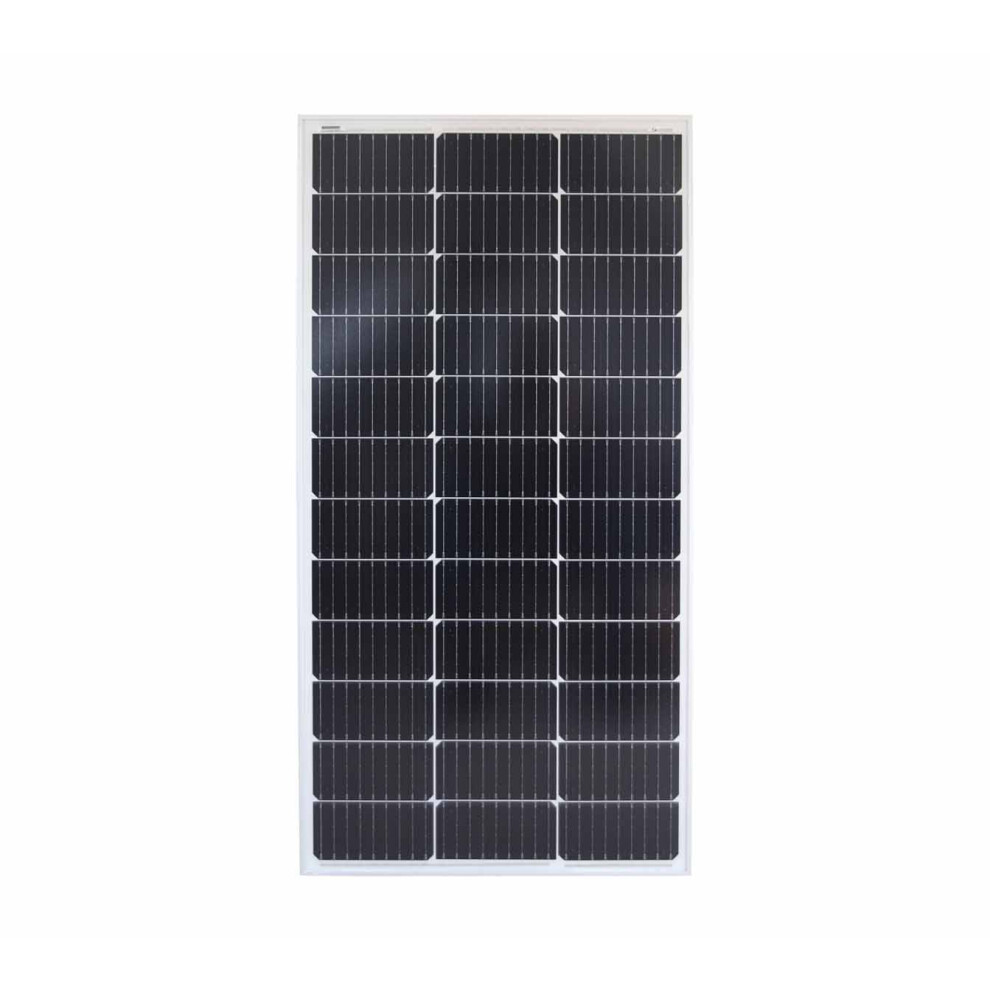

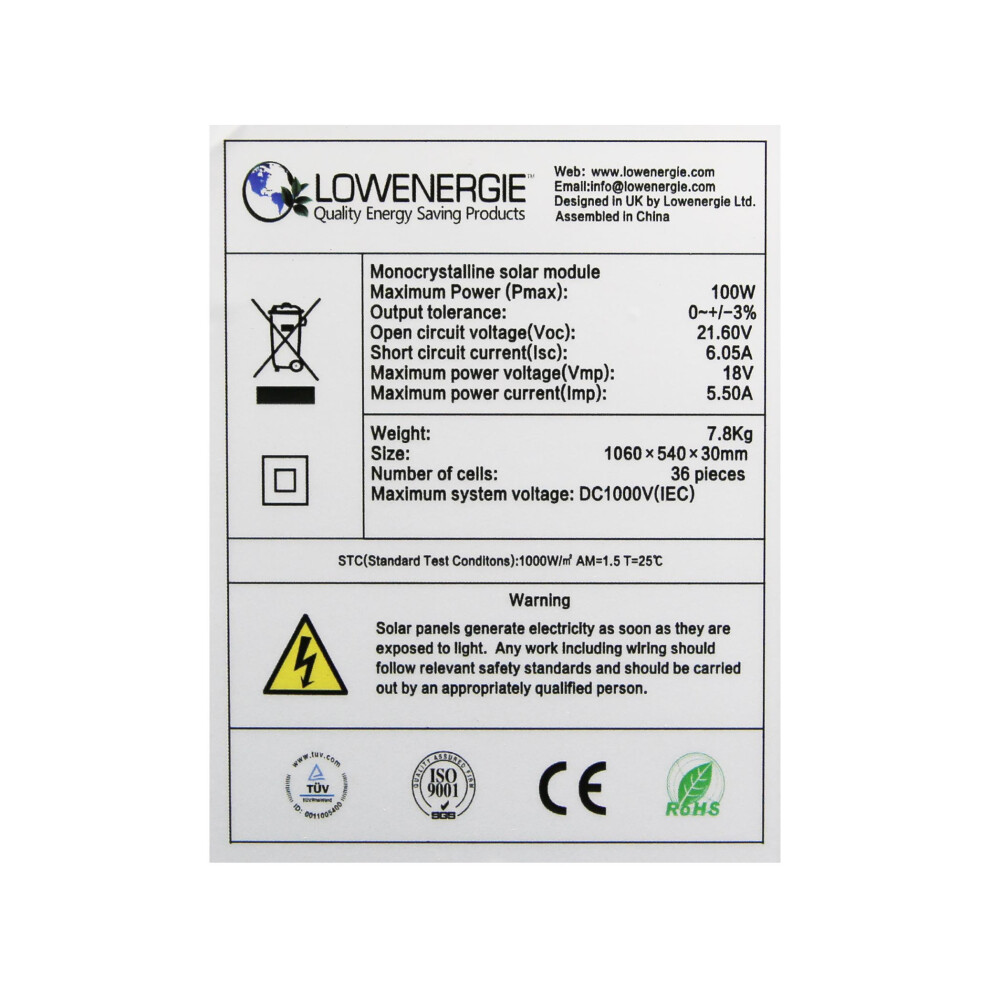

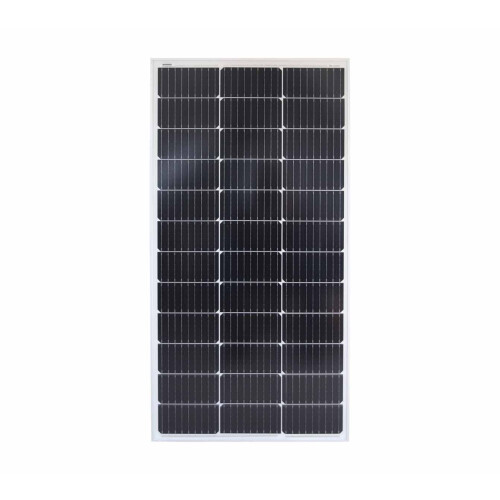

Technical Specifications – 100w Solar Panel

Half cut solar cells

Benefits of half cut solar cells compared to full solar cells. Full siliconesolar cells used to be square, sometimes with the corners cut off, but now the mainstream trend with all the big solar manufacturers is for half cut, small rectangular silicone cells, due to their higher efficiency.

Solar panel technology has moved on considerably in the last few years with the introduction of half cut solar cells which can provide 2 to 3% more efficiency and higher watts per square metre. This means that the same power solar panels used in the past can now be smaller. Alternatively, you can have bigger solar panels with much higher power output, but don't take up as much space.
This works by doubling the number of solar cells and increasing the number of ribbons, buzz bars which connect the siliconesolar cells together within the panel. This helps to lower resistance in the panel, which in turn reduces tiny voltage drops in the many panel connections to overall provide more power output. The smaller cells are also less likely to have microfracture issues and show improved cloudy day performance.

• Maximum Power (Pmax): 100W
• Maximum Power Voltage (VMP): 18V
• Maximum Power Current (IMP): 5.50A
• Open Circuit Voltage (VOC): 21.60V
• Short Circuit Current (ISC): 6.05A
• Weight: 7.8KG
• Size: 1060 x 540 x 30mm
• Cells: 36
• Power Tolerance: +/-3%
• Maximum System Voltage: DC1000V

OUR NEW 9BB 100w Monocrystalline Solar Panels. These are our highest efficiency yet which now allows these panels to be slightly smaller and still generate the same power! 9BB means 9 silver conductor strips connect each row of silicone cells, which means higher efficiency in pulling every bit of power from all of the cells. The overall panel efficiency is now up from 18% to 21.2%.

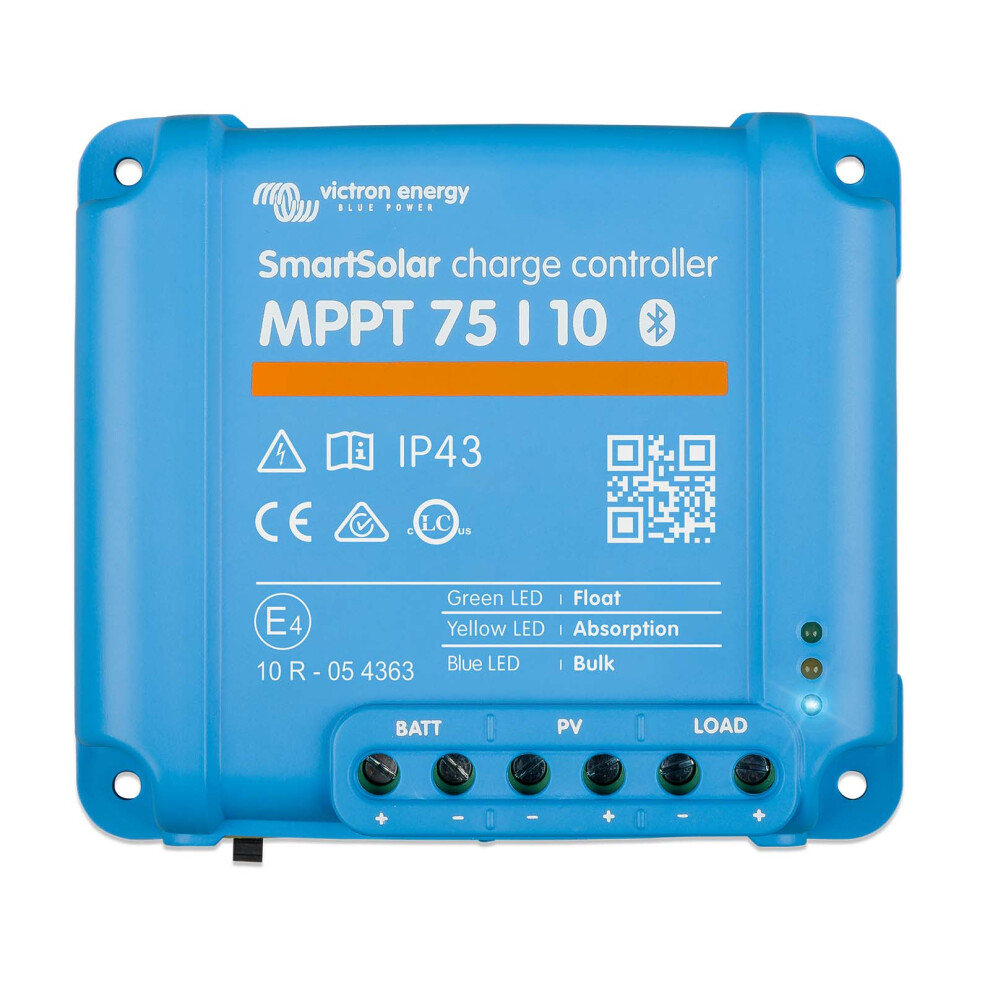

SmartSolar Charge Controller MPPT 75/10

• Battery voltage (auto select) 12/24V
• Rated charge current 10A
• Nominal PV power, 12V 1a,b) 145W
• Nominal PV power, 24V 1a,b) 290W
• Max. PV short circuit current 2) 13A
• Automatic load disconnect Yes
• Max. PV open circuit voltage 75V
• Peak efficiency 98%
• Self-consumption 12V: 25 mA 24V: 15 mA
• Charge voltage ‘absorption' 14,4V / 28,8V (adjustable)
• Charge voltage ‘float' 13,8V / 27,6V (adjustable)
• Charge algorithm multi-stage adaptive
• Temperature compensation -16 mV / °C resp. -32 mV / °C
• Max. continuous load current 15A
• Low voltage load disconnect 11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm
• Low voltage load reconnect 13,1V / 26,2V / 52,4V or 14V / 28V / 56V or Battery Life algorithm
• Protection Output short circuit / Over temperature
• Operating temperature -30 to +60°C (full rated output up to 40°C)
• Humidity 95%, non-condensing
• Data communication port VE.Direct

Enclosure

Colour Blue (RAL 5012)
Power terminals 6 mm² / AWG10
Protection category IP43 (electronic components), IP22 (connection area)
Weight 0,5 kg
Dimensions (h x w x d) 100 x 113 x 40 mm

Standards

Safety EN/IEC 62109-1, UL 1741, CSA C22.2

1a) If more PV power is connected, the controller will limit input power.

1b) The PV voltage must exceed Vbat + 5V for the controller to start.

Thereafter the minimum PV voltage is Vbat + 1V

2) A PV array with a higher short circuit current may damage the controller.

Victron Energy are a Dutch company who lead in the field of off-grid solar products.

Solar controller to Battery Cable

1.5m, 2 Core 2.5mm2 AMC round profile cable, in-line fuse, 30A spade fuse M8 ring terminals.

All cabling carefully design to minimise voltage drops and maintain maximum system efficiency. TUV Approved

Solar Panel to Controller Cable

5m Twin core 2.5mm2 cable with male and female connectors to one end.

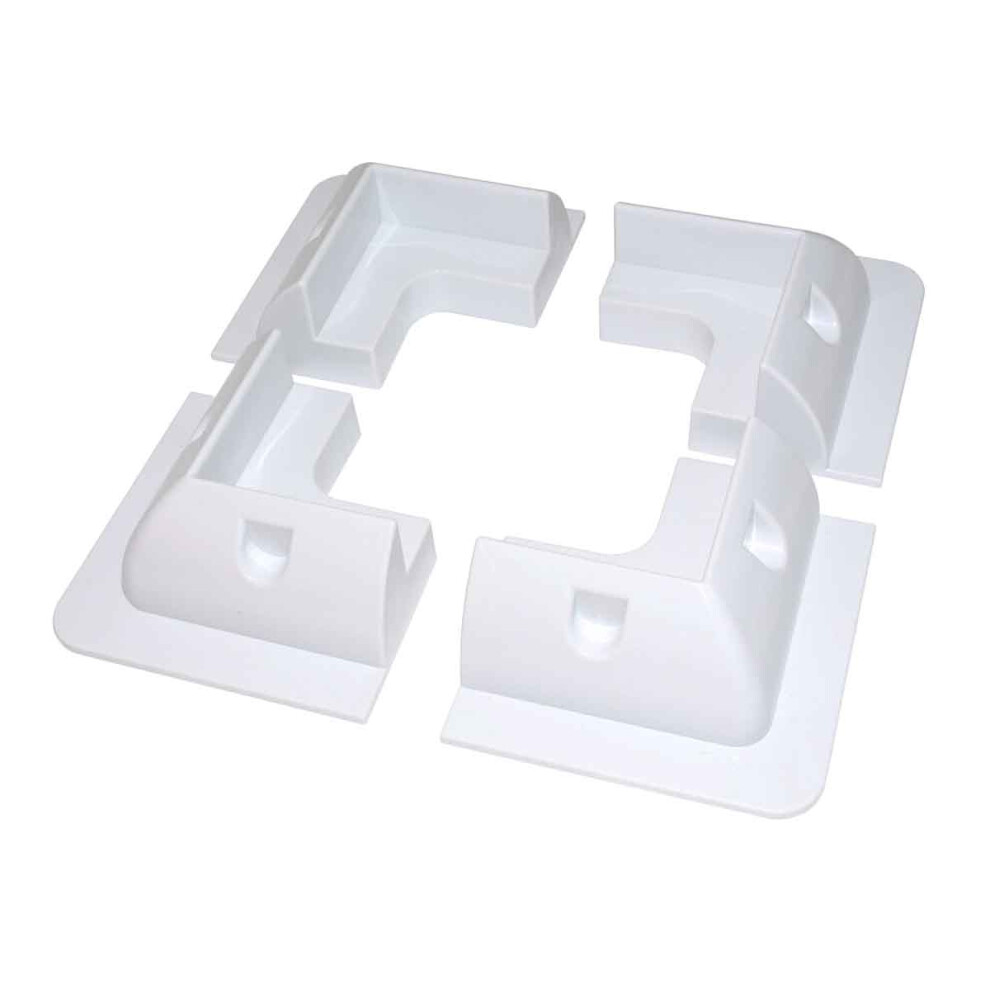

Solar Brackets:

• ABS
• 4 Corners
• White
• Size per bracket 15x15x 6.5cm.
• Weight (4 brackets) 1.6kg

Easy Installation, holes should be drilled in each bracket, and corresponding holes in the solar panel frame on each side; then brackets should be fixed to the solar panel using self-tapping screws (not included).

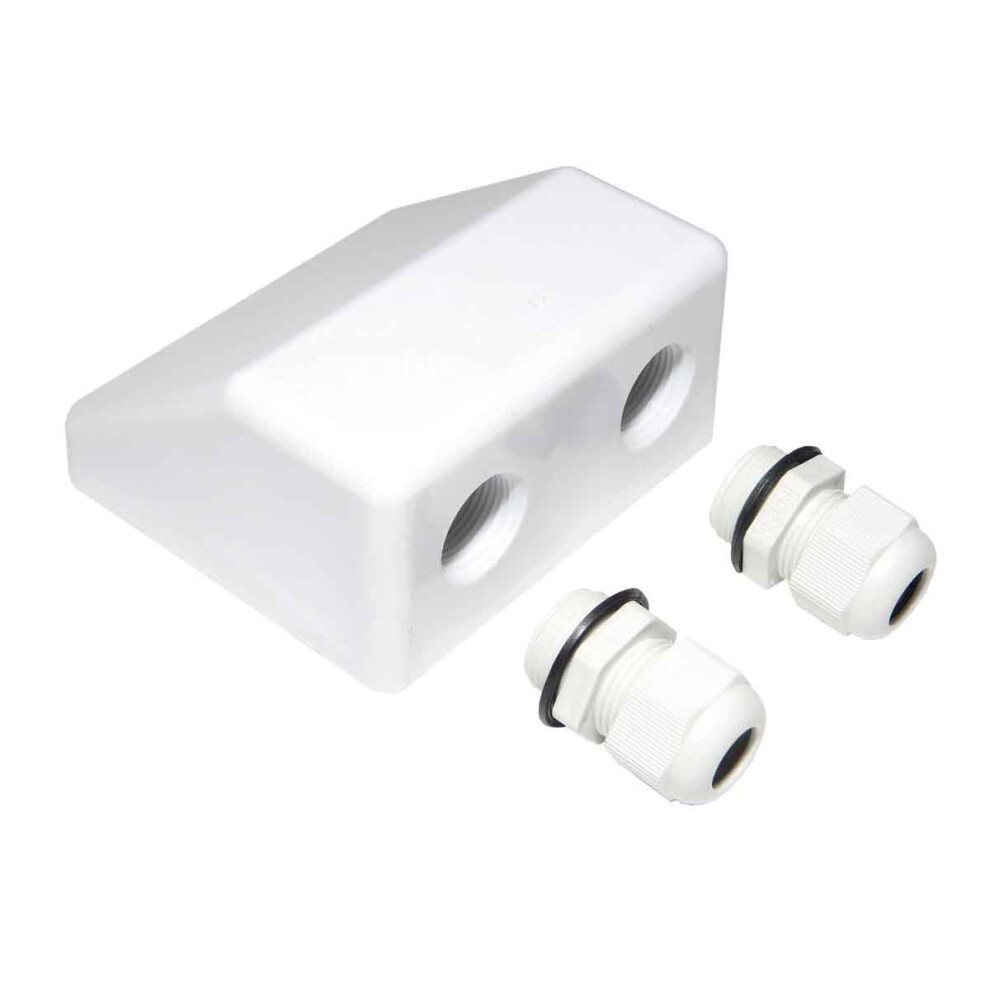

Cable Entry

• ABS
• Twin cable entry for 4-12mm cables
• White
• Watertight
• Size: 12x10x5cm

EnergieStor 100 Ah 12V Lithium LiFePO4 Battery

• Rated Capacity 100 (Ah)
• Watt Hours Capacity 1280 (Wh)
• Max Continuous Discharging Current 100A
• Max. Peak Discharging Current for only 3-5 Seconds 200A
• Max Charge Current 50A
• Dimensions L x W x H1 x H2 (h2 with terminals) 340 x 185 x 217 x 225mm
• Weight 9.86Kg
• Nominal Voltage 12.8V; typical voltage range 12.5 to 13.2V, Max Charge Voltage – 14.6-14.8V; Discharge Cut Off Voltage 10V triggered by BMS to protect lithium cells.
• BMS, internal Battery Management System – Over-Charge, Over-Discharge, Overcurrent and Short Circuit Protection
• Temperatures – Storage & Charging 0 to +45 deg C; discharging – -20 to +60 deg C
• Cycles –  5000 cycles @50% depth of discharge, 2500 cycles at full discharge if working hard, after this, 80% capacity will still remain.
• Outer Package – Strong ABS Plastic Case
• Design Lifespan – 15 to 20 Years

Product Warranties

• Solar Panel = 10 Year for materials and workmanship
• Charge Controller = 5 Year Victron Energy
• All other components have a 12 month warranty.
• Power Output Warranty is at least 90% maximum power for first 10 years of use and;
• Power Output Warranty of at least 80% maximum power output for up to 25 years use
