150/1000W Solar Panel Generator Kit With MPPT Charge Controller

150/1000W Solar Panel Generator Kit With MPPT Charge Controller Description

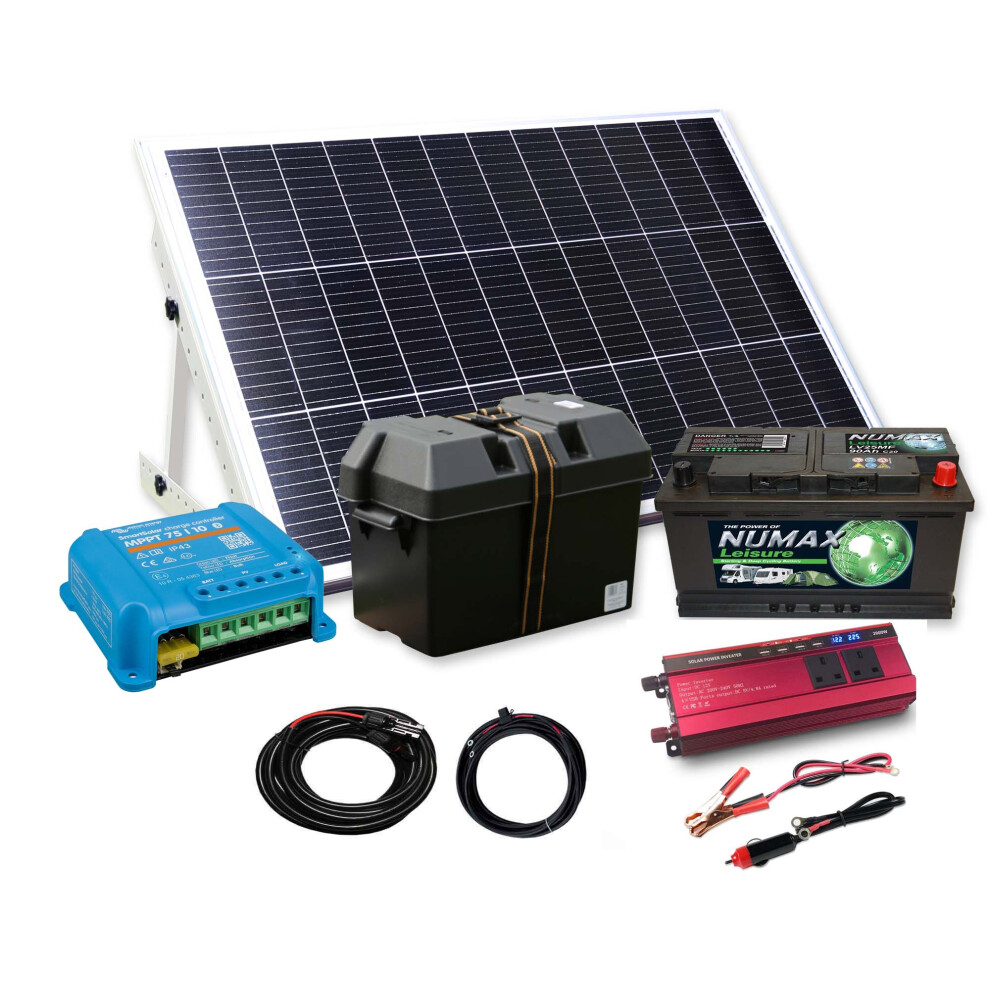

Kit Contents

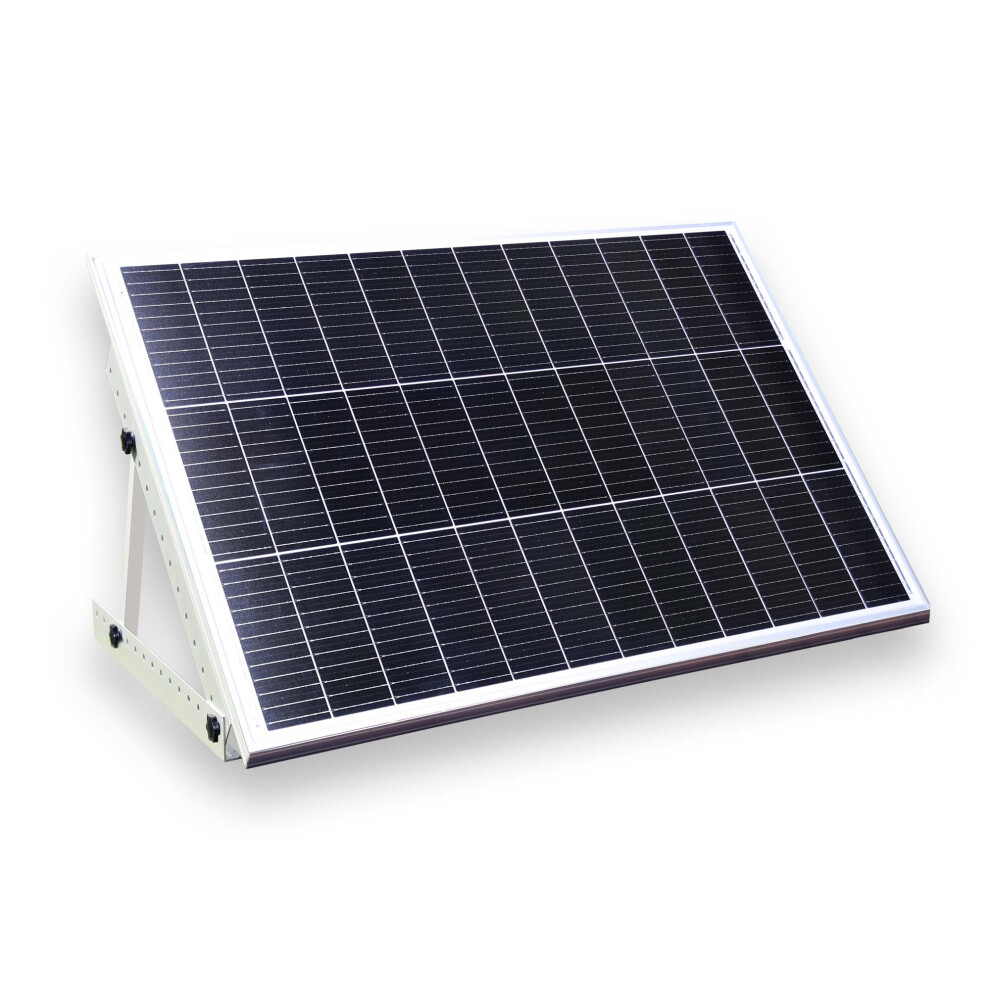

• 150w Solar Monocrystalline Panel with Solar Connectors plugs
• Multi angle position aluminium solar panel mounting rack

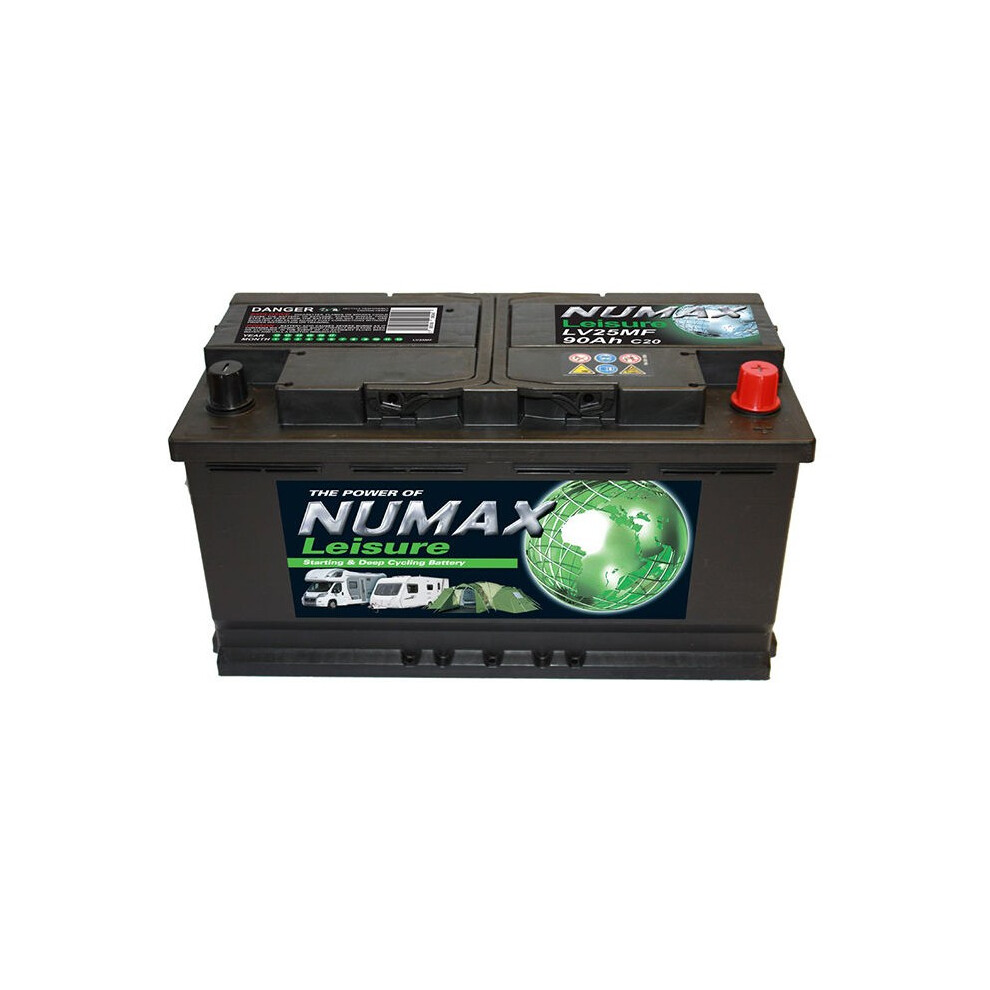

• 100Ah deep cycle wet lead acid battery (brand subject to change)

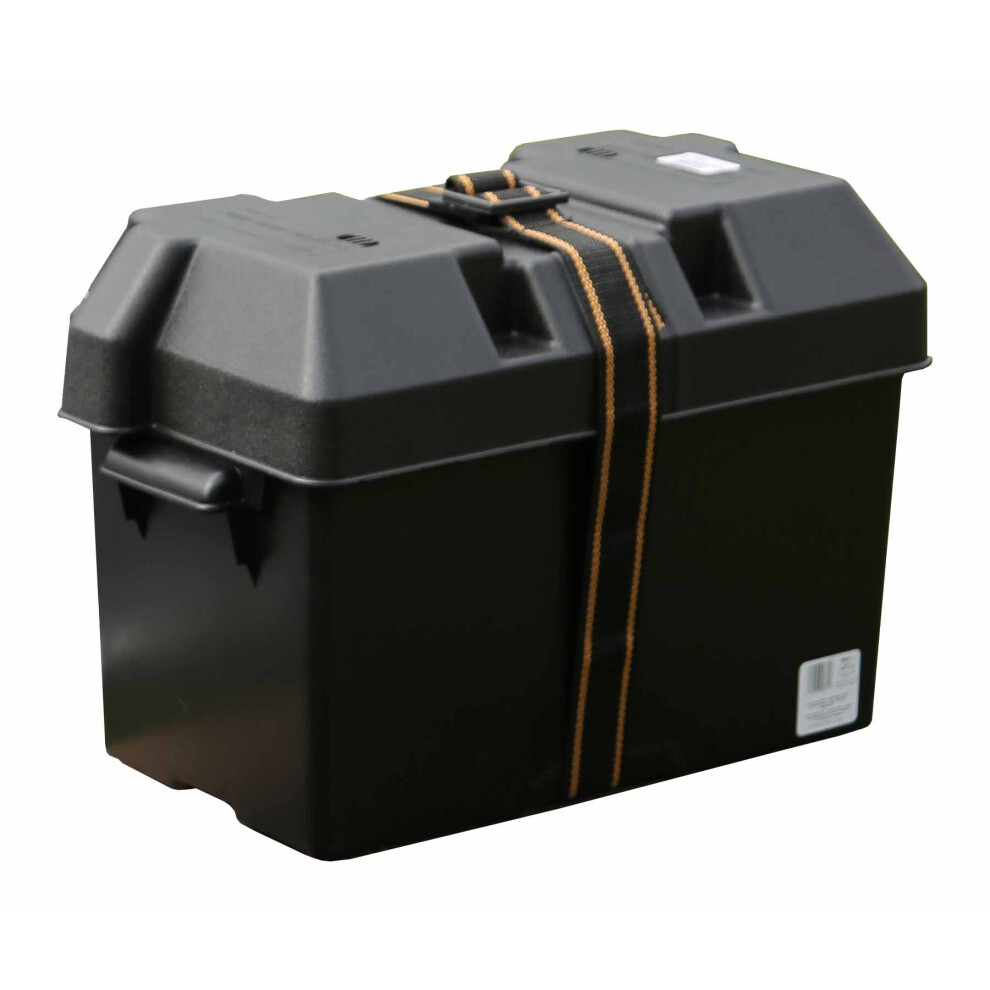

• All weather battery box
• 10A Smart MPPT Solar charge controller
• 1000w Inverter
• 5M Solar power cable with Solar Connectors plugs
• 2M fuse battery connection cable with crocodile clips

Why Go Solar?

Beat energy inflation, energy security, remote location power sources (save a fortune on armoured cabling), mobile power sources, fast payback periods over conventional fuel sources such as diesel generation and hook-ups, keep batteries fully charged at all time as deep discharge shortens life, environmentally friendly power which reduces carbon emissions to slow global warming and climate change. Have your own independent Off-Grid Solar Power Source

Solar Panels do still generate power during cloudy and rainy weather

We have a rough guide below to solar panel power output relative to weather conditions:-

100% power output - clear sky midday sun with the panel fully tilted toward the sun's position in the sky.

75-85% output - clear sky midday sun but with the panel laid flat

50-65% output - thin cloud, or intermittent small clouds

10-20% output - midday overcast sky or rainy conditions

Technical

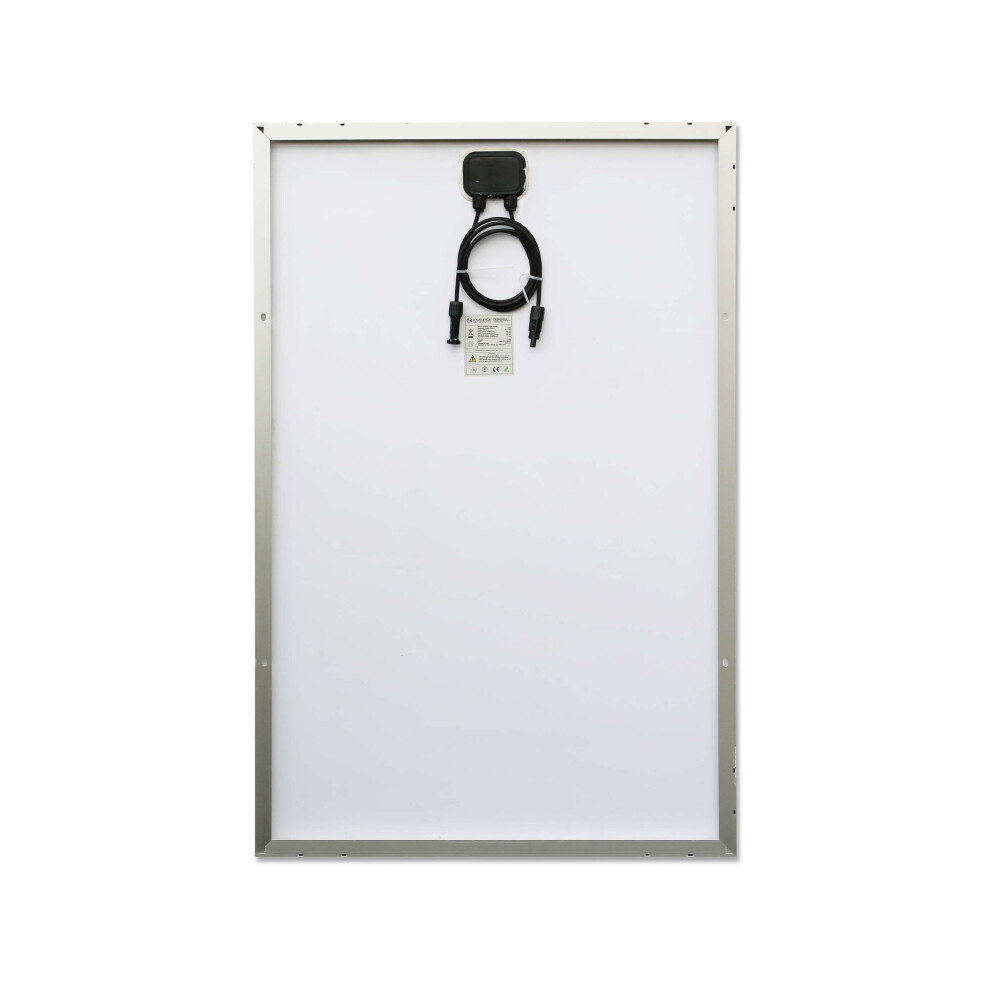

Solar Panel

• Maximum power - 150w
• Maximum power voltage (Vmp) - 20.16V
• Maximum power current (Imp) - 7.45A
• Open Circuit voltage (Voc) - 24.19V
• Short Circuit Current (Isc) - 8.05A
• Weight 7.2Kg
• Size 1060 x 670 x 30mm
• Number of cells: 36 pieces
• Power tolerance +/- 3%

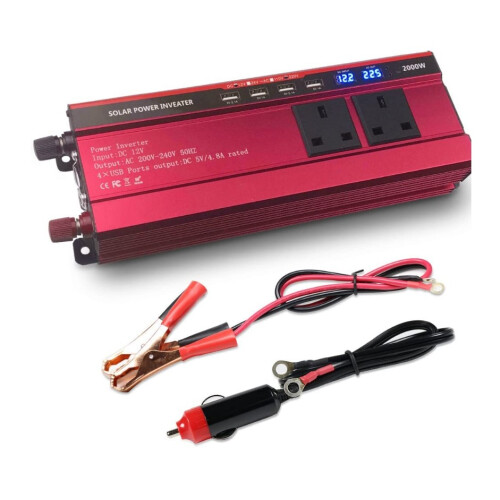

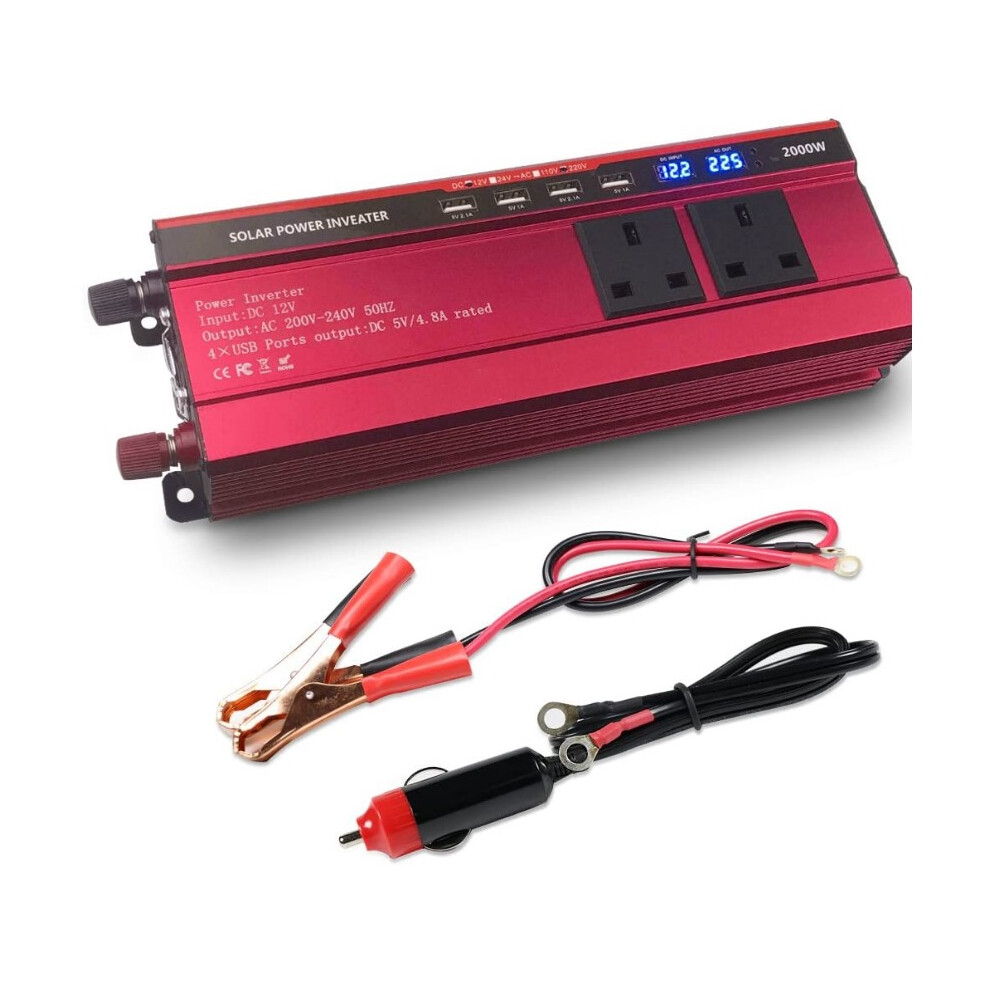

Inverter

• Rated Power: Rated 1000W, 1200W Max Continuous. Peak Power: 2400W
• Input Voltage: DC 11-15V,
• Output Voltage: 230VAC±5%/50HZ ±3HZ
• Low voltage protection: DC 10-10.5V
• Over Voltage Protection: DC 15-16V
• Working Temperature: -10℃~40℃
• AC Outlet Standard: UK

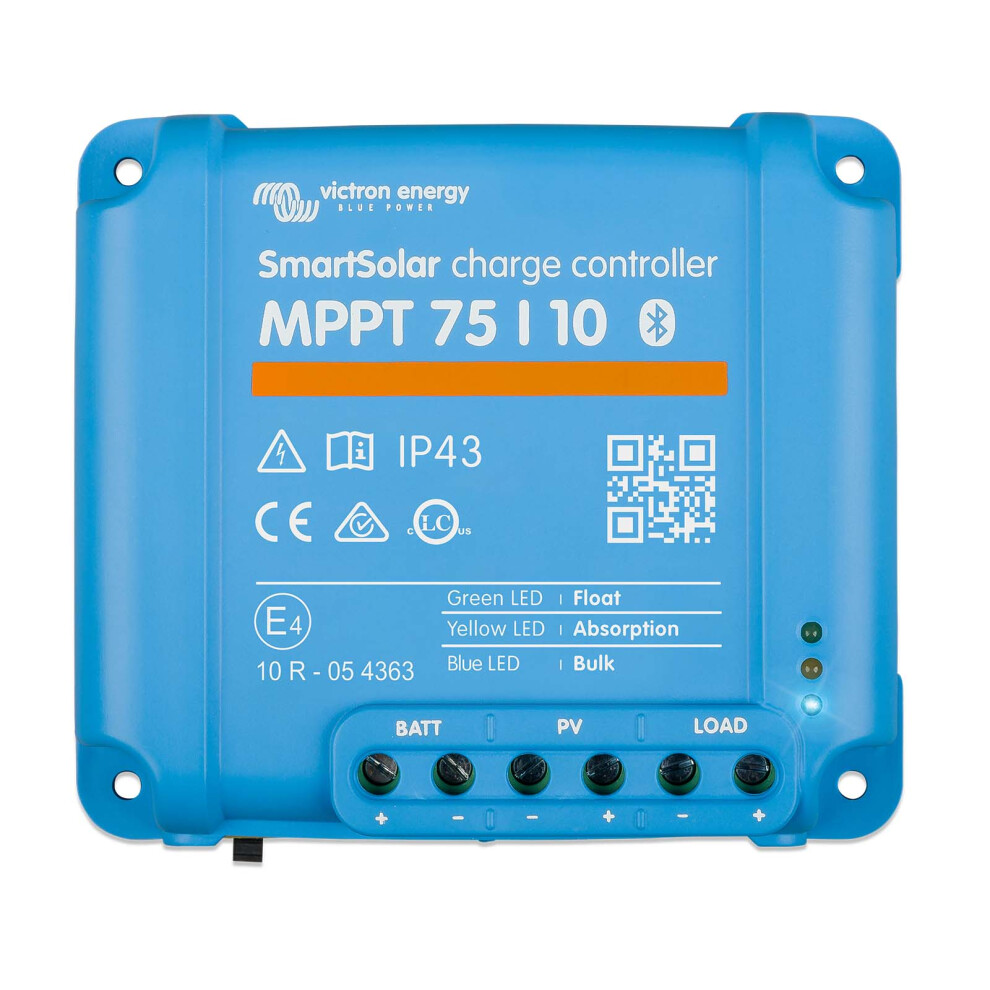

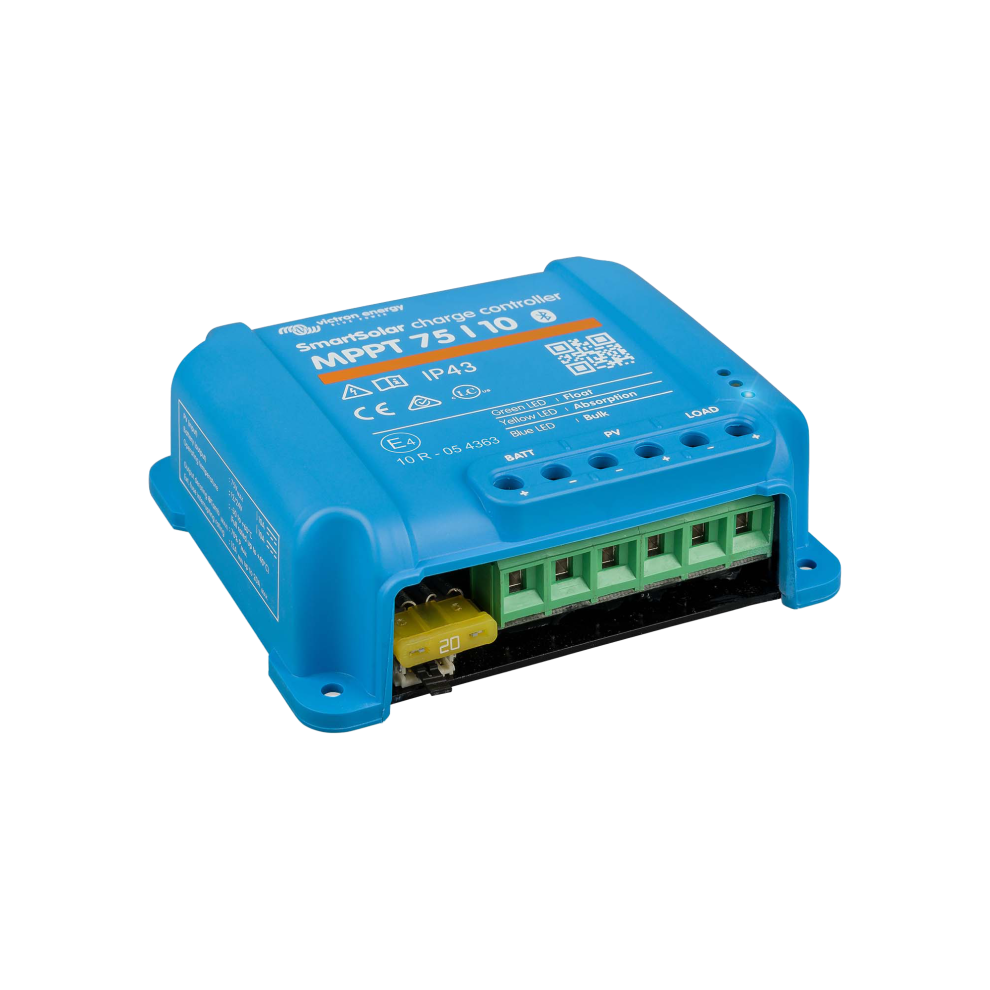

SmartSolar Charge Controller MPPT 75/10

• Battery voltage (auto select) 12/24V
• Rated charge current 10A
• Nominal PV power, 12V 1a,b) 145W
• Nominal PV power, 24V 1a,b) 290W
• Max. PV short circuit current 2) 13A
• Automatic load disconnect Yes
• Max. PV open circuit voltage 75V
• Peak efficiency 98%
• Self-consumption 12V: 25 mA 24V: 15 mA
• Charge voltage ‘absorption’ 14,4V / 28,8V (adjustable)
• Charge voltage ‘float’ 13,8V / 27,6V (adjustable)
• Charge algorithm multi-stage adaptive
• Temperature compensation -16 mV / °C resp. -32 mV / °C
• Max. continuous load current 15A
• Low voltage load disconnect 11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm
• Low voltage load reconnect 13,1V / 26,2V / 52,4V or 14V / 28V / 56V or Battery Life algorithm
• Protection Output short circuit / Over temperature
• Operating temperature -30 to +60°C (full rated output up to 40°C)
• Humidity 95%, non-condensing
• Data communication port VE.Direct

Enclosure

• Colour Blue (RAL 5012)
• Power terminals 6 mm² / AWG10
• Protection category IP43 (electronic components), IP22 (connection area)
• Weight 0,5 kg
• Dimensions (h x w x d) 100 x 113 x 40 mm

Product Warranties

• Lowenergie Solar Panels have a 10 Year Warranty for materials and workmanship.
• Power Output Warranty is at least 90% maximum power for first 10 years of use and;
• Power Output Warranty of at least 80% maximum power output for up to 25 years use
• Inverter - Manufacturers warranty (12 months)
• Battery Life - dependant of depth of discharge and number of full/partial discharges, can be anything from 6 months to 7 or 8 years
• Charge Controller - Victron Energy 5 Year warranty

Warning: The Charge Connection Order Below must be followed

1. Battery Cable
2. Load Cable
3. Solar Panel Cable

Do not install the charge controller in a sealed enclosure where battery gases can accumulate.

The charge controller can be used with one or more 12V batteries where additional storage capacity may be needed.
