150w Mono Solar Panel Kit Battery Charging MPPT Controller Z-Brackets with Mounting Brackets and Cables

150w Mono Solar Panel Kit Battery Charging MPPT Controller Z-Brackets with Mounting Brackets and Cables Description

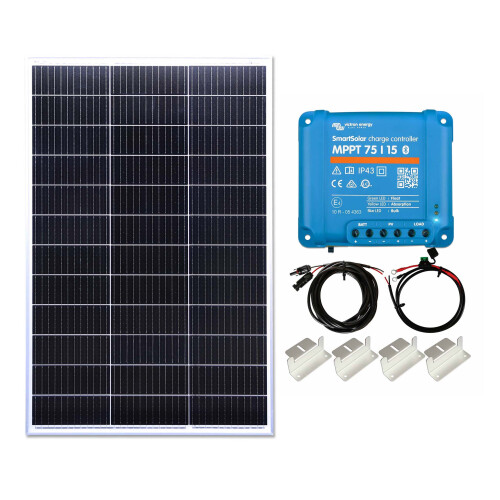

Solar Kit Contents:

• 1 x 150w Mono Solar Panel by Lowenergie™
• 15A Smart MPPT Charge Controller
• Solar PV to controller cable
• Battery to solar controller cable
• 4 Aluminium Mounting Brackets

Technical Specifications

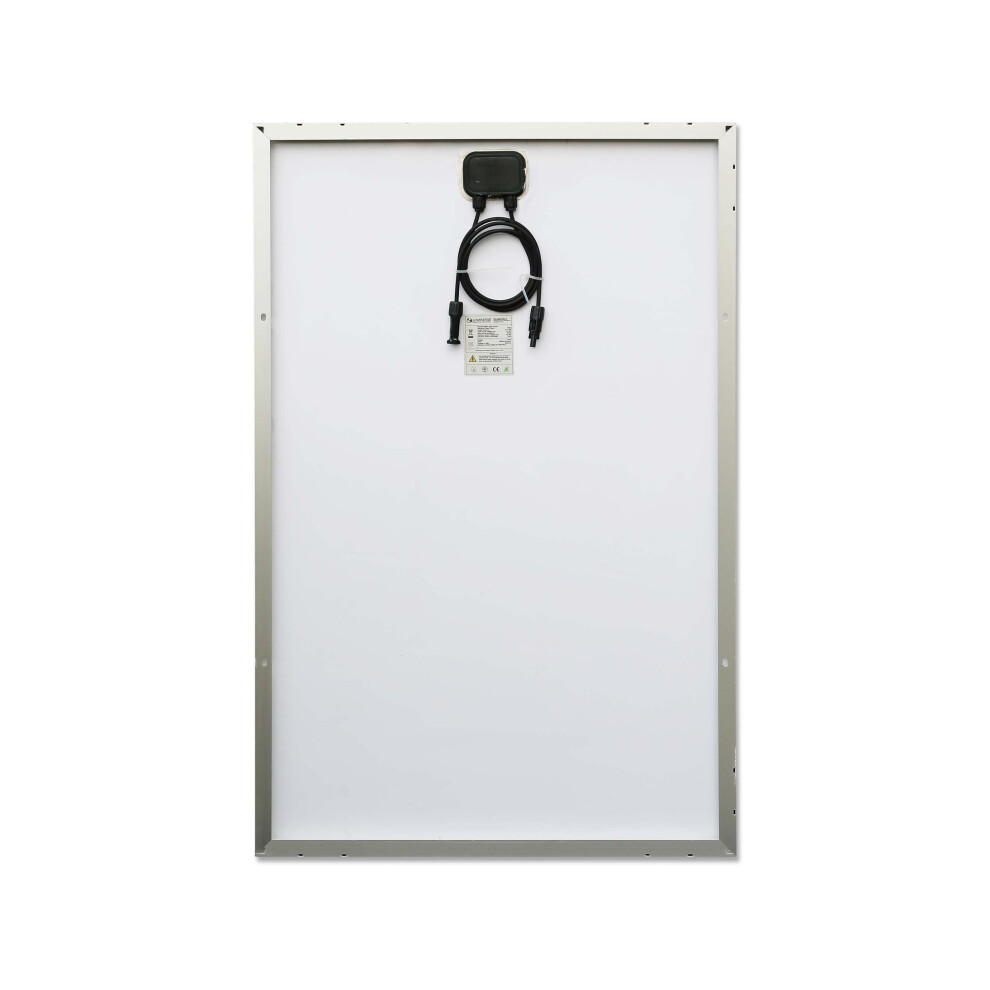

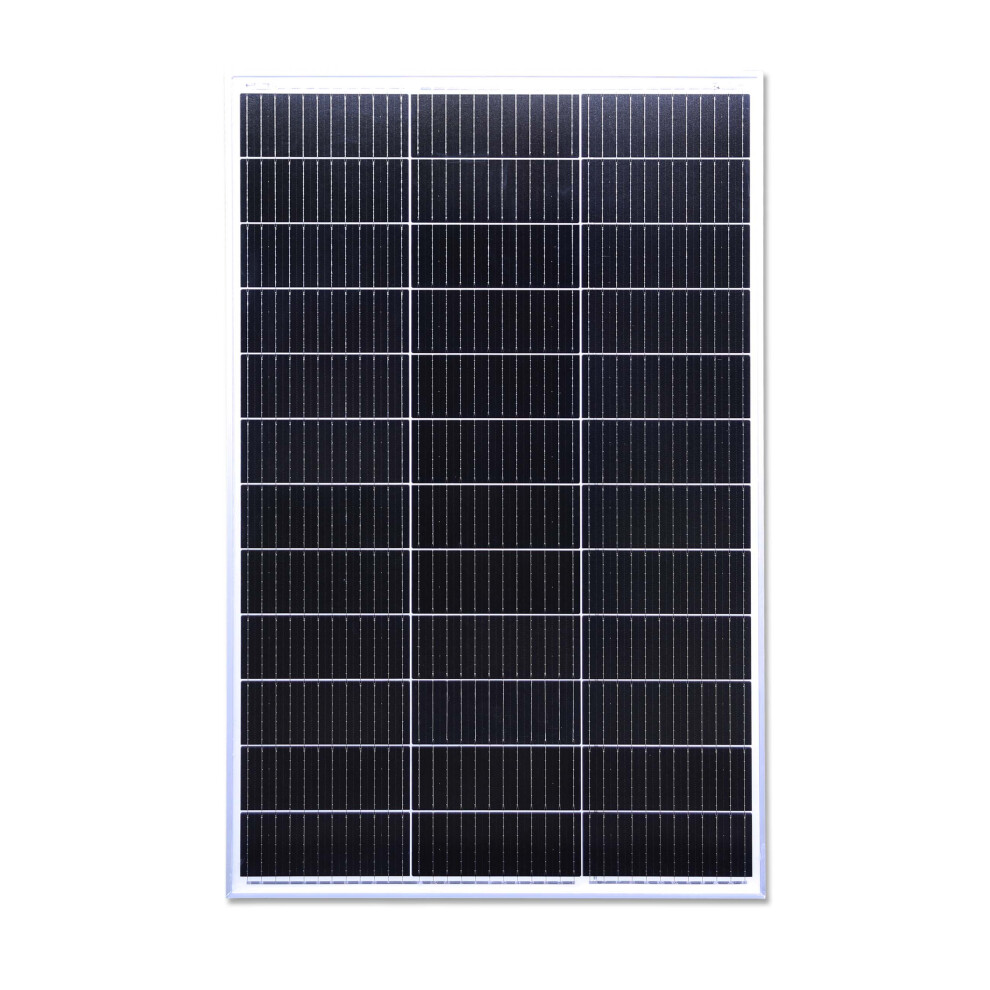

150-Watt Solar Panel (with 1m Cable & MC4 Connector Plugs)

Maximum Power (Pmax): 150W

Maximum Power Voltage (VMP): 20.16V

Maximum Power Current (IMP): 7.45A

Open Circuit Voltage (VOC): 24.19V

Short Circuit Current (ISC): 8.05A

Weight: 7.2KG

Size: 1060 x 670 x 30mm

Power Tolerance: +/-3%

Maximum System Voltage: DC1000V

Number of cells: 36

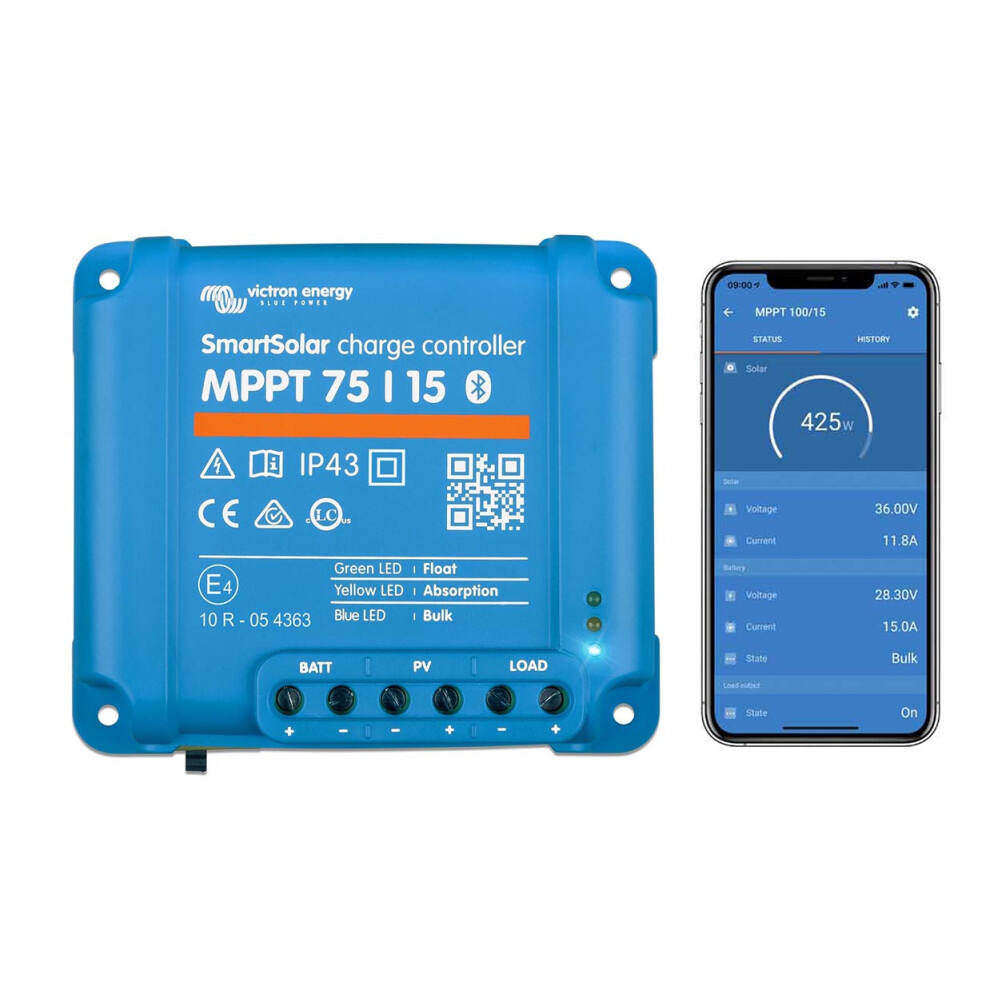

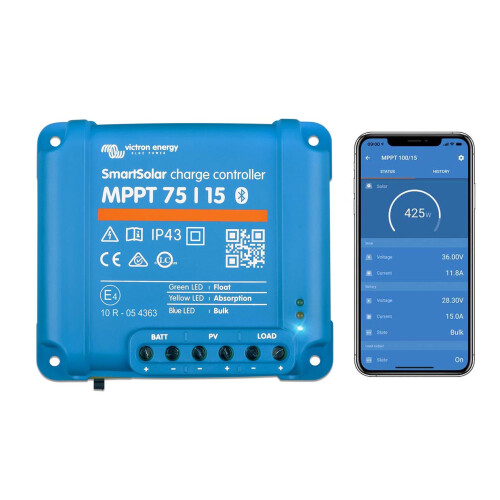

SmartSolar Charge Controller MPPT 75/15

• Battery voltage (auto select) 12/24V
• Rated charge current 15A
• Nominal PV power, 12V 1a,b) 220W
• Nominal PV power, 24V 1a,b) 440W
• Max. PV short circuit current 2) 15A
• Automatic load disconnect Yes
• Max. PV open circuit voltage 75V
• Peak efficiency 98%
• Self-consumption – load on 12V: 19 mA 24V: 16 mA
• Self-consumption – load off 12V: 10 mA 24V: 8 mA
• Charge voltage ‘absorption' 14,4V / 28,8V (adjustable)
• Charge voltage ‘float' 13,8V / 27,6V (adjustable)
• Charge algorithm multi-stage adaptive
• Temperature compensation -16 mV / °C resp. -32 mV / °C
• Max. continuous load current 15A
• Low voltage load disconnect 11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm
• Low voltage load reconnect 13,1V / 26,2V / 52,4V or 14V / 28V / 56V or Battery Life algorithm
• Protection Output short circuit / Over temperature
• Operating temperature -30 to +60°C (full rated output up to 40°C)
• Humidity 95%, non-condensing
• Data communication port VE.Direct (see the data communication white paper on VE website)

ENCLOSURE

• Colour Blue (RAL 5012)
• Power terminals 6 mm² / AWG10
• Protection category IP43 (electronic components), IP22 (connection area)
• Weight 0,5 kg
• Dimensions (h x w x d) 100 x 113 x 40 mm

STANDARDS
Safety EN/IEC 62109-1, UL 1741, CSA C22.2

1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5V for the controller to start.
Thereafter the minimum PV voltage is Vbat + 1V
2) A PV array with a higher short circuit current may damage the controller

Solar Panels to Controller Cable

5m Twin core 2.5mm2 cable with male and female connectors to one end.

Solar controller to Battery Cable

1.5m, 2 Core 2.5mm2 AMC round profile cable, in-line fuse, 30A spade fuse M8 ring terminals.

All cabling carefully design to minimise voltage drops and maintain maximum system efficiency. TUV Approved

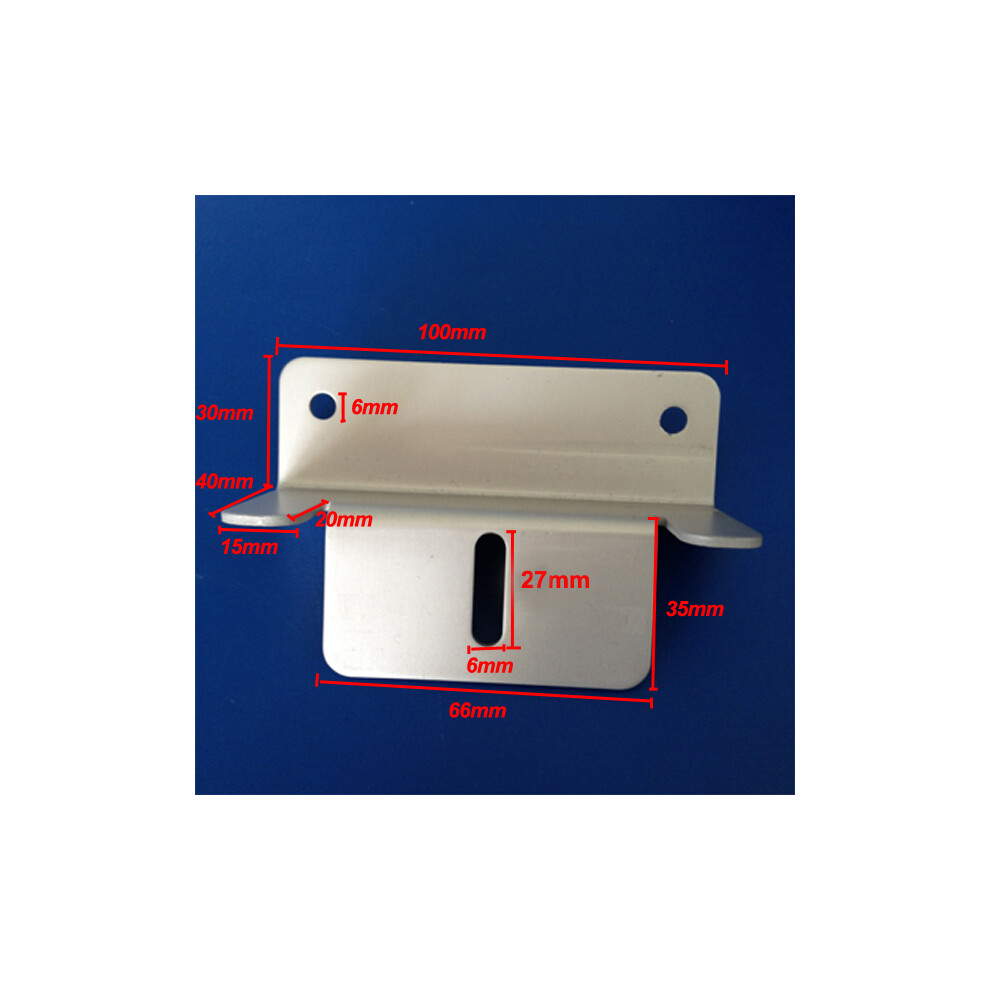

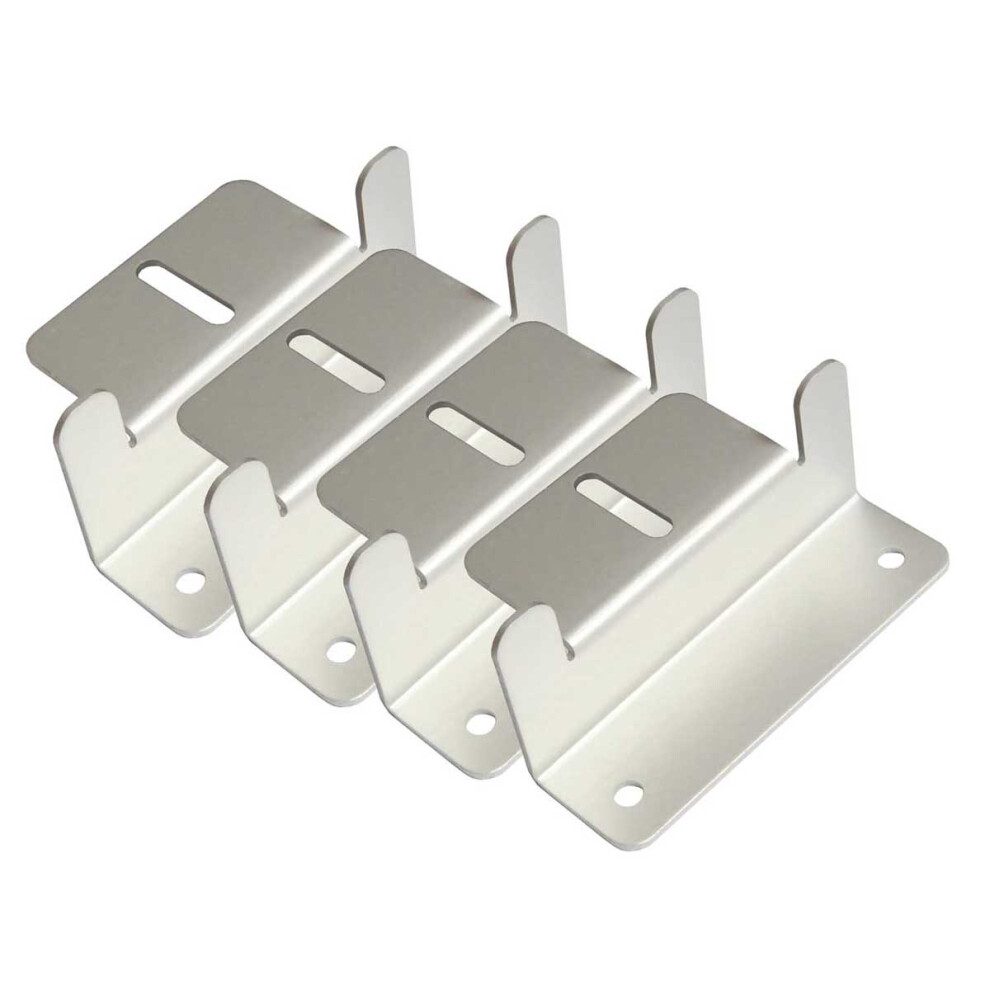

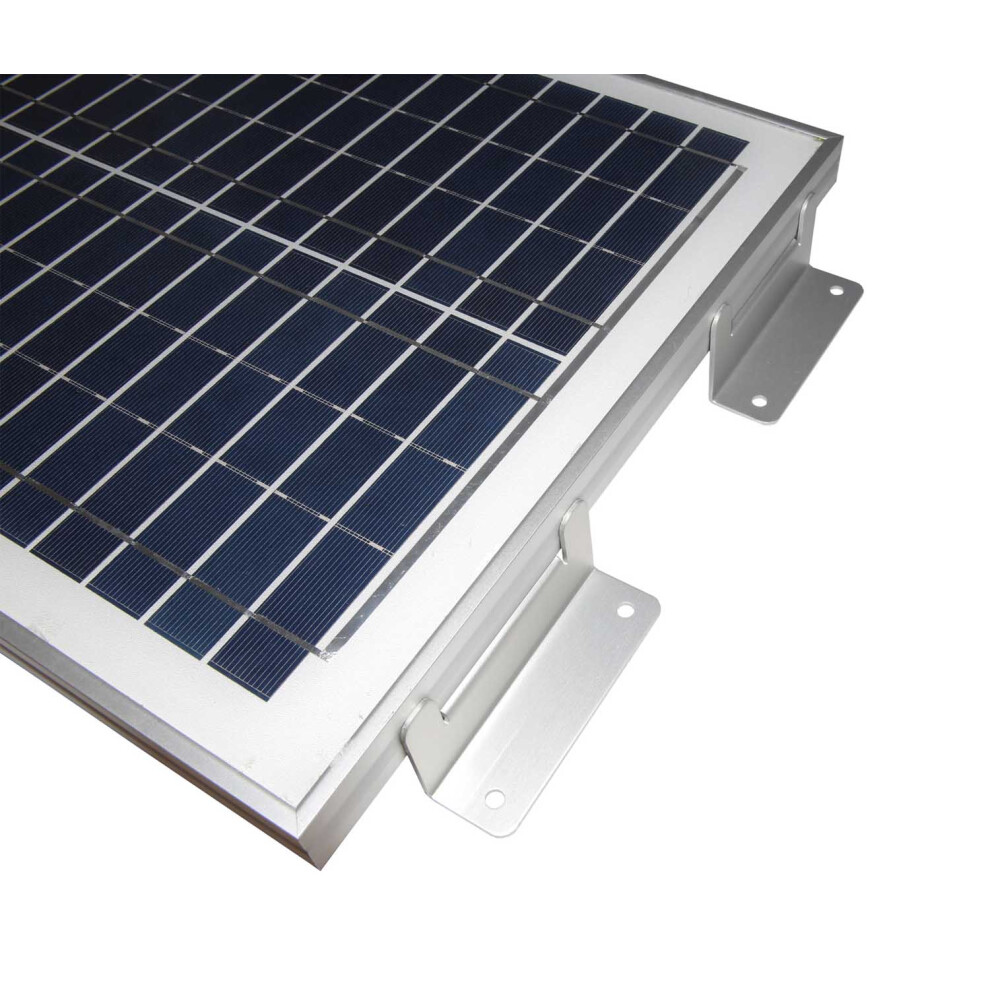

Solar Brackets

• 4 Aluminium Mounting Brackets

Product Warranties

Solar Panel = 10 Year for materials and workmanship

Charge Controller = 5 Year

All other components have a 12 month warranty.

Power Output Warranty is at least 90% maximum power for first 10 years of use and;

Power Output Warranty of at least 80% maximum power output for up to 25 years use
