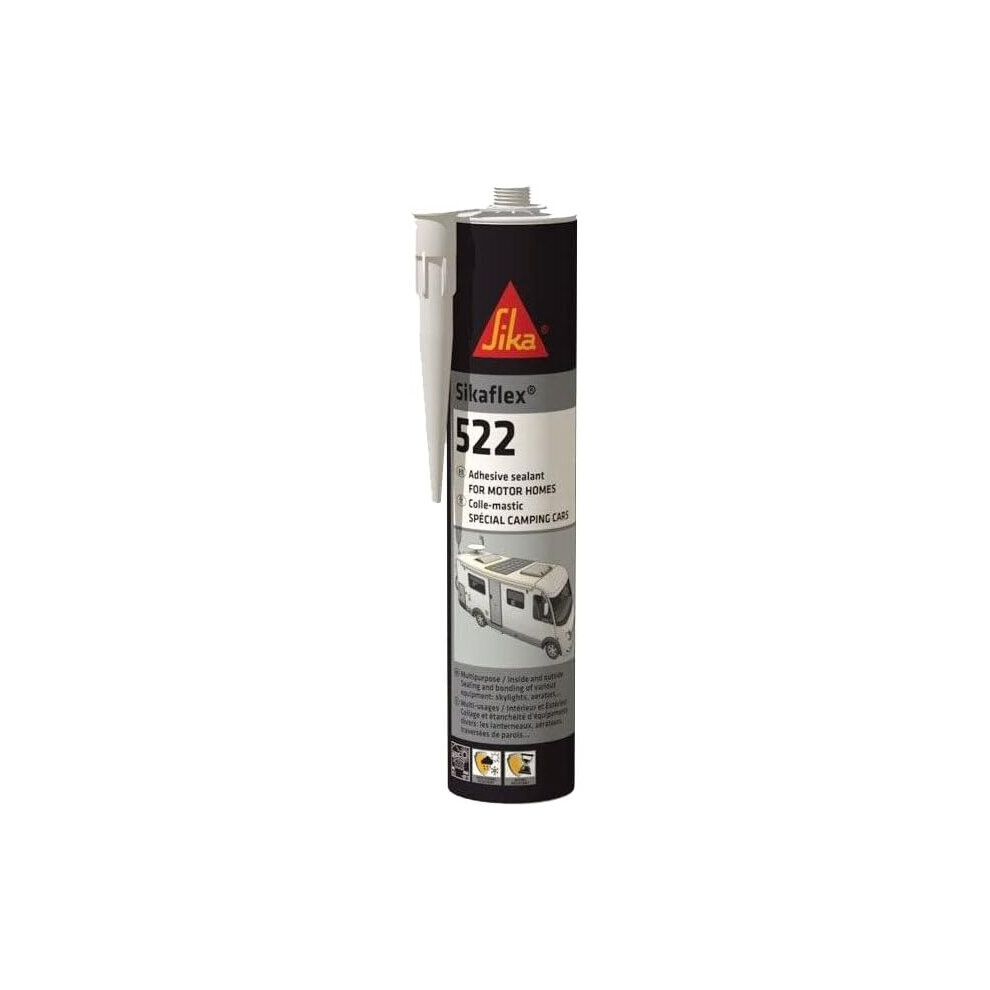

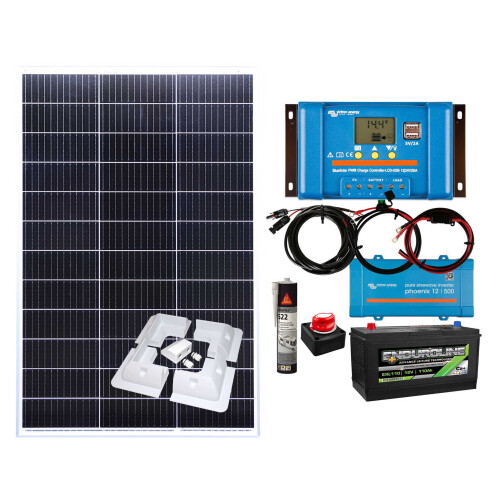

150w Panel Kit USB Charging Controller Batteries Mounts Inverter Enduroline Battery Cables Bracketsisolation switch Sikaflex Adhesive

150w Panel Kit USB Charging Controller Batteries Mounts Inverter Enduroline Battery Cables Bracketsisolation switch Sikaflex Adhesive Description

Technical Specifications

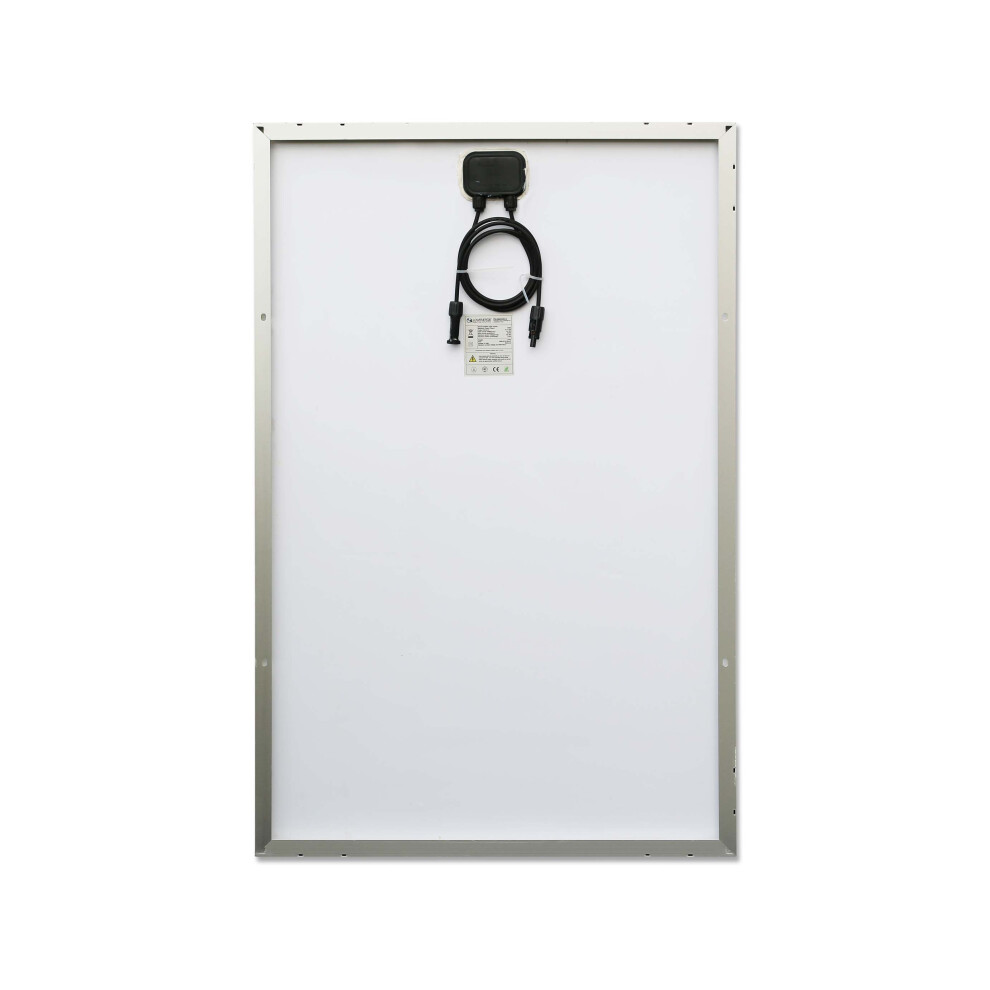

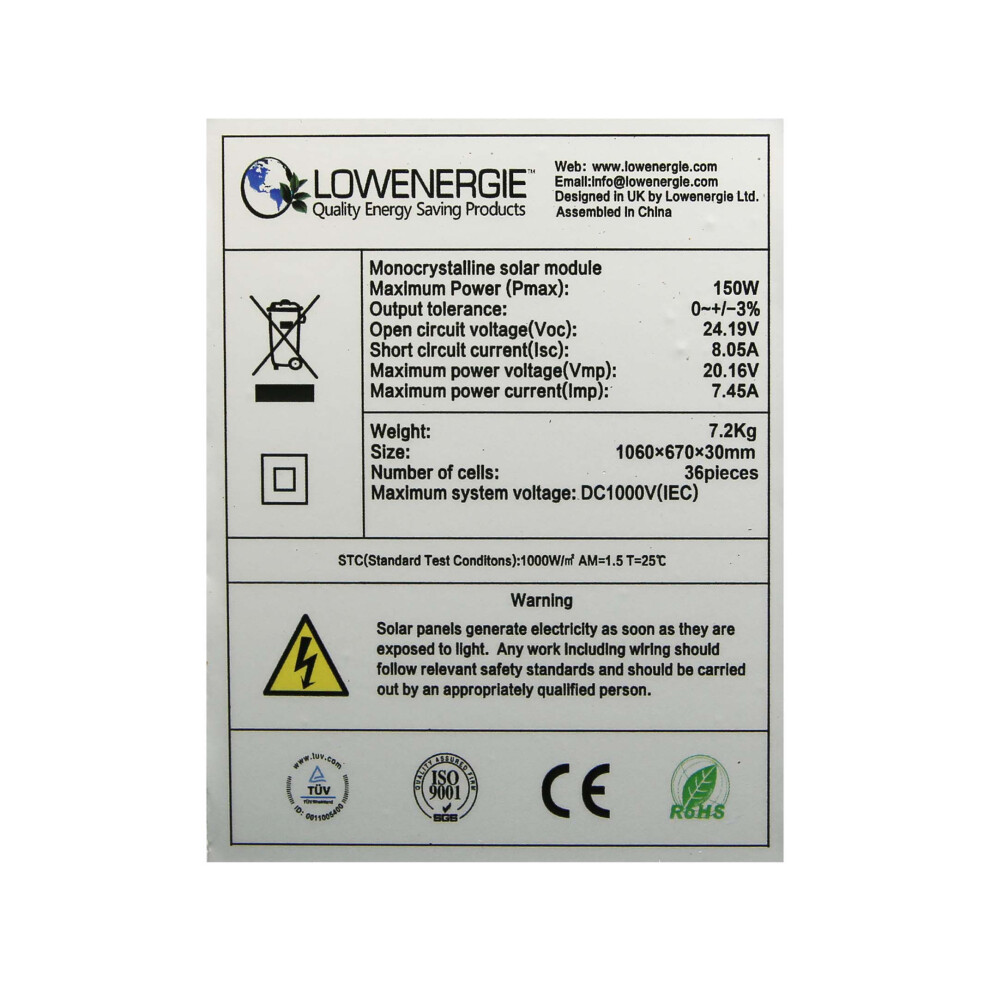

150-Watt Solar Panel (with 1m Cable & MC4 Connector Plugs)

• Maximum Power (Pmax): 150W
• Maximum Power Voltage (VMP): 20.16V
• Maximum Power Current (IMP): 7.45A
• Open Circuit Voltage (VOC): 24.19V
• Short Circuit Current (ISC): 8.05A
• Weight: 7.2KG
• Size: 1060 x 670 x 30mm
• Power Tolerance: +/-3%
• Maximum System Voltage: DC1000V
• Number of cells: 36

Technical - Victron Bluesolar 20A PWM+USB Solar Charge Controller

Controller Specification:

• Dimensions: 96 x 169 x 36mm
• Weight: 150g
• Rated charging & load current: 20 Amps
• Maximum voltage input: 28V/55V
• Rated Voltage: 12V & 24V
• Protected against reverse polarity connection of the solar array and/or battery.

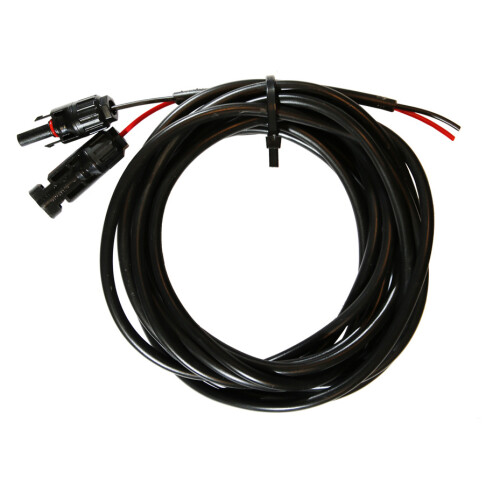

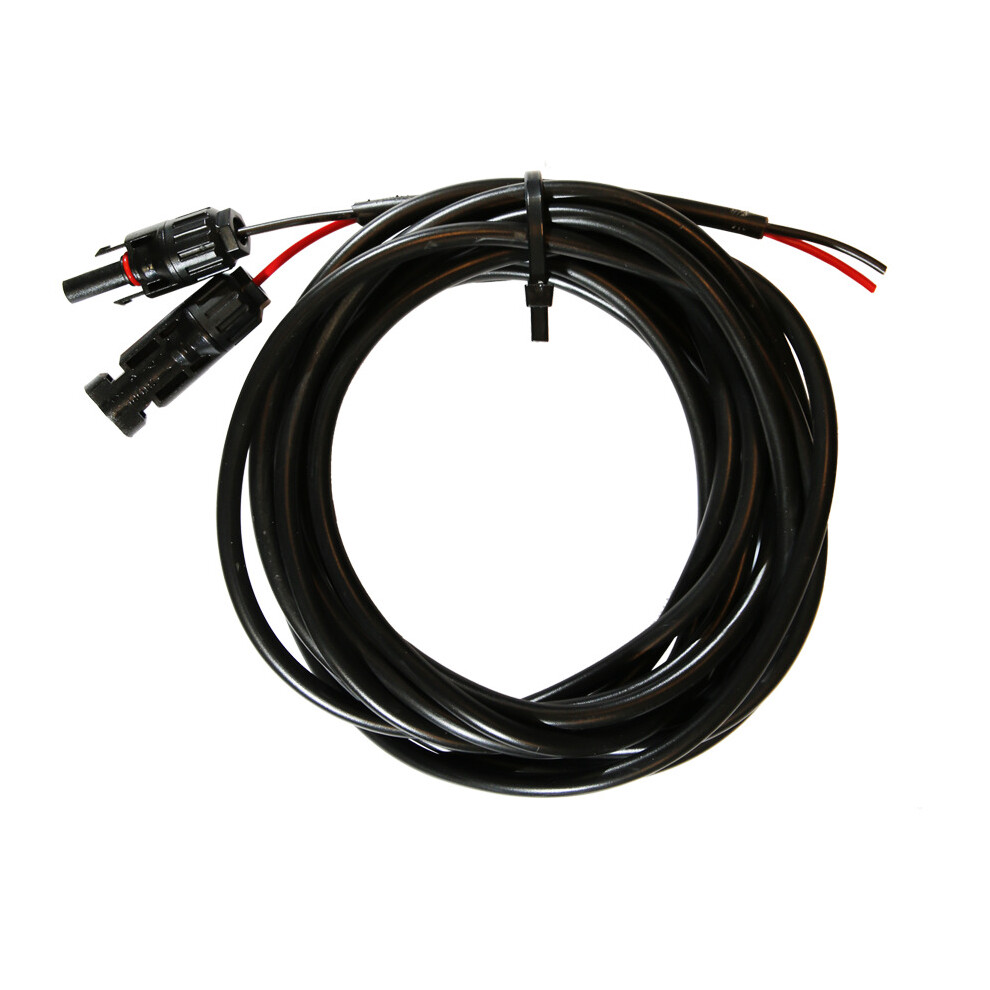

Solar Panels to Controller Cable

• 5m Twin core 2.5mm2 cable with male and female connectors to one end.

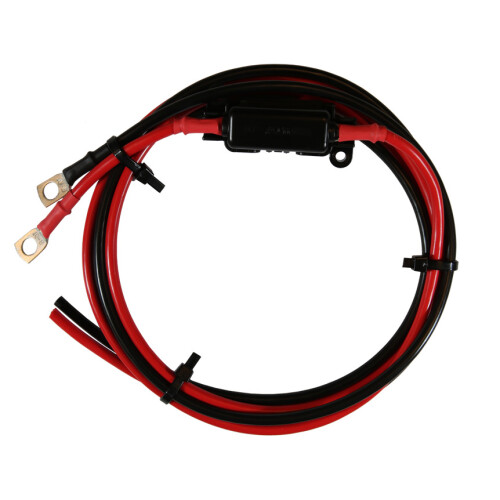

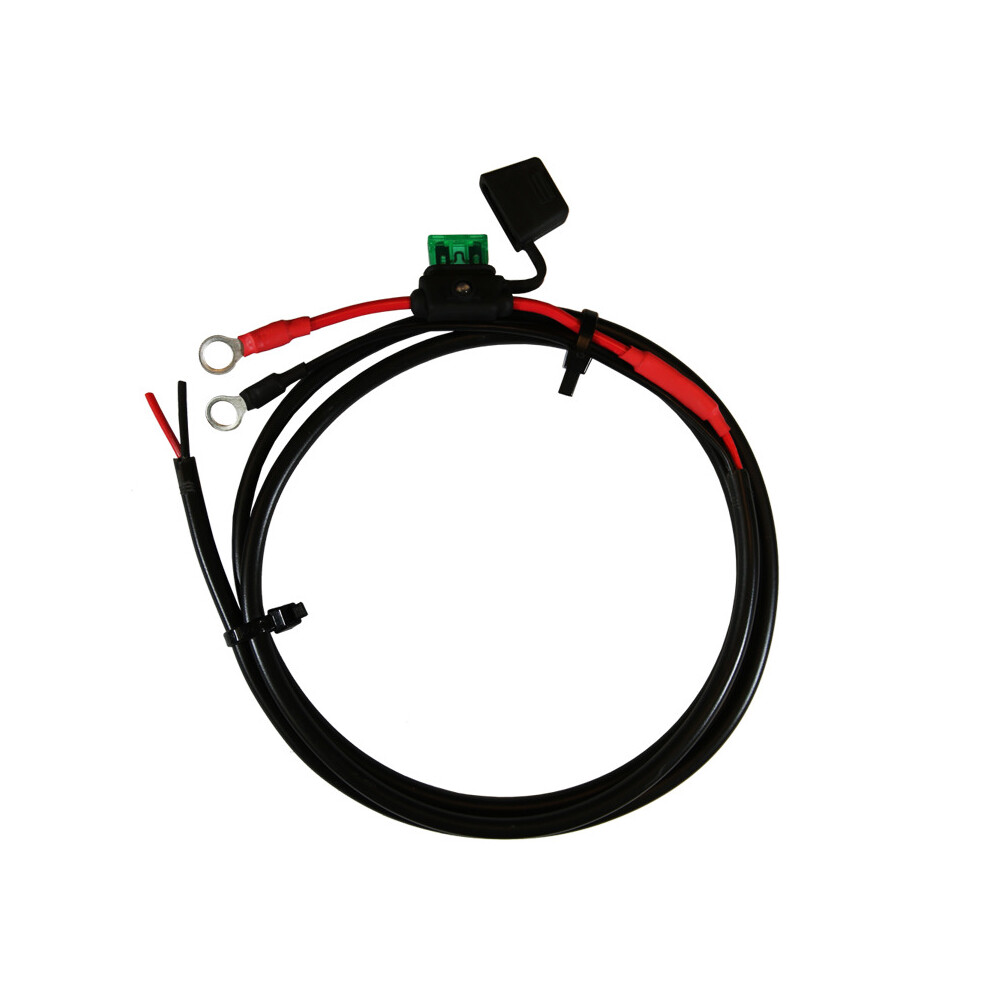

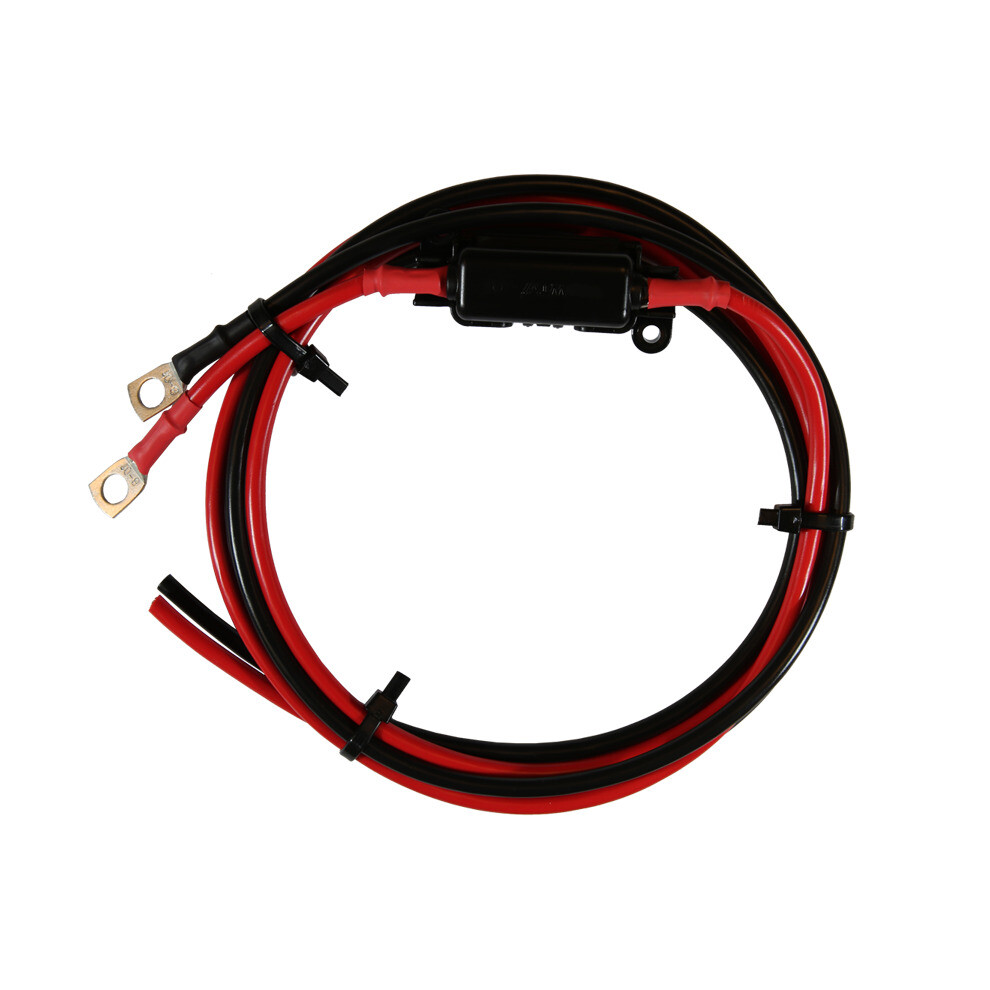

Solar controller to Battery Cable

• 1.5m, 2 Core 2.5mm2 AMC round profile cable, in-line fuse, 30A spade fuse M8 ring terminals.

All cabling carefully design to minimise voltage drops and maintain maximum system efficiency. TUV Approved

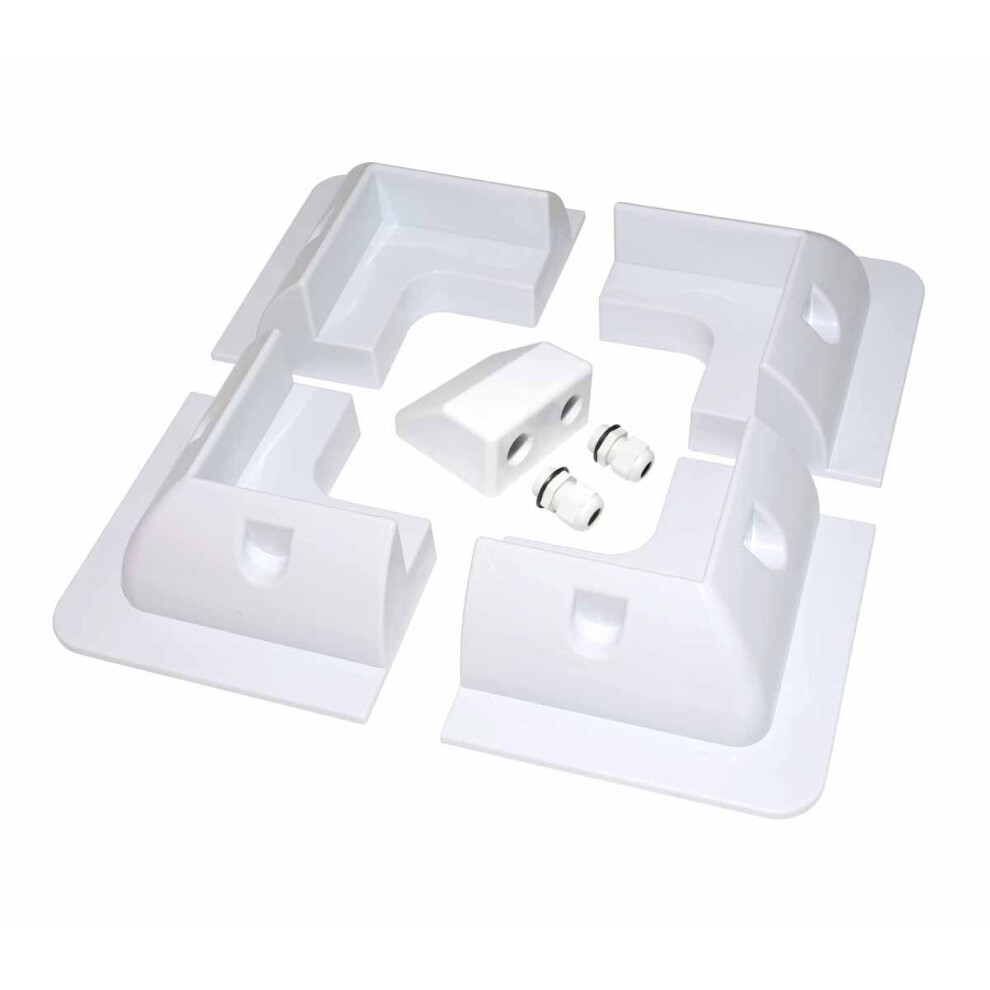

Solar Brackets:

• ABS
• 4 Corners, 1 cable entry
• White
• Size per bracket 15x15x 6.5cm.
• Weight (4 brackets) 1.6kg
• Easy Installation, holes should be drilled in each bracket, and corresponding holes in the solar panel frame on each side; then brackets should be fixed to the solar panel using self-tapping screws (not included).

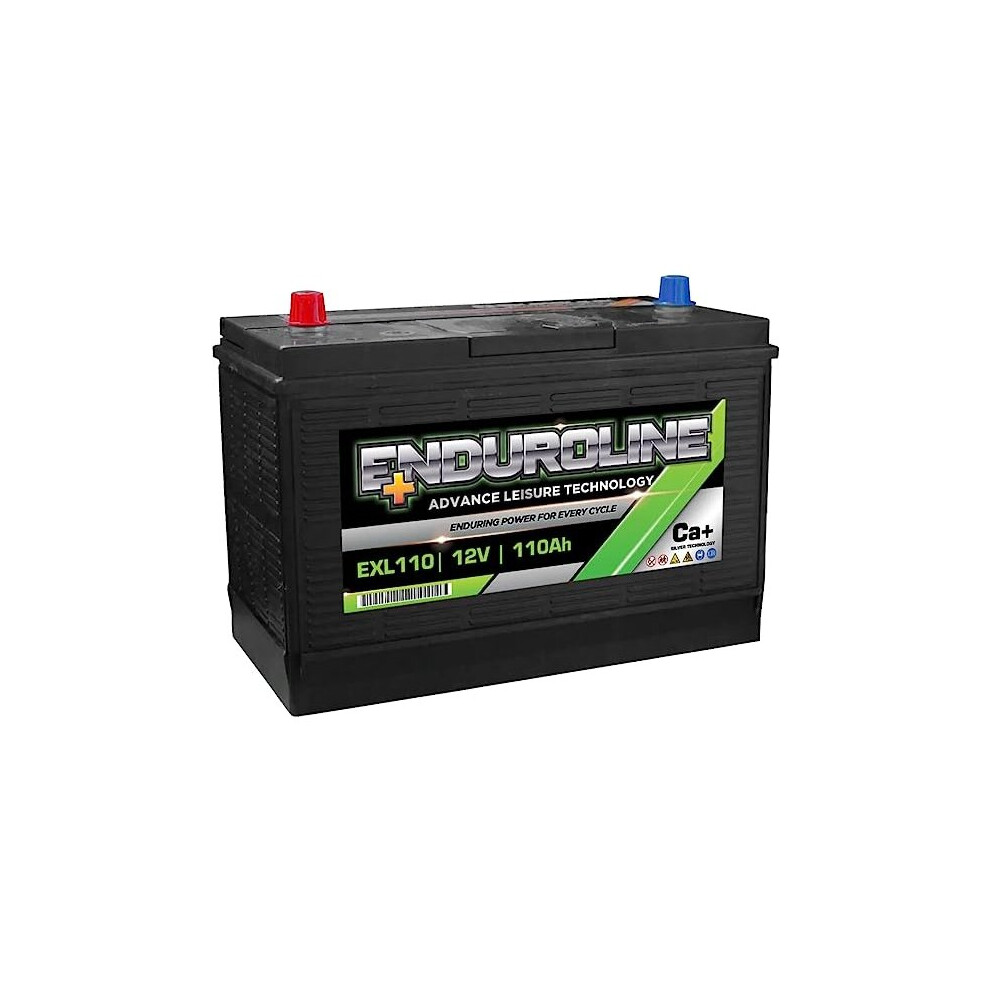

Battery(s) within this kit will either be Enduroline or Numax 100Ah LV25MF (both equivalent quality)

Victron 12/500 Inverter
