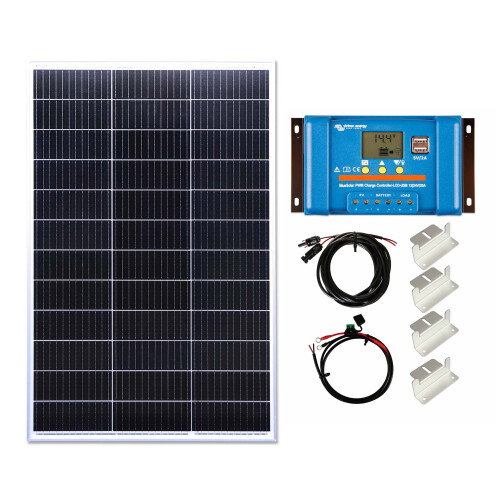

150w Solar Panel Kit Battery Charging PWM USB Controller Z Brackets with Mounting Brackets and Cables

150w Solar Panel Kit Battery Charging PWM USB Controller Z Brackets with Mounting Brackets and Cables Description

Technical Specifications

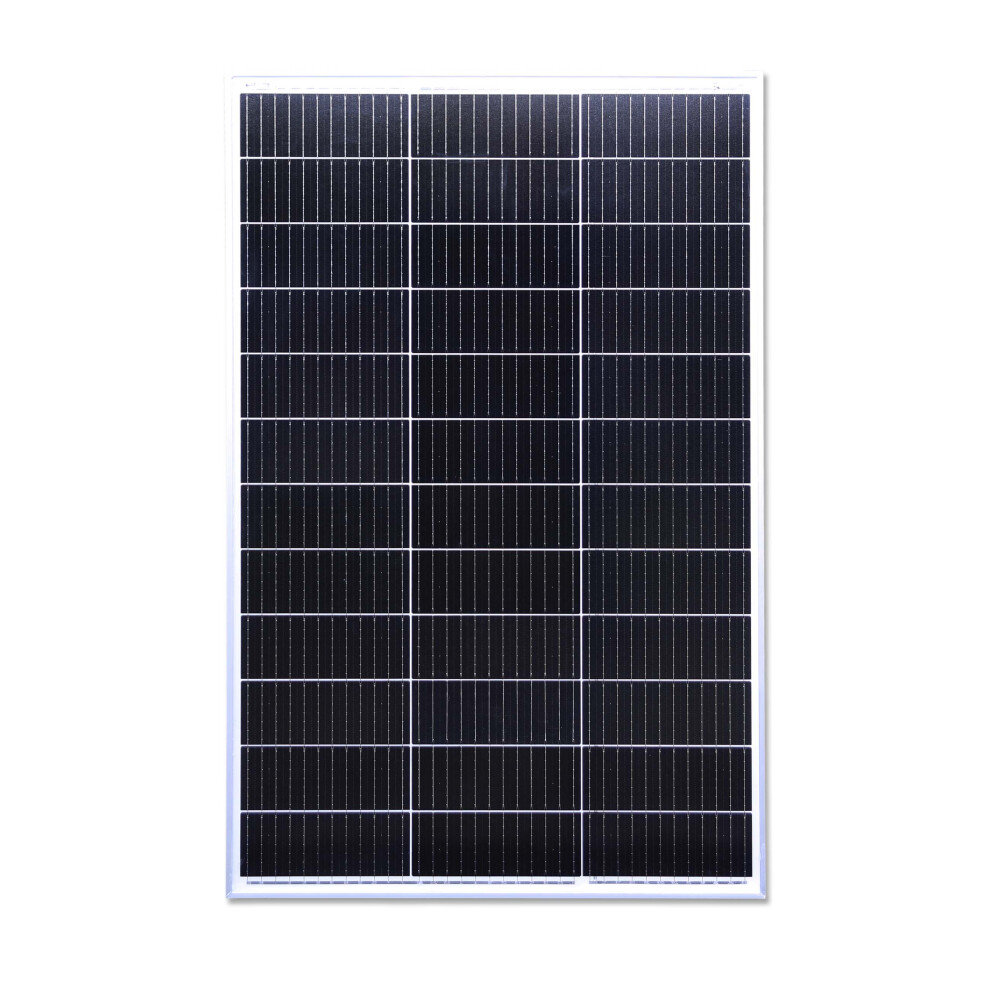

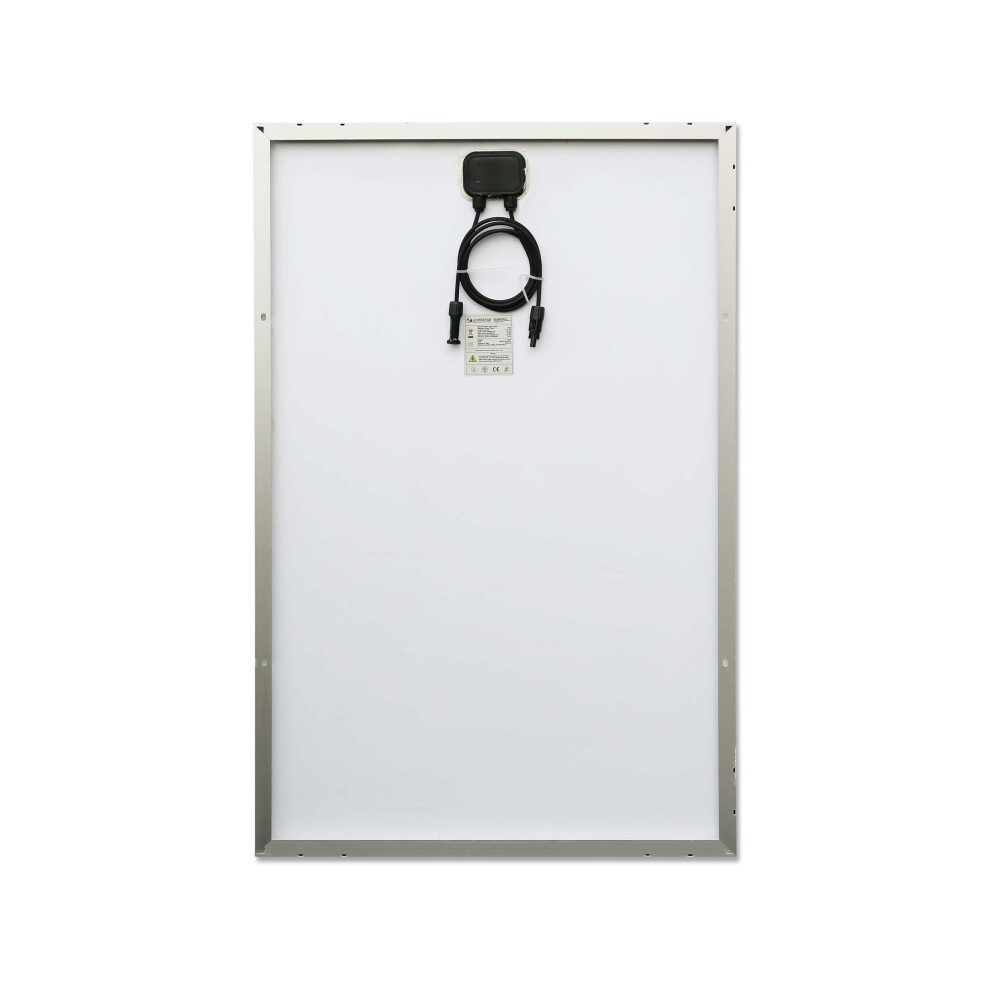

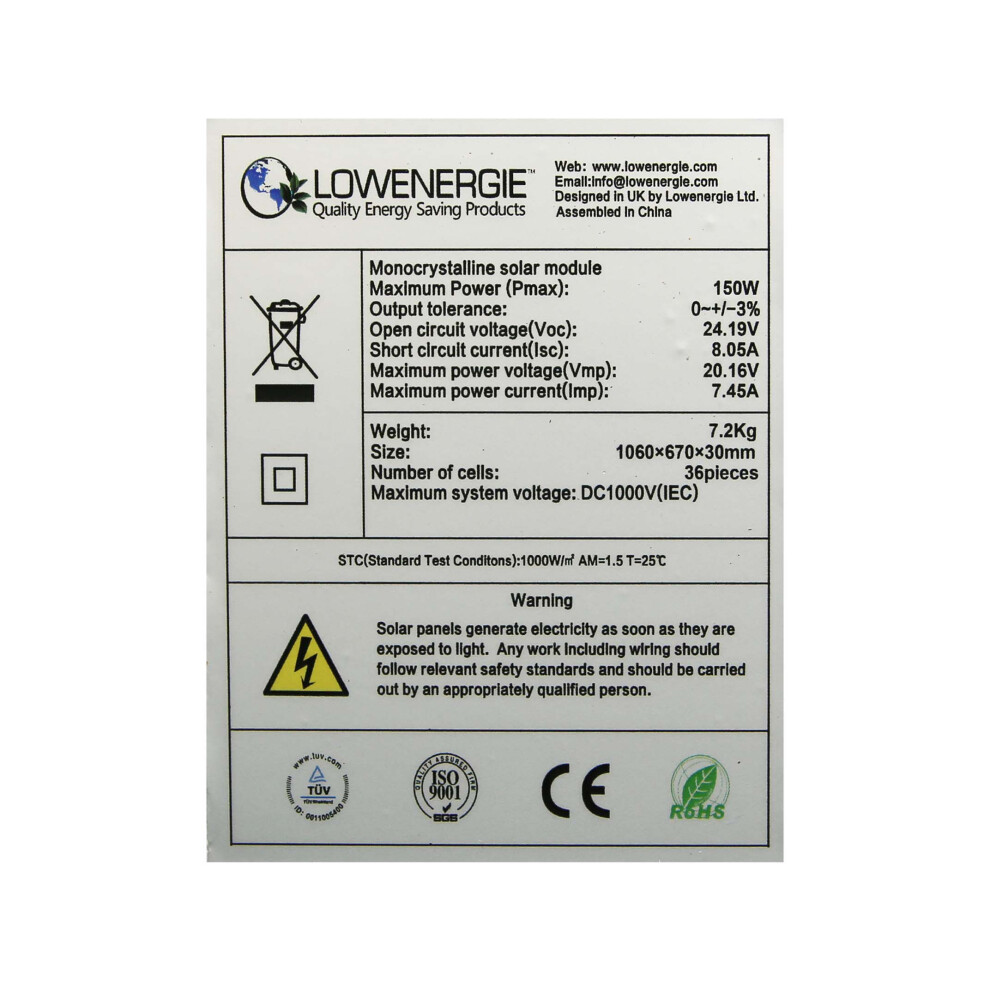

150-Watt Solar Panel (with 1m Cable & MC4 Connector Plugs)

Maximum Power (Pmax): 150W

Maximum Power Voltage (VMP): 20.16V

Maximum Power Current (IMP): 7.45A

Open Circuit Voltage (VOC): 24.19V

Short Circuit Current (ISC): 8.05A

Weight: 7.2KG

Size: 1060 x 670 x 30mm

Power Tolerance: +/-3%

Maximum System Voltage: DC1000V

Number of cells: 36

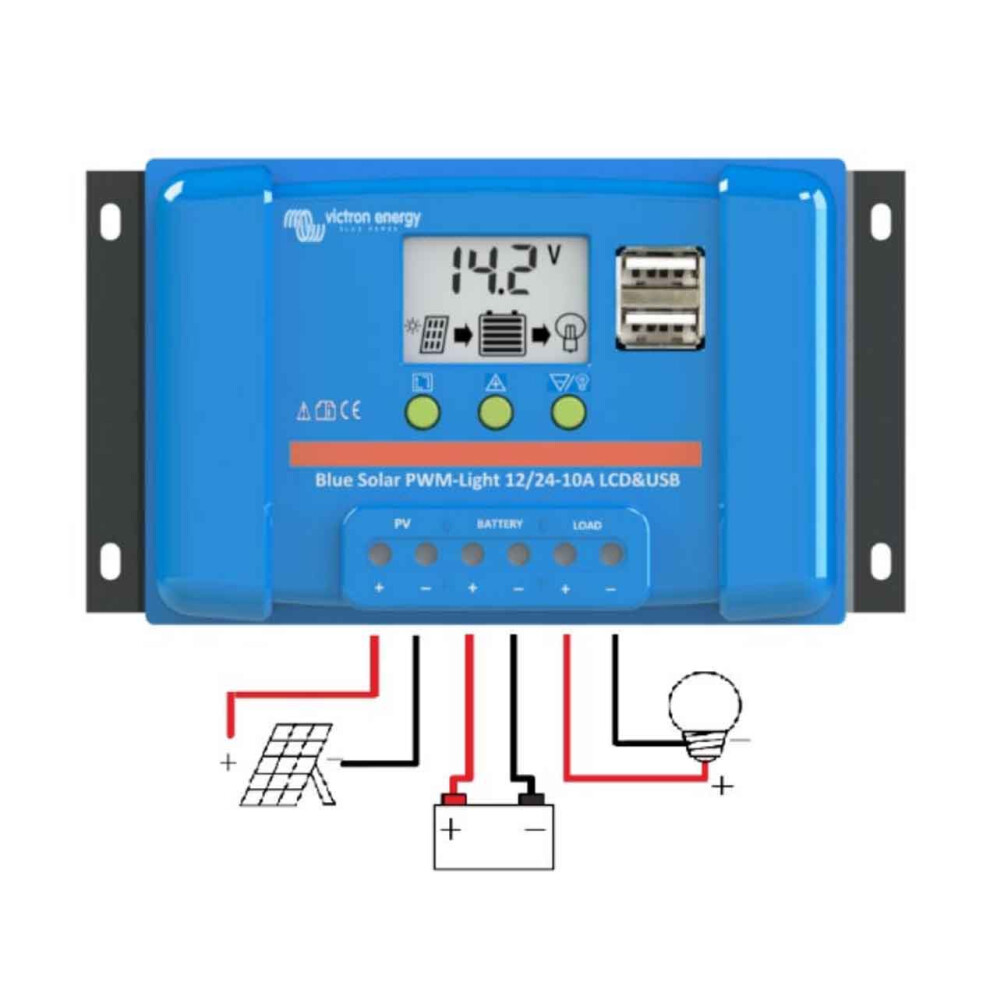

Technical - Bluesolar 20A PWM+USB Solar Charge Controller

Controller Specification:

• Dimensions: 96 x 169 x 36mm
• Weight: 150g
• Rated charging & load current: 20 Amps
• Maximum voltage input: 28V/55V
• Rated Voltage: 12V & 24V
• Protected against reverse polarity connection of the solar array and/or battery.

Solar Panels to Controller Cable

• 5m Twin core 2.5mm2 cable with male and female connectors to one end.

Solar controller to Battery Cable

• 1.5m, 2 Core 2.5mm2 AMC round profile cable, in-line fuse, 30A spade fuse M8 ring terminals.

All cabling carefully design to minimise voltage drops and maintain maximum system efficiency. TUV Approved

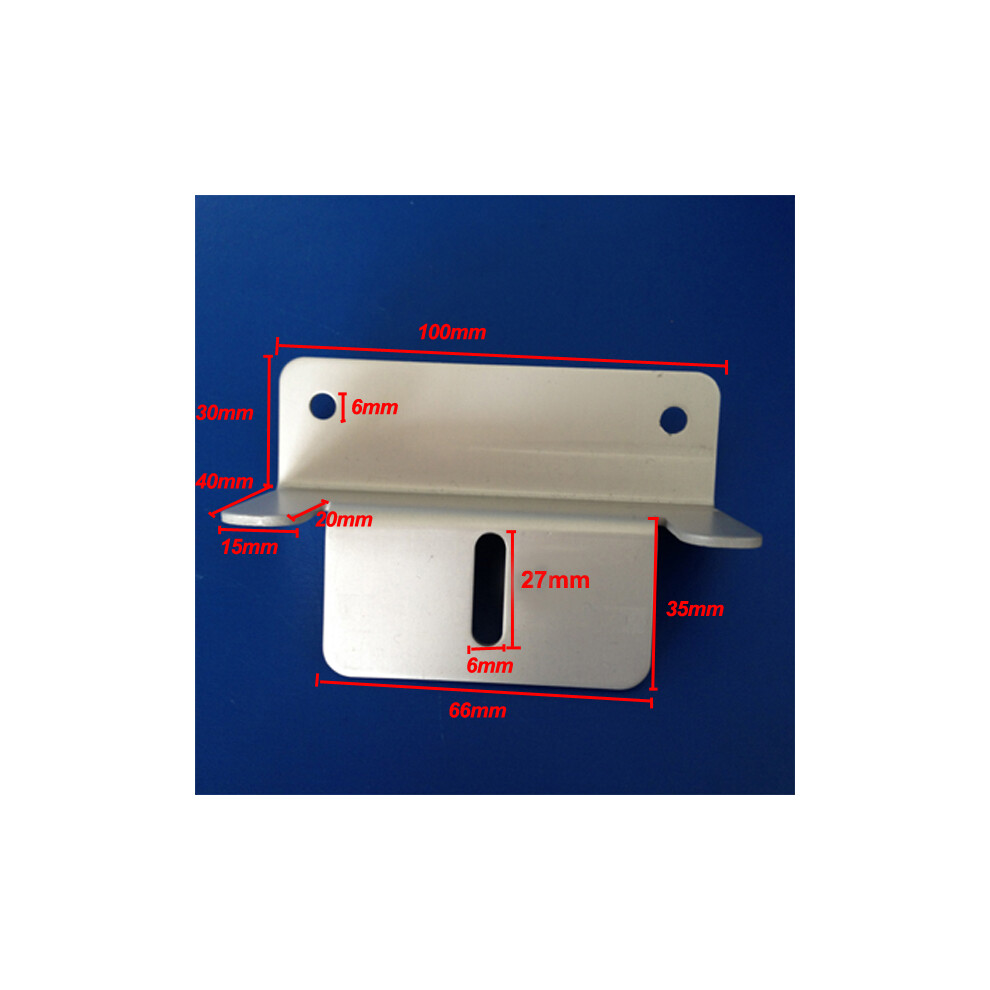

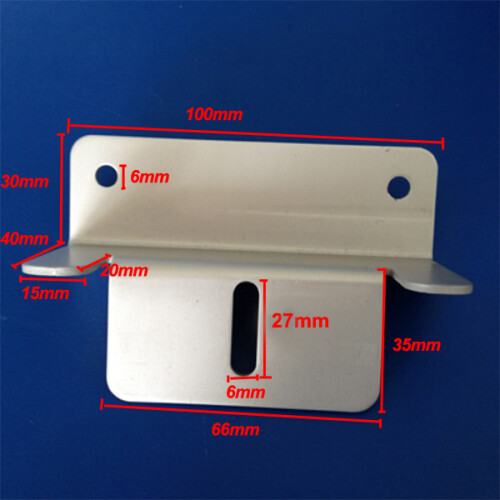

Solar Brackets:

• 4 x Aluminium brackets

Product Warranties

Solar Panel = 10 Year for materials and workmanship

Charge Controller = 5 Year Energy

All other components have a 12 month warranty.
