200w Mono Solar Panel Battery Charging Kit Controller Cables & Mounting Brackets

200w Mono Solar Panel Battery Charging Kit Controller Cables & Mounting Brackets Description

Lightweight design with rigid anodised aluminium alloy frame and toughened glass

Designed in the UK. CE, TUV, ISO 9001 quality assurance.

Why Go Solar?

Beat energy inflation, energy security, remote location power sources (save a fortune on armored cabling), mobile power sources, fast payback periods over conventional fuel sources such as diesel generation and hook-ups, keep batteries fully charged at all time as deep discharge shortens life, environmentally friendly power which reduces carbon emissions to slow global warming and climate change.

Applications

Sheds, Stables, Boats, Caravans, Motorhomes, electric fencing, road/ path/ driveway illuminated signage, campsites, yurts, multi-panel off grid power source for small buildings, remote telecomms, mobile food outlets, and many more...

Independent Off-Grid Solar Power Source

One or more solar panels can be connected a battery bank and power inverter using a solar charge controller. You can therefore have a 240v power supply anywhere in the world without grid supply.

Solar Panels do still generate power during cloudy and rainy weather

We have a rough guide below to solar panel power output relative to weather conditions:-

• 100% power output - clear sky midday sun with the panel fully tilted toward the sun's position in the sky.
• 75-85% output - clear sky midday sun but with the panel laid flat
• 50-65% output - thin cloud, or intermittent small clouds
• 10-20% output - midday overcast sky or rainy conditions

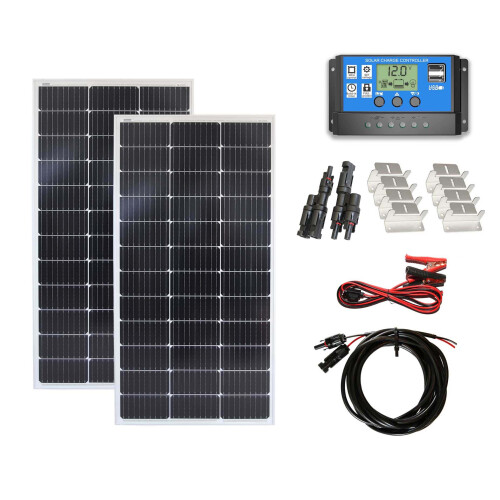

Solar Kit Contents

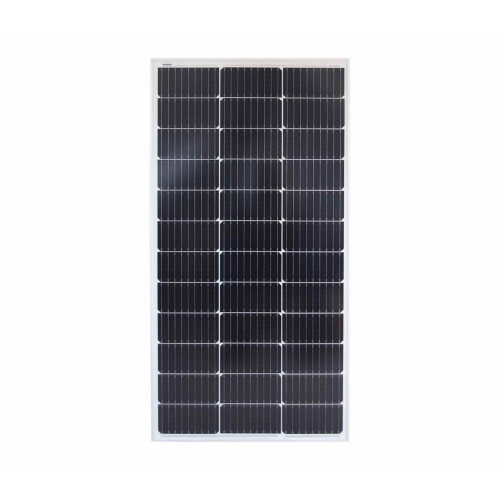

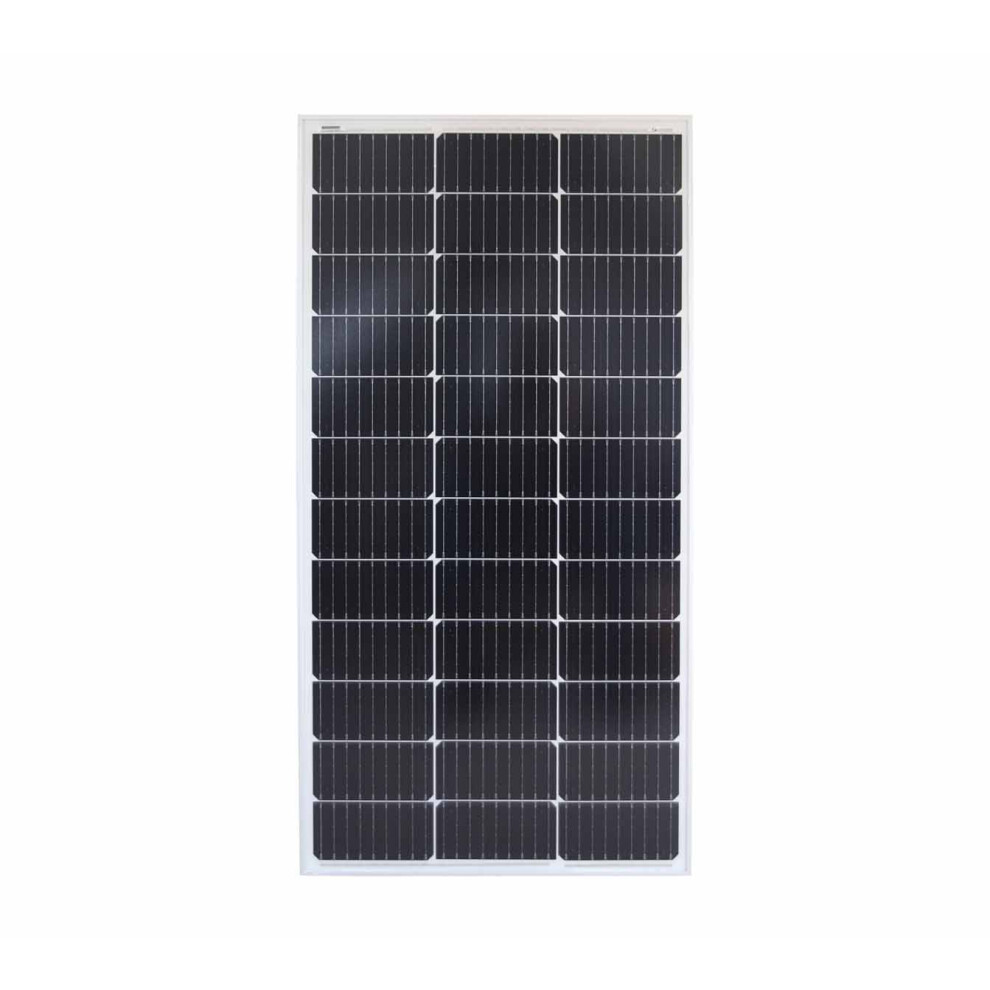

• 2 x 100 Watt monocrystalline Solar Panel with 1M cable & MC4 Plugs attached
• PWM Charge Controller
• 8x Aluminium mounting brackets
• 5 Metre 4mm2 solar cable with MC4 connectors
• 2m Battery to solar controller cable - fused with crocodile clips
• T Branch

Warning: The Connection Order Below must be followed

1. Battery Cable
2. Load Cable
3. Solar Panel Cable

4. Do not install the charge controller in a sealed enclosure where battery gases can accumulate.

   These charge controllers can be used with one or more 12V batteries where additional storage capacity may be needed.

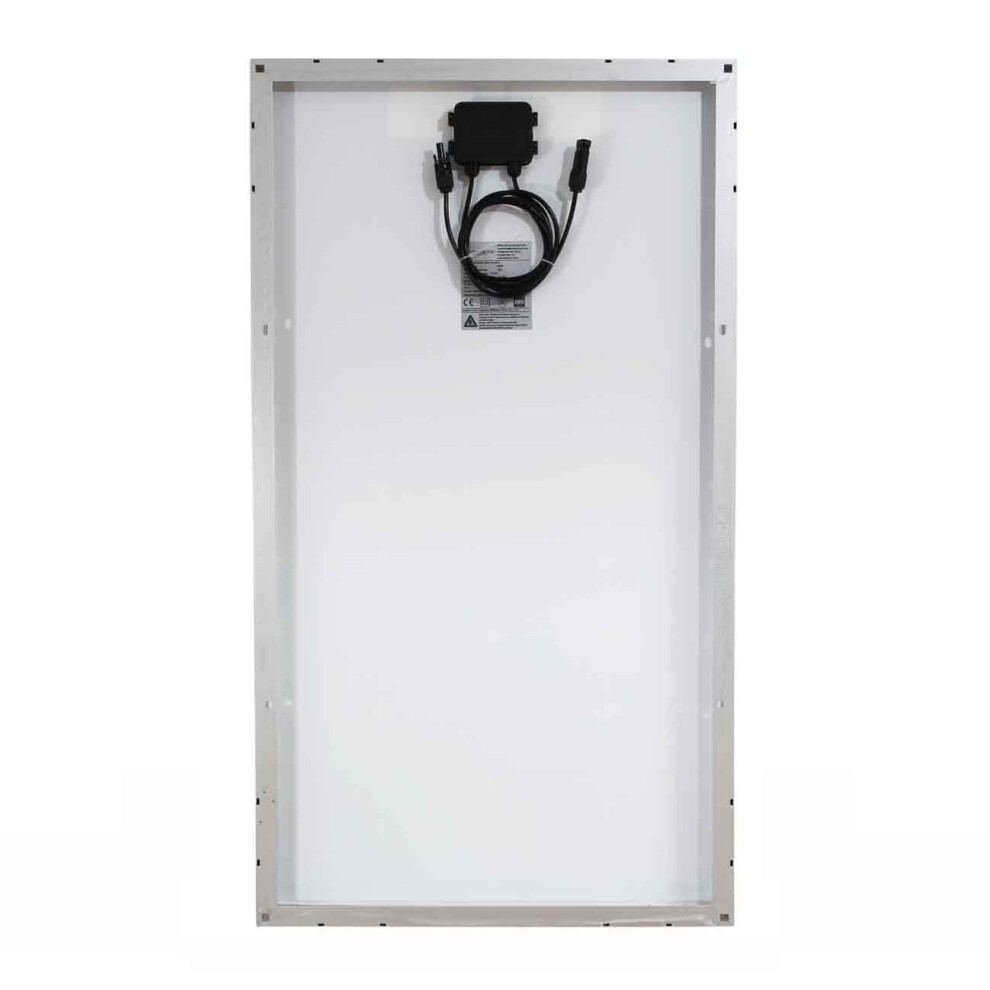

   Technical Specifications - 100w Solar Panel

   • Maximum Power (Pmax): 100W
   • Maximum Power Voltage (VMP): 18V
   • Maximum Power Current (IMP): 5.50A
   • Open Circuit Voltage (VOC): 21.60V
   • Short Circuit Current (ISC): 6.05A
   • Weight: 7.8KG
   • Size: 1060 x 540 x 30mm
   • Cells: 36
   • Power Tolerance: +/-3%
   • Maximum System Voltage: DC1000V

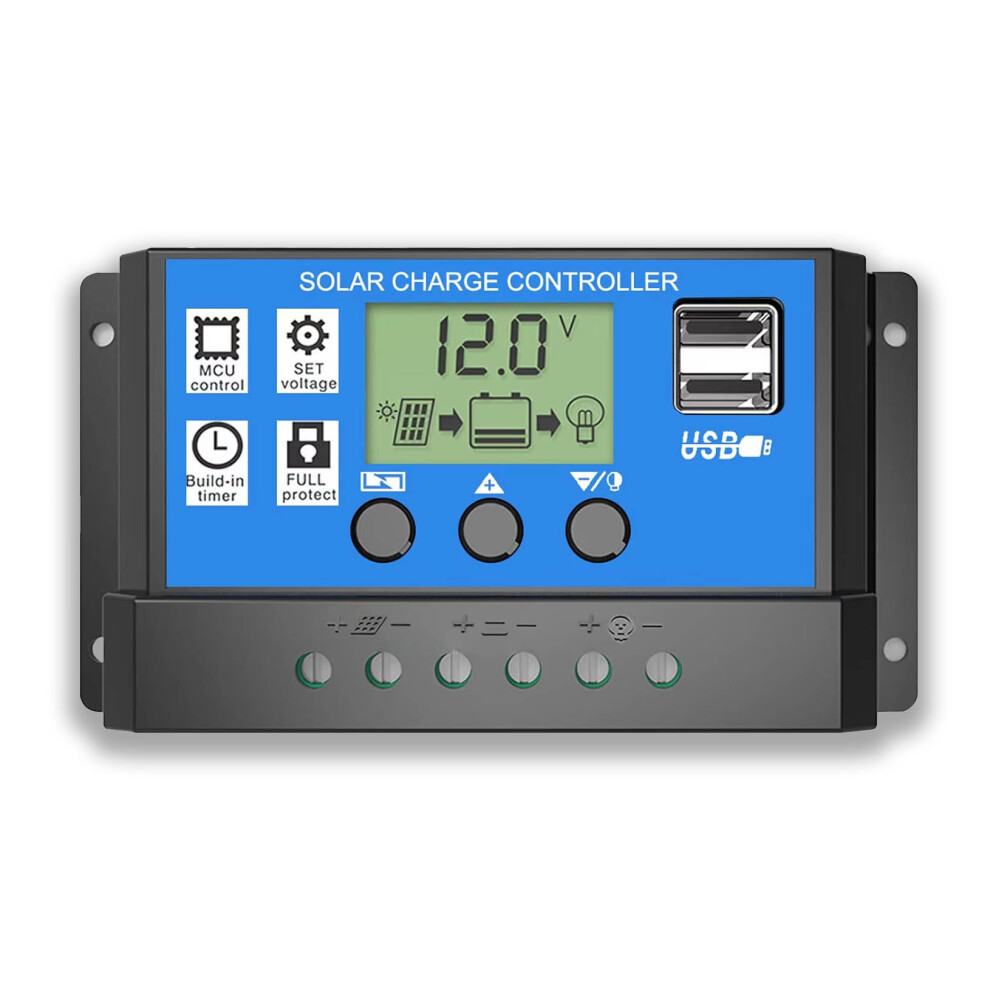

   Solar Panel Battery Charge Regulator Controller 12V / 24V Auto Switching

   Solar charge controllers are required to regulate the power output from the solar panels to ensure effective charge of a typical 12V or 24V lead acid battery without overload. PWM (Pulse Wave Modulation) solar charge controller provide a cost-effective solar charger for the solar panel outputs in our range. Optimised charge control which helps to prolong the life of the battery. 3-6% more effective than non-PWM charge controllers. LED indicator light to show battery state. Uses industrial grade microcontroller chip to work in a wide range of temperatures and humidity.

   Warning: The Connection Order Below must be followed

   1, Battery Cable, 2 Load Cable, 3, Solar Panel Cable

   Do not install the charge controller in a sealed enclosure where battery gases can accumulate.

   These charge controllers can be used with one or more 12V batteries where additional storage capacity may be needed.

   Solar Charge Controller - Technical

5. 20A max Rated Discharge Current and Rated Charge Current.
6. Suitable for 12V or 24V systems, auto detecting & auto switching
7. Only suitable for lead acid batteries: Sealed wet lead acid, AGM, GEL. This controller is not suitable for nickel metal hydride, lithium ion or other batteries.
8. Maximum solar input; <50V
9. Equalisation; Sealed 14.4V, Gel 14.2V
10. Float Charge; 13.7V (by default, value adjustable)
11. Load outlet discharge stop 10.7V (by default, value adjustable)
12. * Discharge Reconnect 12.6V (by default, value adjustable)
13. USB outlet - 5V/3A maximum.
14. Working temperature range -35 to +60 Deg C
15. Dimensions - 150 x 78 x 35 mm
16. Weight - 150 grams
17. * Discharge reconnect meaning. This voltage is user adjustable. As the load consumes the power within the battery, the voltage eventually drops to 10.7V and the load output of the controller will automatically stop any further charge from protect the battery. If for example the next day maybe rainy or cloudy day and the battery charges slowly, if the voltage is still below 12.6V, the load output from the controller will still not work. If the sun comes out in the afternoon, or the next day is much sunnier conditions, once the battery voltage rises above 12.6V, the controller load output will automatically start to work again. Discharge reconnect is set to 12.6V by default, although you may wish to set this perhaps 12.4V. Discharge reconnect is aimed at protecting the battery and reducing the depth of discharge cycling. Lead acid batteries last longer with shallow discharge.

Product features

1, built in industrial microcontroller

2, large LCD display, all parameters are adjustable

3, full four-stage PWM charge management

4, built in short circuit protection, open circuit protection, reverse protection, overload protection.

5, dual MOSFET reverse current protection, low heat production.
