300w Solar Kit USB Charging Controller,Cables,Mounts,Battery,Sikaflex

300w Solar Kit USB Charging Controller,Cables,Mounts,Battery,Sikaflex Description

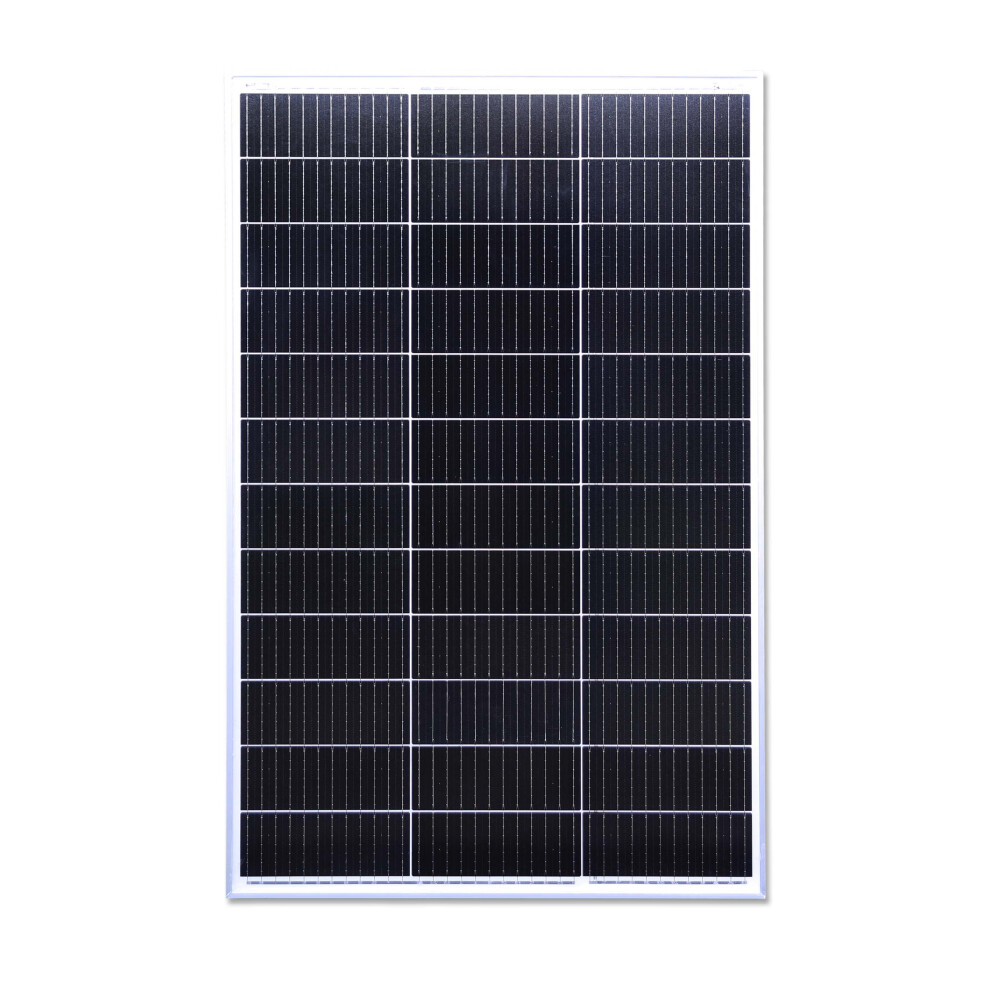

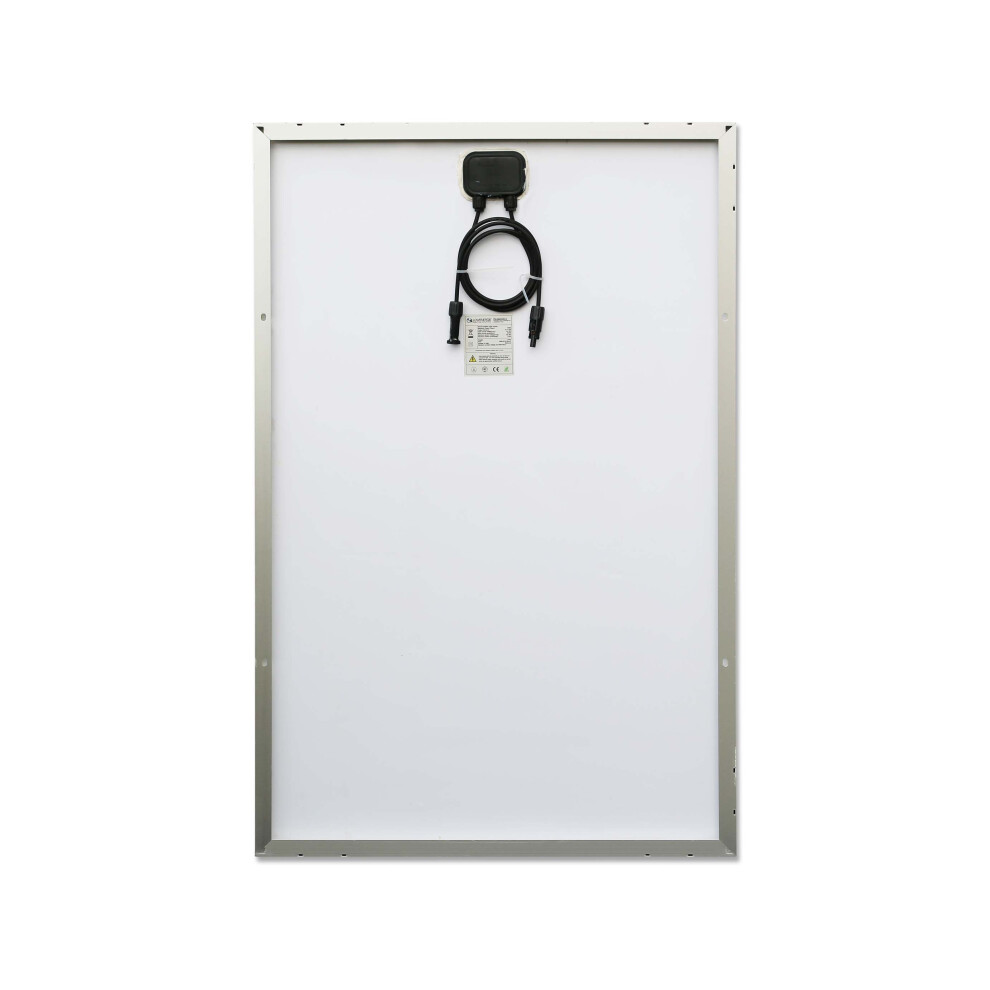

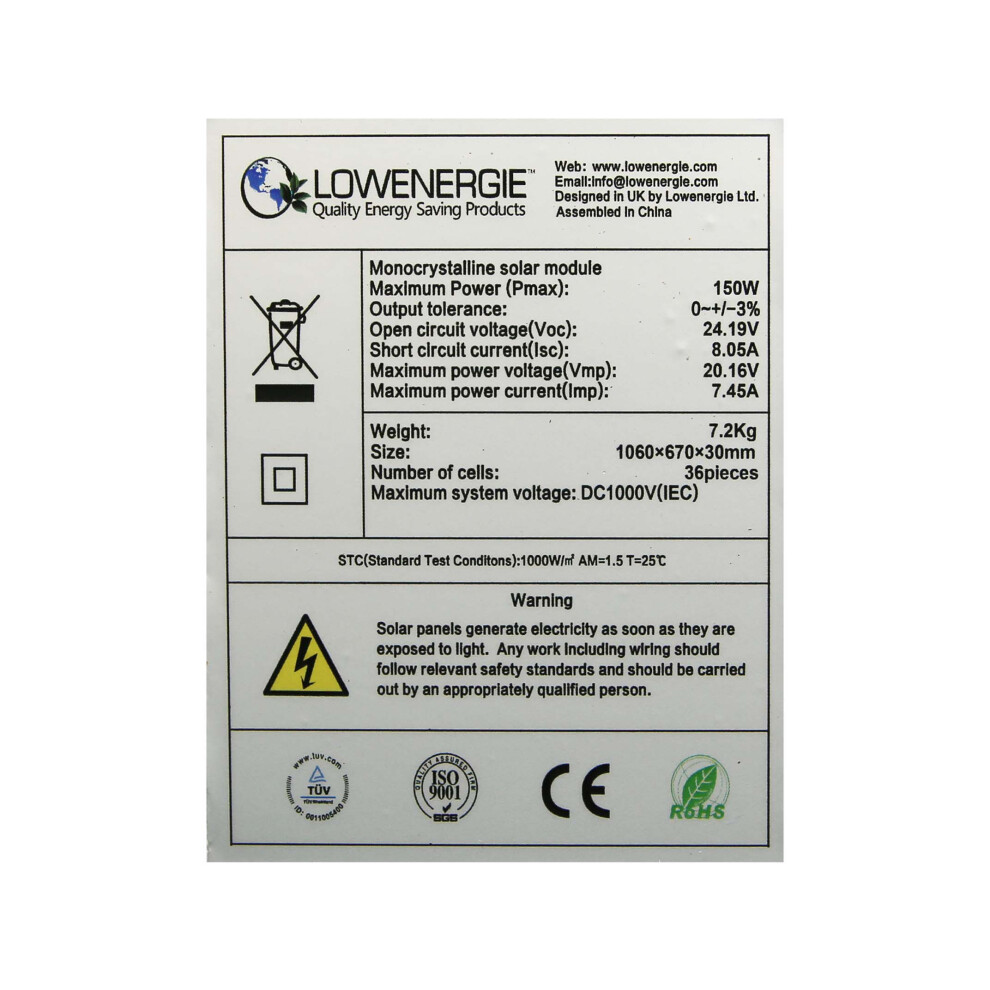

150-Watt Solar Panel (with 1m Cable & MC4 Connector Plugs)

• Maximum Power (Pmax): 150W
• Maximum Power Voltage (VMP): 20.16V
• Maximum Power Current (IMP): 7.45A
• Open Circuit Voltage (VOC): 24.19V
• Short Circuit Current (ISC): 8.05A
• Weight: 7.2KG
• Size: 1060 x 670 x 30mm
• Power Tolerance: +/-3%
• Maximum System Voltage: DC1000V
• Number of cells: 36

Technical - Victron 30A PWM+USB

Controller Specification:

• Dimensions: 96 x 169 x 36mm
• Weight: 150g
• Rated charging & load current: 30 Amps
• Maximum voltage input: 28V/55V
• Rated Voltage: 12V & 24V
• Protected against reverse polarity connection of the solar array and/or battery.

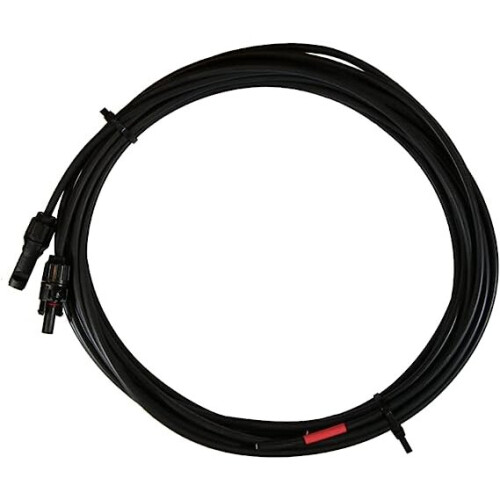

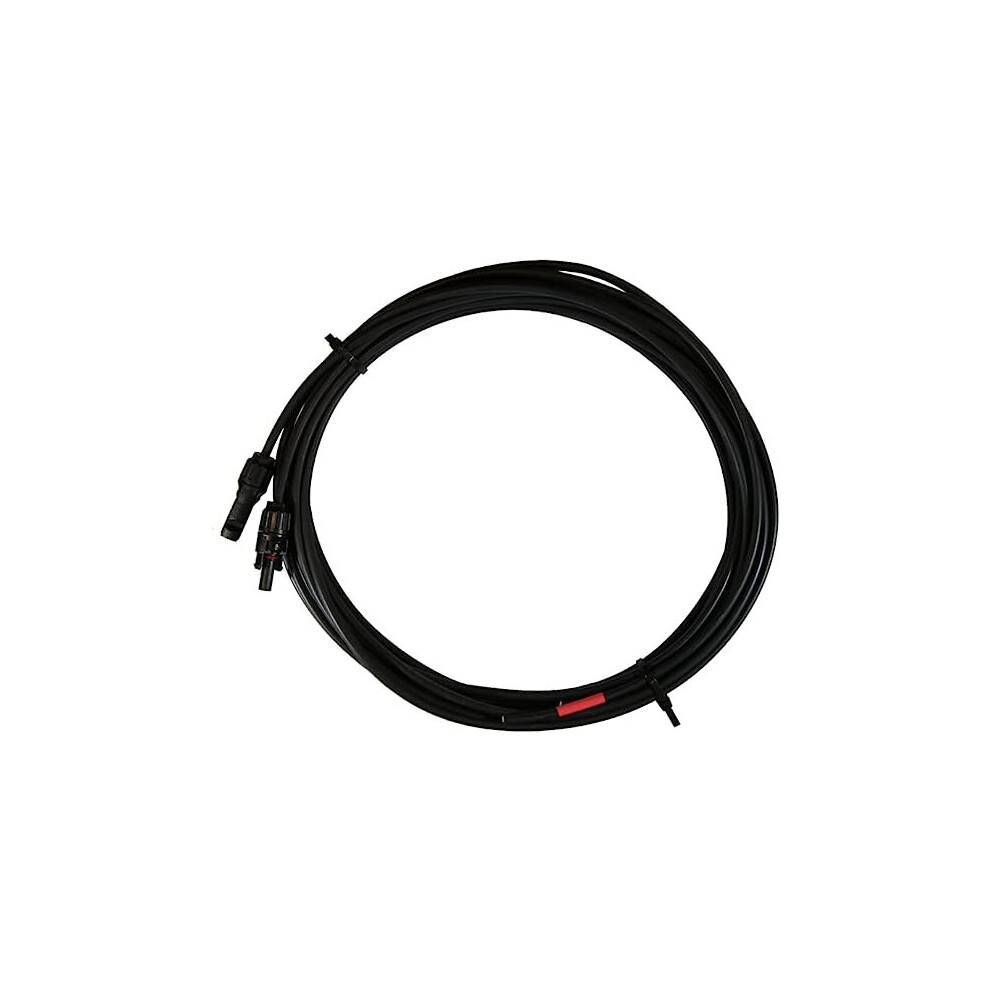

Solar Panels to Controller Cable

• 10m 4mm2 cable with male and female connectors to one end.

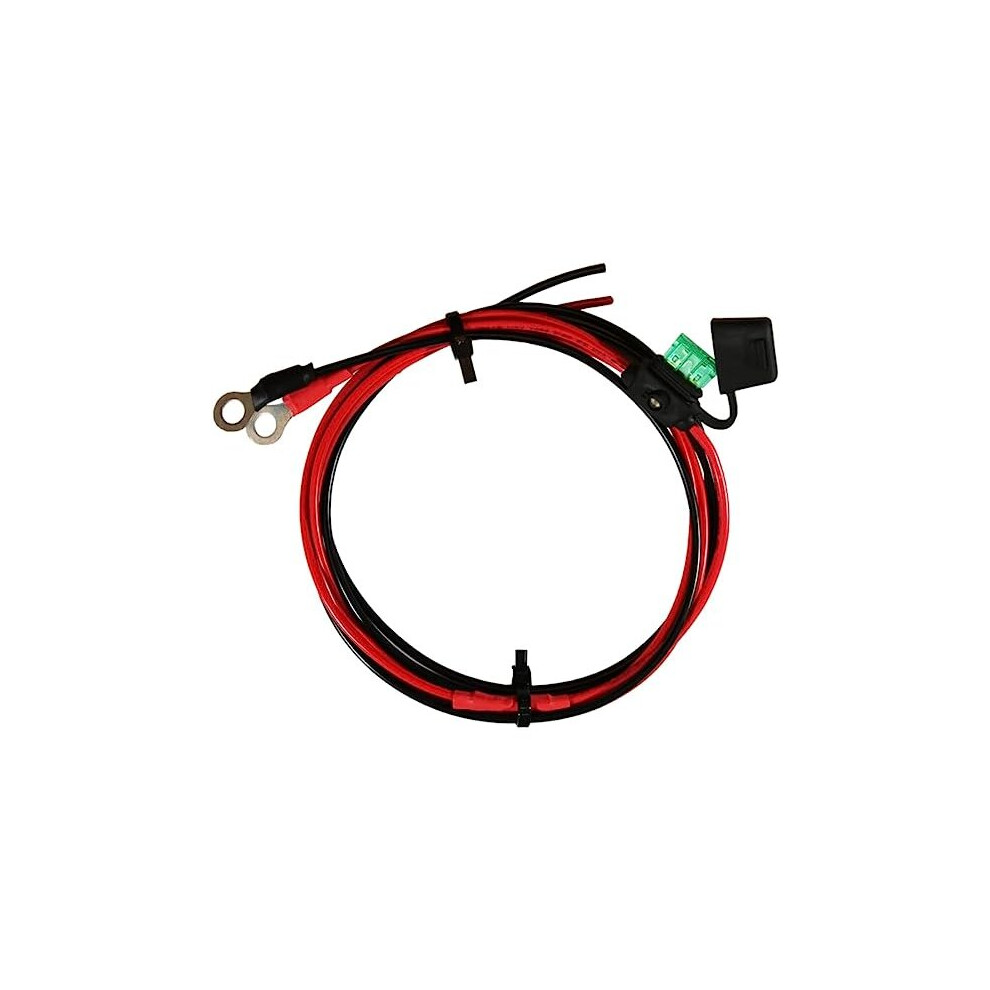

Solar controller to Battery Cable

• 1.5m, 4mm2 round profile cable, in-line fuse, 30A spade fuse M8 ring terminals.

All cabling carefully design to minimise voltage drops and maintain maximum system efficiency. TUV Approved

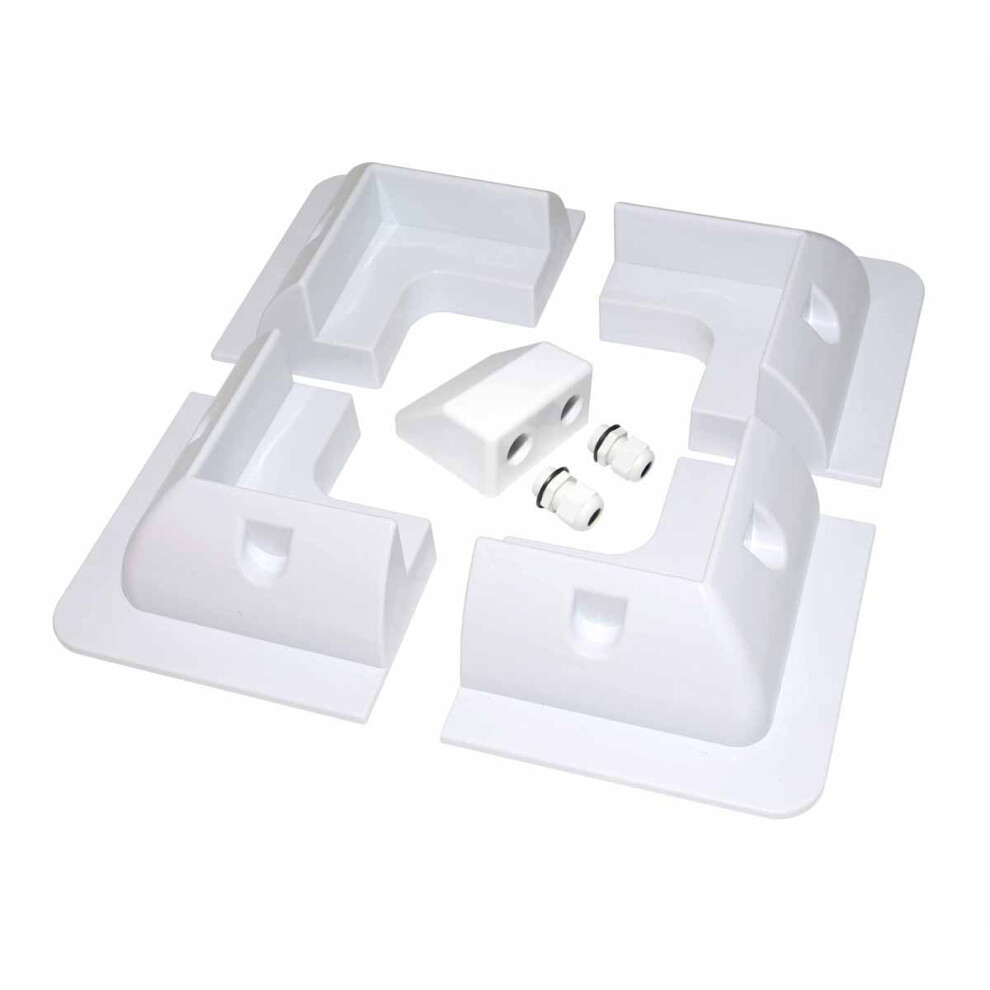

Solar Brackets:

• ABS
• 4 Corners
• White
• Size per bracket 15x15x 6.5cm.
• Weight (4 brackets) 1.6kg

Cable Entry

• ABS
• Twin cable entry for 4-12mm cables
• White
• Watertight
• Size: 12x10x5cm

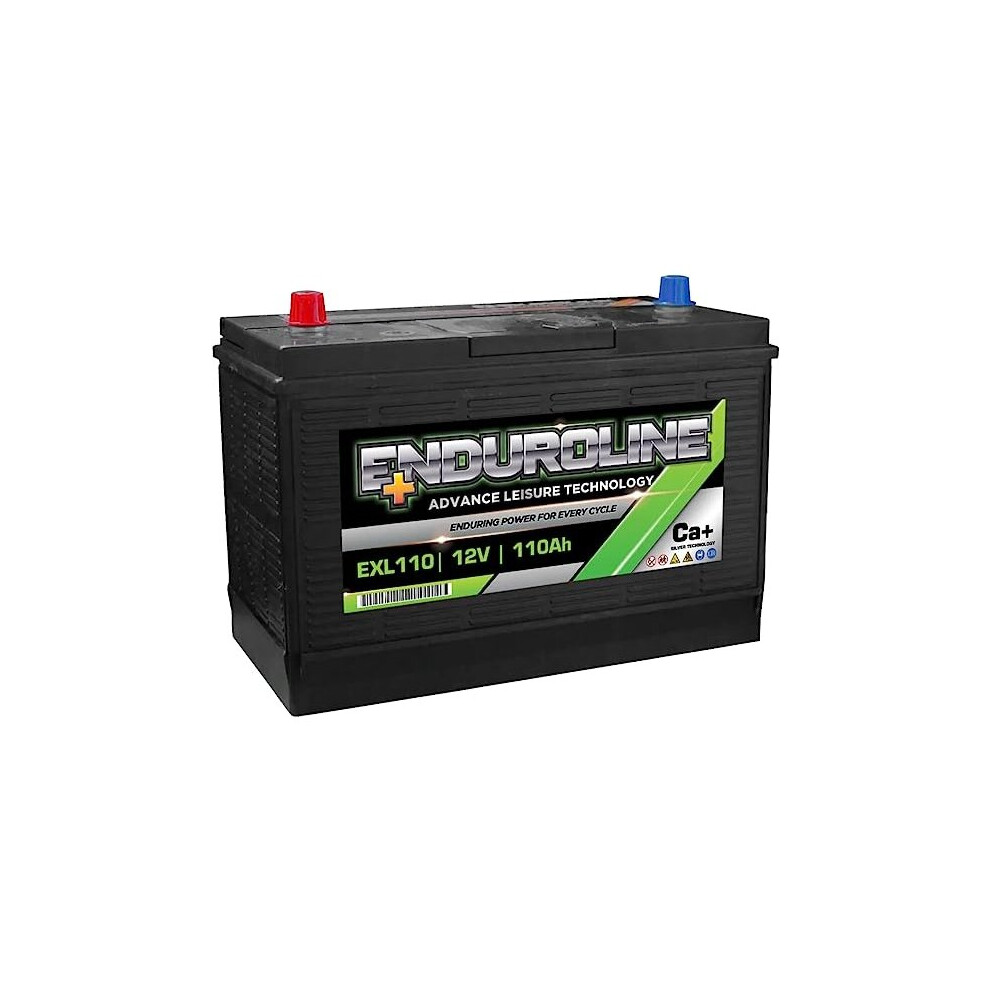

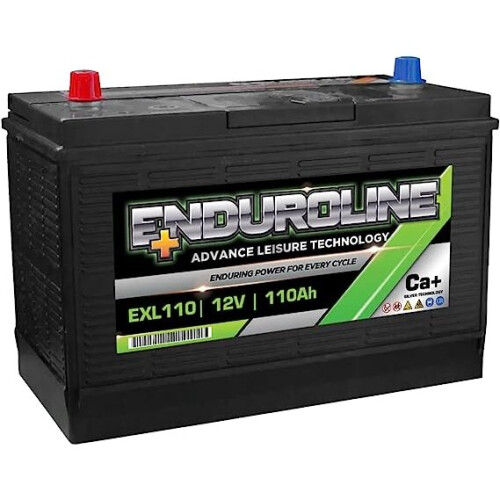

Battery

• Voltage - 12v
• Technology - Wet
• Capacity (C20) - 110Ah
• CCA (EN) - 810 A
• Length - 330mm
• Width - 175mm
• Height in terms - 238mm
