Mono 100W Solar Panel (rigid) Kit 2

Mono 100W Solar Panel (rigid) Kit 2 Description

Our new 9BB 100w Monocrystalline Solar Panels.  These are our highest efficiency yet which now allows these panels to be slightly smaller and still generate the same power!  9BB means 9 silver conductor strips connect each row of silicone cells, which means higher efficiency in pulling every bit of power from all of the cells.  The overall panel efficiency is now up from 18% to 21.2%.

Why Go Solar?

Beat energy inflation, energy security, remote location power sources (save a fortune on armored cabling), mobile power sources, fast payback periods over conventional fuel sources such as diesel generators and hook-ups, keep batteries fully charged at all time as deep discharge shortens life, environmentally friendly power which reduces carbon emissions to slow global warming and climate change.

Monocrystalline Advantages over Cheaper Polycrystalline solar panels

Monocrystalline

• purest silicone 16-20% efficiency
• performs better in lower light levels i.e. in overcast skies
• the longest life with lowest rate of performance loss of only 0.36% per year, therefore a 100w panel would be around 91w after 25 years
• better heat tolerance, i.e. performs better on hot summer days

Polycrystalline

• lower grade silicone 13-16% efficiency
• cheaper production costs
• performance loss 0.64% per year, therefore a 100w panel would be around 84w after 25 years
• slightly lower heat tolerance than mono crystalline solar panels, i.e. excessive heating of the panel causes a reduction in power generation

Applications

Sheds, Stables, Boats, Caravans, Motorhomes, electric fencing, road/ path/ driveway illuminated signage, campsites, yurts, multi-panel off grid power source for small buildings, remote telecomms, mobile food outlets, and many more...

Independent Off-Grid Solar Power Source

One or more solar panels can be connected to a battery bank and power inverter using a solar charge controller. You can therefore have a 240v power supply anywhere in the world without grid supply. Please see our solar power kits.

Technical Specifications

100 Watt Solar Panel (with 1m Cable & solar connection plugs)

Max Power: 100w

Max Power Voltage: 18.0v

Max Current: 5.50A

Open Circuit Voltage: 21.60v

Short Circuit Current: 6.05A

Weight: 7.8kg

Size: 1060 x 540 x 30mm

Power Tolerance: ±3%

Maximum System Voltage: DC1000v

In the event that the solar panel is in shade for a prolonged period, our solar panels has two built-in bypass diodes which will enable the panel to continue generating.

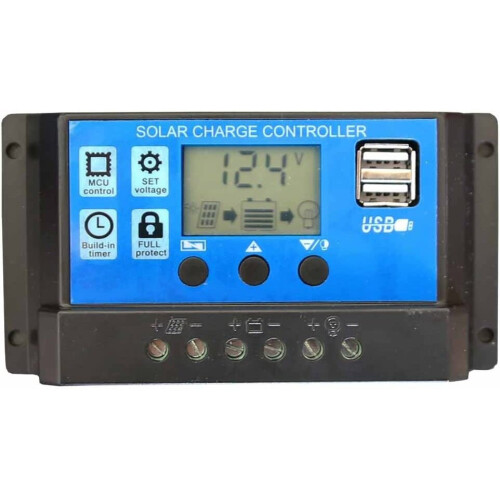

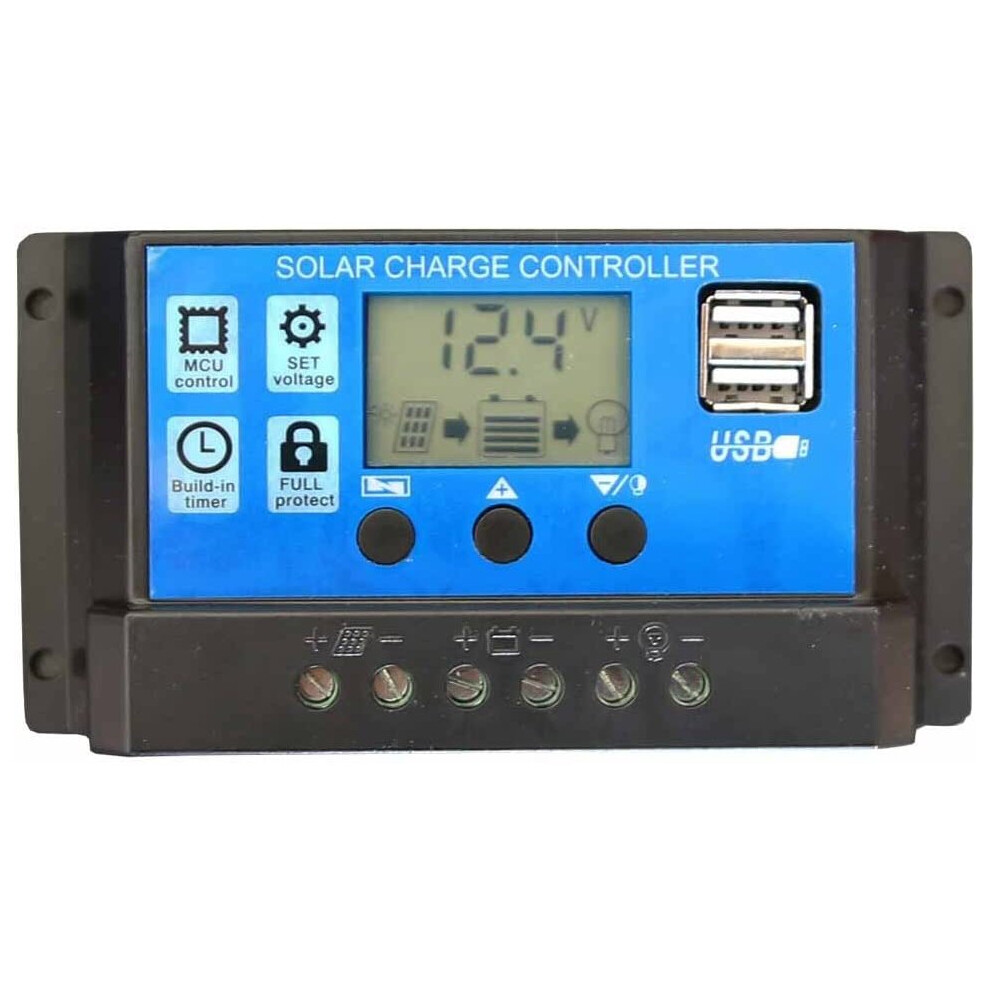

Solar Panel Battery Charge Regulator Controller 12V / 24V Auto Switching

Solar charge controllers are required to regulate the power output from the solar panels to ensure effective charge of a typical 12V or 24V lead acid battery without overload.  PWM (Pulse Wave Modulation) solar charge controller provide a cost effective solar charger for the solar panel outputs in our range. Optimised charge control which helps to prolong the life of the battery. 3-6% more effective than non-PWM charge controllers.  LED indicator light to show battery state.  Uses industrial grade micro-controller chip to work in a wide range of temperatures and humidity.

Warning: The Connection Order Below must be followed

1, Battery Cable, 2 Load Cable, 3, Solar Panel Cable

Do not install the charge controller in a sealed enclosure where battery gases can accumulate.

These charge controllers can be used with one or more 12V batteries where additional storage capacity may be needed.

Solar Charge Controller - Technical

• 10A max Rated Discharge Current and Rated Charge Current.
• Suitable for 12V or 24V systems, auto detecting & auto switching
• Only suitable for lead acid batteries: Sealed wet lead acid, AGM, GEL.  This controller is not suitable for nickel metal hydride, lithium ion or other batteries.
• Maximum solar input; <50V
• Equalisation; Sealed 14.4V, Gel 14.2V
• Float Charge; 13.7V (by default, value adjustable)
• Load outlet discharge stop – 10.7V (by default, value adjustable)
• * Discharge Reconnect – 12.6V (by default, value adjustable)
• USB outlet - 5V/3A maximum.
• Self consumption
• working temperature range -35 to +60 Deg C
• Dimensions - 150 x 78 x 35 mm
• Weight - 150 grams

* Discharge reconnect meaning.  This voltage is user adjustable.  As the load consumes the power within the battery, the voltage eventually drops to 10.7V and the load output of the controller will automatically stop any further charge from protect the battery.  If for example the next day maybe rainy or cloudy day and the battery charges slowly, if the voltage is still below 12.6V, the load output from the controller will still not work.  If the sun comes out in the afternoon, or the next day is much sunnier conditions, once the battery voltage rises above 12.6V, the controller load output will automatically start to work again.  Discharge reconnect is set to 12.6V by default, although you may wish to set this perhaps 12.4V.  Discharge reconnect is aimed at protecting the battery and reducing the depth of discharge cycling.  Lead acid batteries last longer with shallow discharge.

Installation

1, make sure your battery has enough voltage for the controller to recognise the battery type before first installation.

2 the battery cable should be as short as possible to minimise loss.

3, this charge controller is only suitable for regulating solar panels.  Never connect another charging source to this charge regulator.

Product features

• Built in industrial microcontroller
• Large LCD display, all parameters are adjustable
• Full four-stage PWM charge management
• Built in short circuit protection, open circuit protection, reverse protection, overload protection.
• Dual MOSFET reverse current protection, low heat production.

Note:

Do not install the charge controller in a sealed enclosure where battery gases can accumulate.

These charge controllers can be used with one or more 12V batteries where additional storage capacity may be needed, or a combination of series and parallel batteries to make a 24V energy storage system.

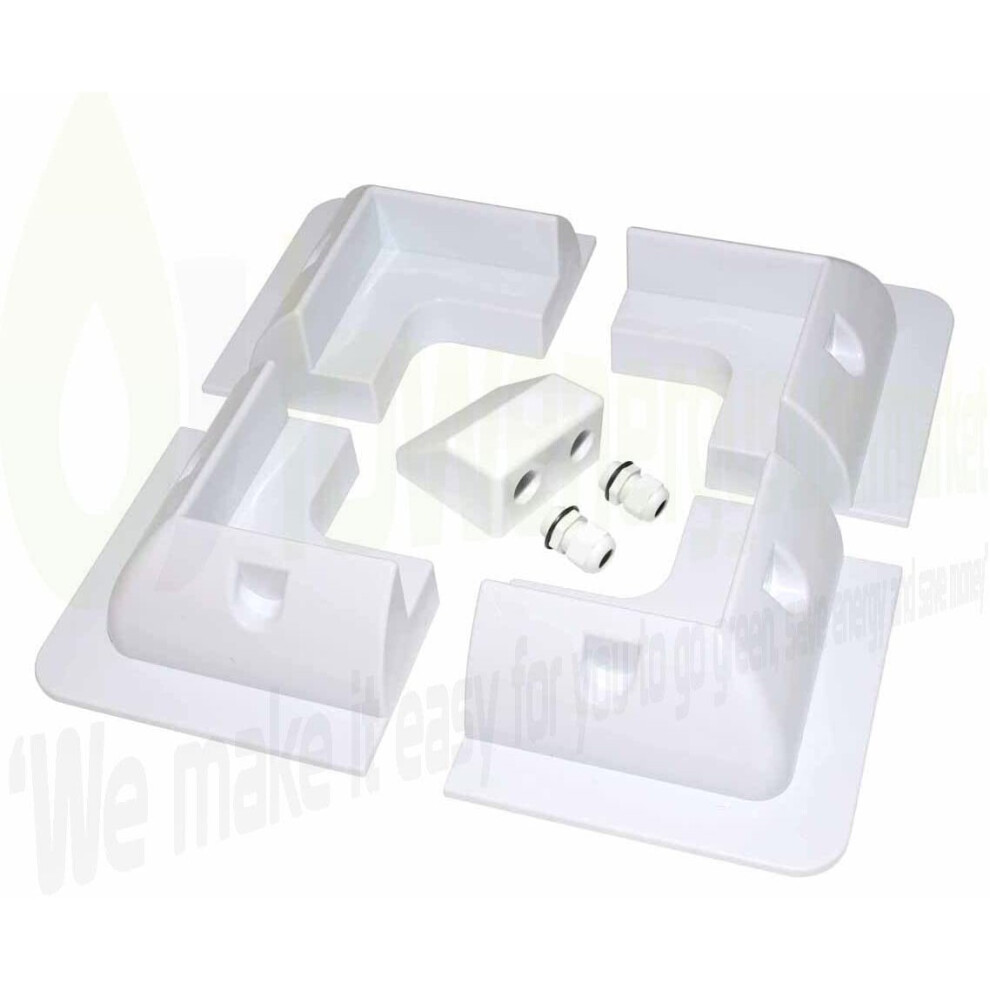

4pcs ABS moulded plastic brackets (4 corners brackets)

Ideal for bonding to the roof - no need for drilling; Strong side support for larger solar panels; Great for motorhomes, campervans, caravans, lorries, buses, boats and yachts; Can also be used on flat roofs of buildings, sheds, garages or other flat surfaces; Easy Installation, holes should be drilled in each bracket, and corresponding holes in the solar panel frame on each side; then brackets should be fixed to the solar panel using self-tapping screws (not included). Finally, brackets can be bonded to the roof using an appropriate sealant or adhesive tape (not included) - sealant is recommended for stronger bonding.

Material: tough heavy duty moulded plastic, Colour: white, brackets dimensions 15x15x6.5cm;  Cable Entry - Watertight cable entry for 4-12mm cables, Easily bonded to the surface using a suitable sealant. Can be used as a single cable gland (plugs for closing cable holes included), Material: tough moulded plastic, colour: white, Size: 12x10x5cm.

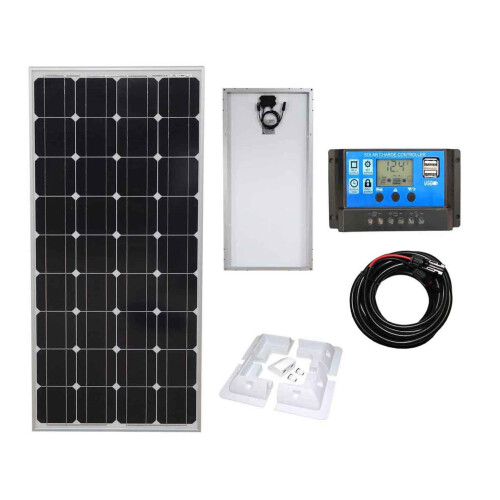

Solar Kit Contents

• 100 Watt Monocrystalline Solar Panel with 1M cable & solar connection plugs attached
• 5 Metre Solar Power Extension Cable with solar connection plugs
• 10A PWM Solar Charge Controller
• 4X corner &  cable entry
