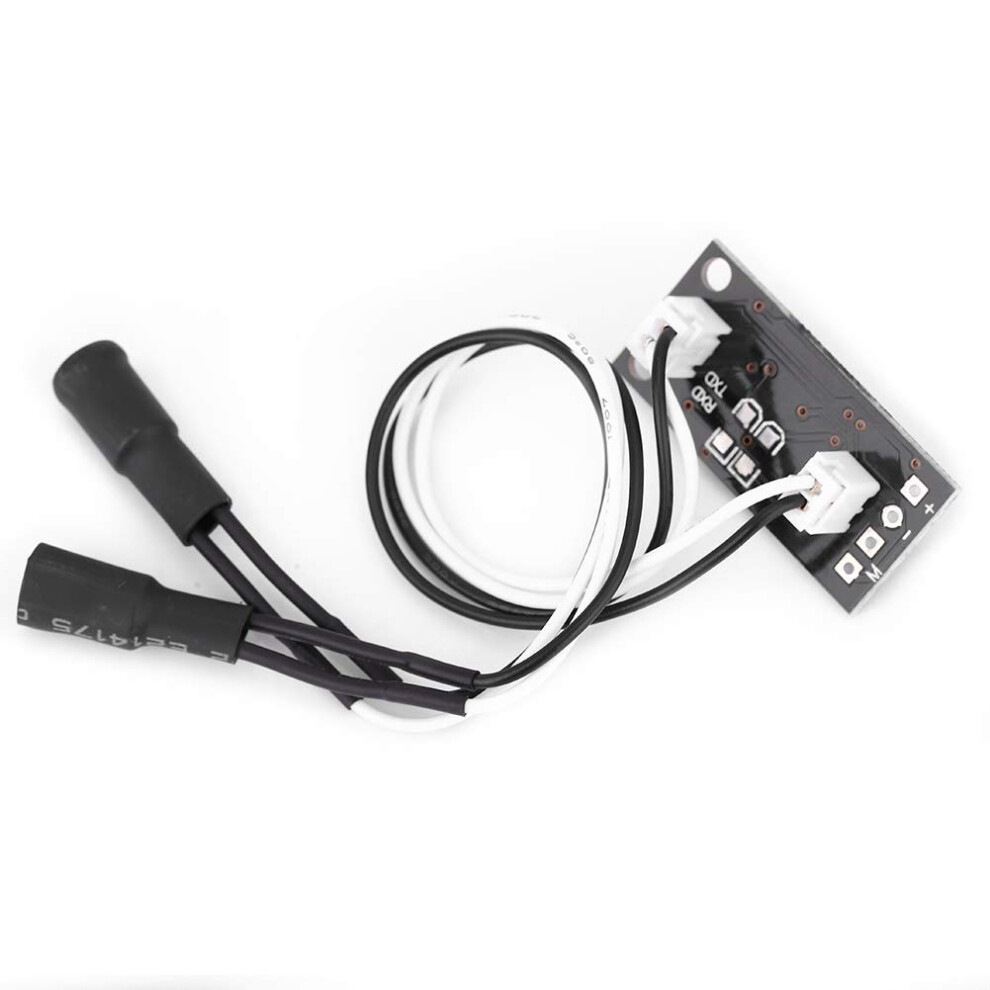

Single Axis Solar Tracking Module 5V Automatic Sun Tracker with Accurate Light Detection

Single Axis Solar Tracking Module 5V Automatic Sun Tracker with Accurate Light Detection Description

Singleaxis automatic solar tracking module designed to improve solar energy capture by following the sun throughout the day. The module uses lightsensing components and a shelter system to detect light direction and adjust panel position for more consistent power generation. Key benefits efficient tracking: Singleaxis automatic tracking keeps the panel aligned with the strongest light source to increase energy collection compared to a fixed panel. Accurate light detection: Photoresistor sensors combined with a shielding system measure light strength and direction, allowing precise adjustments to panel position. Tunable performance: Designed to work with a reduction motor so motor speed can be controlled for smoother, more accurate tracking and reduced jitter. Reliable power requirements: Operates from a regulated 5 to 5.5 V DC supply. For improved conversion and stable operation, do not connect the solar panel directly to the module. Features and compatibility Tracking type: Singleaxis automatic tracking for east to west sun movement. Sensor system: Photoresistorbased light detection with a shelter arrangement to compare light levels and determine movement direction. Motor compatibility: Intended for use with a reduction gear motor; speed control is recommended to optimize tracking behavior. Power input: Requires a regulated 5 to 5.5 V DC supply. Direct connection of the solar panel to the module is not recommended. Practical applications Experimental and prototype solar projects where automatic sun tracking is needed to evaluate panel output over a day. Small offgrid or portable solar setups that use a separate regulated power source and a geared motor to improve energy yield. Educational kits and demonstration systems for learning about solar tracking principles and sensorcontrolled motion. Usage notes Use a regulated DC supply of 5 to 5.5 V for stable operation. Pair the module with a reduction motor and include motor speed control to finetune tracking response. Avoid direct connection of the solar panel to the module to maintain conversion efficiency and prevent unstable power input. This module provides a straightforward way to add singleaxis automatic tracking to small solar systems, educational rigs, and prototype installations while allowing motor speed tuning and reliable operation with a regulated power source.
