Solar Panel Kit 500w 650w MPPT Charging Controller Boat Mount 24vOnly

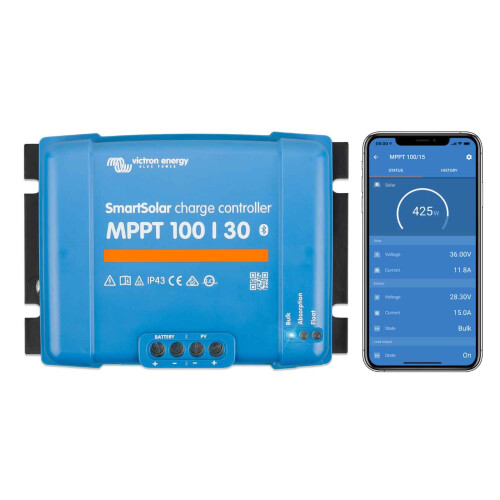

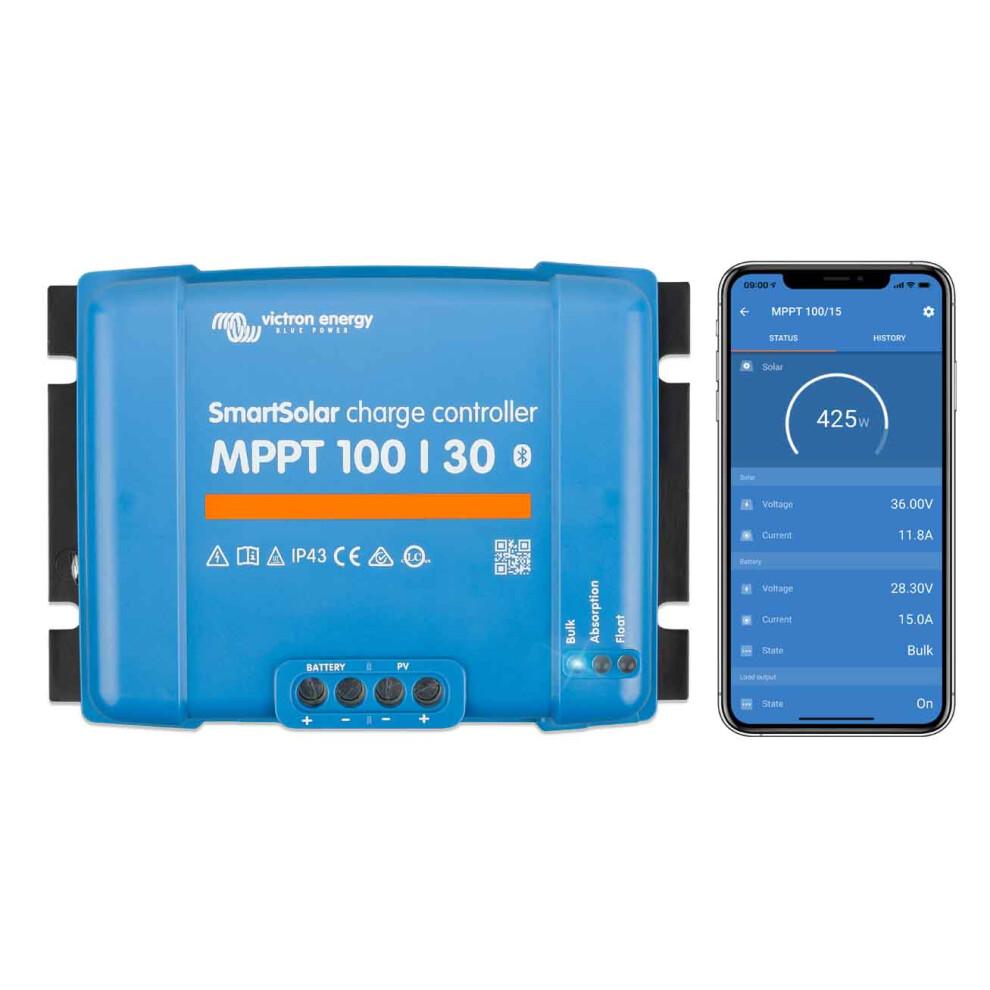

MPPT Smart 100/30

Smart Solar MPPT 100/30A is one of the leading MPPT solar charge controllers on the market. The controller gathers power from your solar panels and safely charges your batteries. MPPT: Ultra Fast Maximum Power Point Tracking ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing. Built-in bluetooth by pairing with your smartphone and using the Connect App allows you to monitor performance, change settings and update firmware. The intelligent load output function prevents damage by not allowing batteries to run ‘flat'. MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Technical Specification:

• Battery voltage 12/24V Auto Select
• Rated charge current 30A
• Nominal PV power, 12V 1a,b) 440W
• Nominal PV power, 24V 1a,b) 880W
• Maximum PV open circuit voltage 100V
• Max. PV short circuit current 2) 35A
• Maximum efficiency 98%
• Self-consumption 12V: 30 mA 24V: 20 mA
• Charge voltage ‘absorption' Default setting: 14,4V / 28,8V (adjustable)
• Charge voltage ‘float' Default setting: 13,8V / 27,6V (adjustable)
• Charge algorithm multi-stage adaptive
• Temperature compensation -16 mV / °C resp. -32 mV / °C
• Protection
• PV reverse polarity
• Output short circuit
• Over temperature
• Operating temperature -30 to +60°C (full rated output up to 40°C)
• Humidity 95%, non-condensing
• Data communication port VE.Direct

ENCLOSURE

• Colour Blue (RAL 5012)
• Power terminals 16 mm² / AWG6
• Protection category IP43 (electronic components), IP22 (connection area)
• Weight 1,3 kg
• Dimensions (h x w x d) 130 x 186 x 70 mm

Solar PV to controller cable

5m twin core 2.5mm2 cable with male and female solar connectors to one end. Other end for terminal connection to solar controller

Battery to solar controller cable

Battery to solar controller cable, 2x1.5m Red/Black 4mm2 single core cable, in-line fuse holder, 30A spade fuse, M8 ring terminals. Other end for terminal connection to solar controller

Flip mounts large height

Tilting solar panel mountings. Tilt your panels towards the sun to achieve optimal power generation. More generated wattage will be achieved compared to panels laid flat. Allows for mounting onto curved boat roofs. Arrowhead design to ‘hook' the raised panel in place and stop it dropping down with vibration or high winds. Adjustable height and solar panel angle. Solar panels can be laid flat when not in use by sliding to the bottom. Max 32 degrees tilt.

2 x Y-Branch
