Victron 100w Solar Panel Kit battery charging PWM-USB Controller brackets

Victron 100w Solar Panel Kit battery charging PWM-USB Controller brackets Description

Our new 9BB 100w Monocrystalline Solar Panels.  These are our highest efficiency yet which now allows these panels to be slightly smaller and still generate the same power!  9BB means 9 silver conductor strips connect each row of silicone cells, which means higher efficiency in pulling every bit of power from all of the cells.  The overall panel efficiency is now up from 18% to 21.2%.

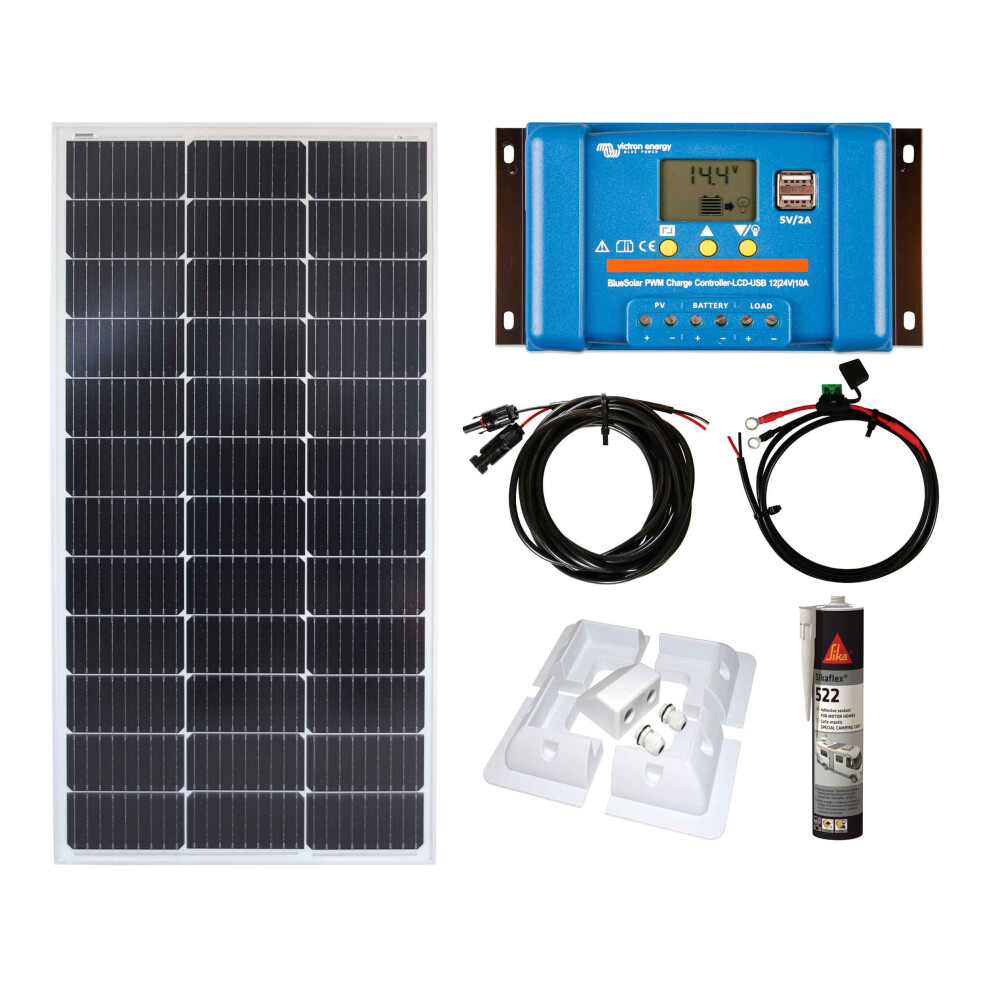

Solar Kit Contents:

• 1 x 100w Mono Solar Panel by Lowenergie™
• 10A PWM Charge Controller by Victron Energy™
• Solar PV to controller cable
• Battery to solar controller cable

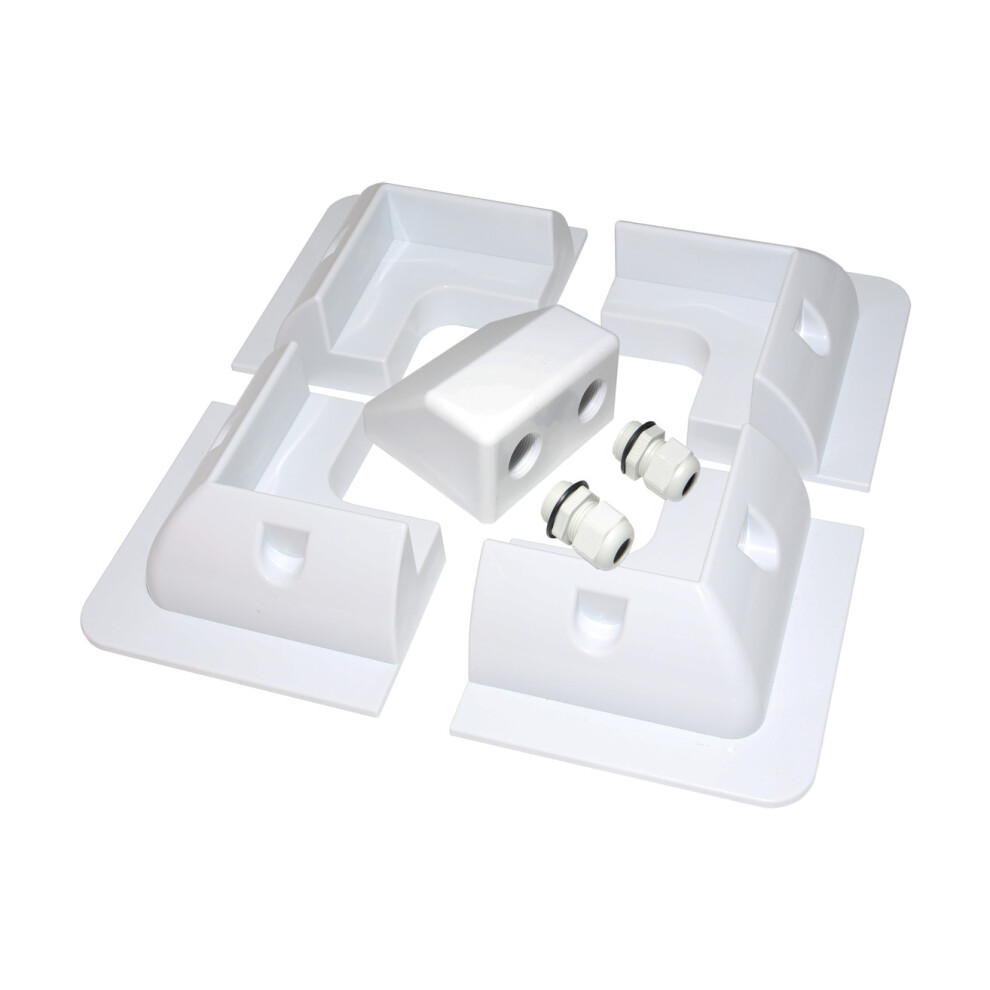

• 4 White ABS Corner mounting brackets
• 1 Twin cable entry

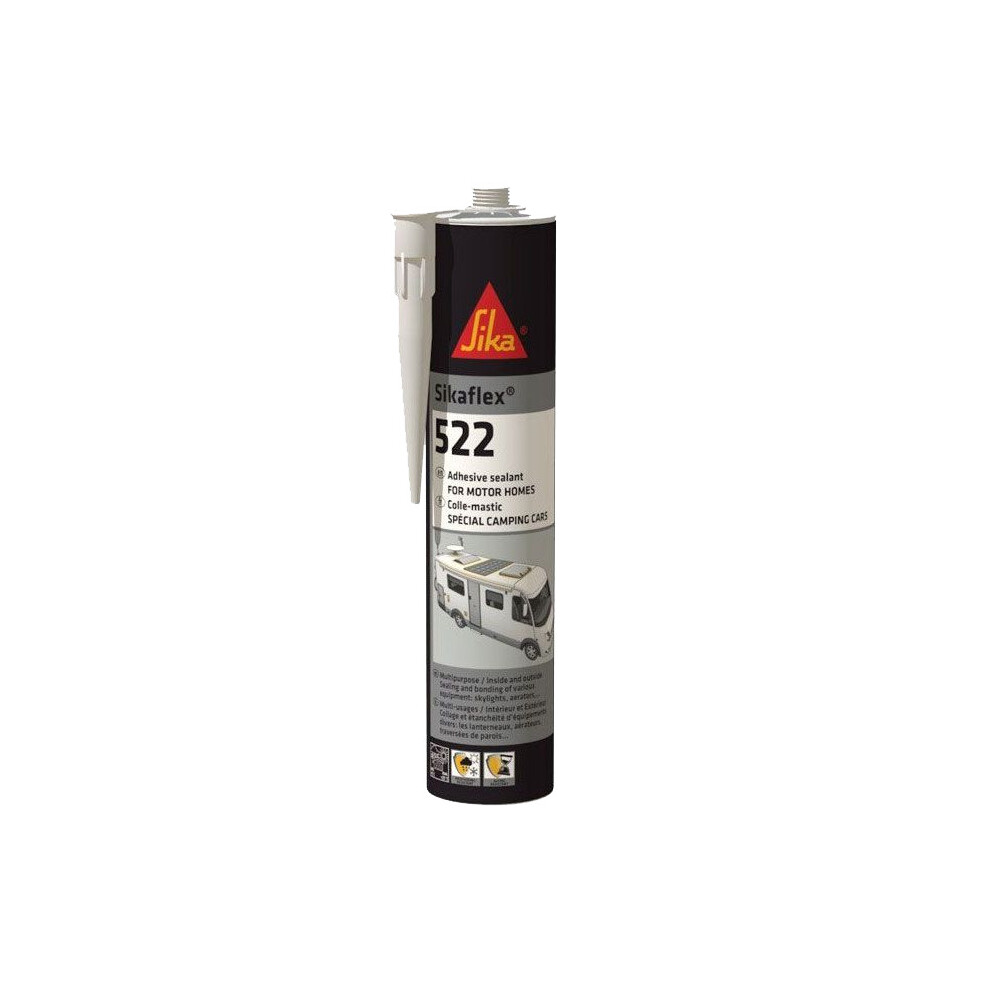

• 1 Tube Sikaflex

Technical Specifications

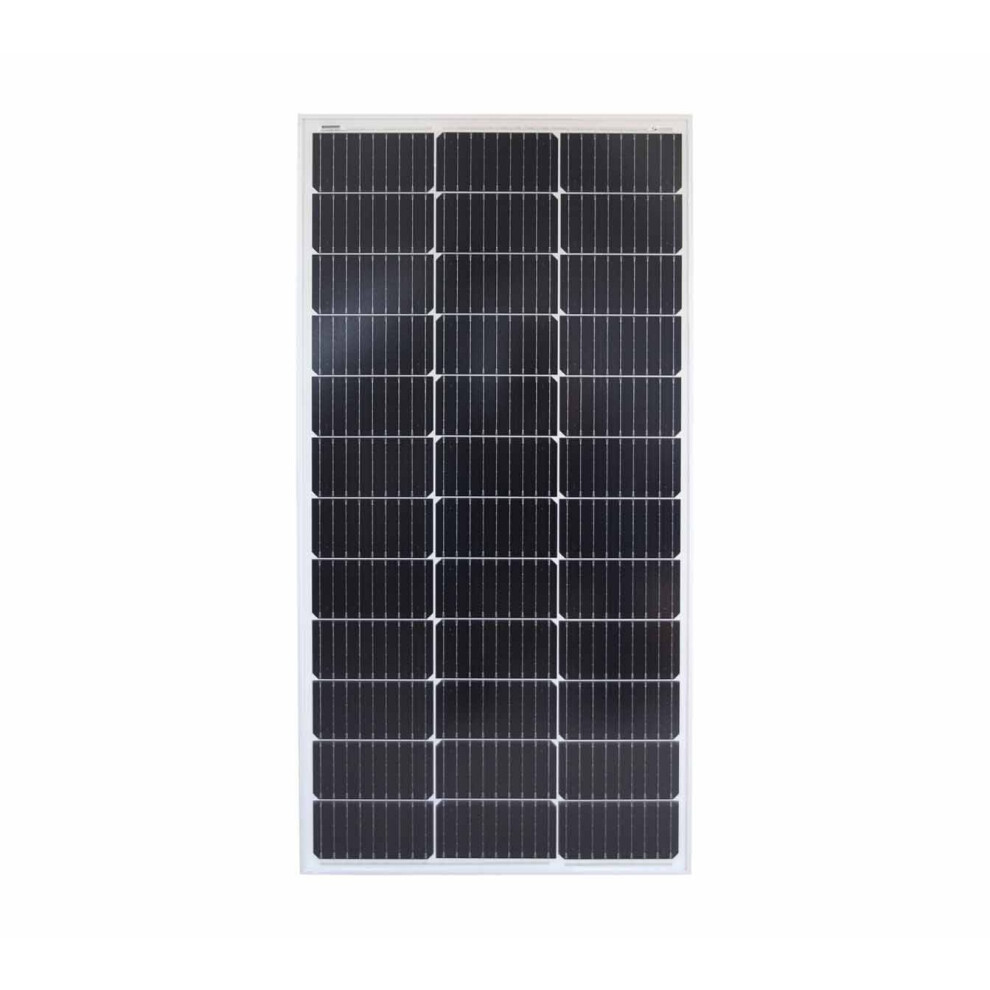

100 Watt Solar Panel - (with 1m Cable & Solar Connector Plugs)

Max Power: 100w

Max Power Voltage: 18.0v

Max Current: 5.50A

Open Circuit Voltage: 21.60v

Short Circuit Current: 6.05A

Weight: 7.8kg

Size: 1060 x 540 x 30mm

Power Tolerance: ±3%

Maximum System Voltage: DC1000v

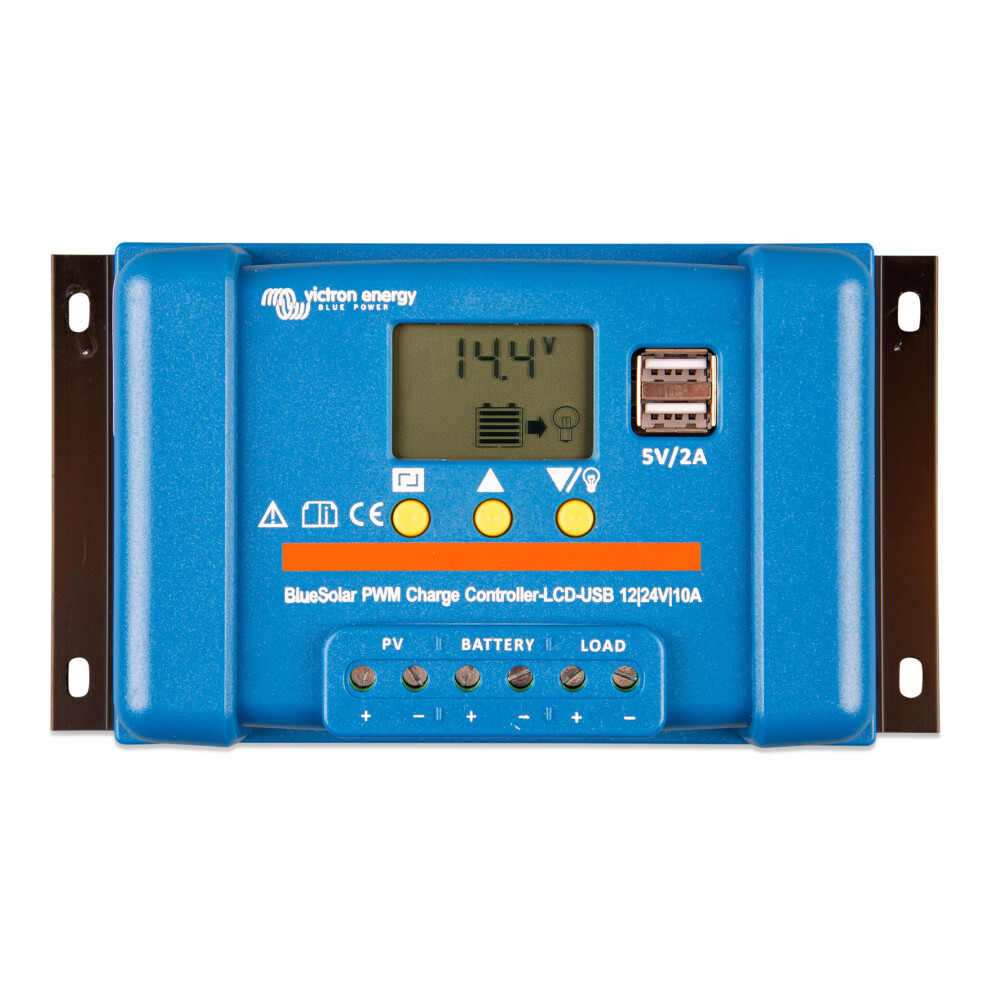

Technical - Victron Energy BlueSolar PWM-LCD & USB

• Battery Voltage 12/24 V
• Rated charge current 10A
• Automatic load disconnect Yes
• Maximum solar voltage 28V / 55V
• Self-consumption < 10 mA
• Load output Manual control + low voltage disconnect +timer
• Protection: Battery reverse polarity (fuse) Output short circuit Over temperature & Overload protection
• Shut down after 60 s in case of 130% load
• Shut down after 5 s in case of 160% load
• Short circuit: immediate shut down
• Grounding Common positive
• Operating temp. range -35 to +60°C (full load)
• Humidity (non-condensing) Max 95%

Battery

• Charge voltage ‘absorption' Factory setting: 14,4V / 28,8V
• Charge voltage ‘float' (2) Factory setting: 13,7V / 27,4V
• Low voltage load disconnect Factory setting: 11,2V / 22,4V
• Low voltage load reconnect Factory setting: 12,6V / 25,2V

USB

• Voltage 5V
• Current 2A (total from 2 outputs)

Enclosure

• Protection class IP20
• Terminal size 6 mm² / AWG10
• Weight 0,15kg
• Dimensions (h x w x d) 96 x 169 x 36 mm
• Liquid Crystal Display
• Two 5 Volt USB outputs
• Lighting control function, fully programmable
• Three stage battery charging (bulk, absorption, float), fully programmable
• Load output with low voltage and manual disconnect (programmable)
• Load output protected against over load and short circuit
• Protected against reverse polarity connection of the solar panels and/or battery

1) For 12V use 36 cell solar panels , For 24V use 72 cell solar panels or 2x 36 cell in series

2) The controller switches to the lower float voltage level 2 hours after the absorption voltage has been reached. Whenever the battery voltage becomes lower than 13V, a new charge cycle is triggered.
