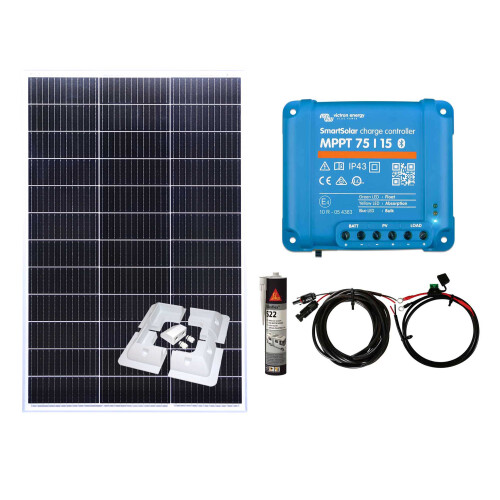

Victron 150w Mono Solar Panel Kit battery charging MPPT Controller brackets

• 1 x 150w Mono Solar Panel by Lowenergie™
• 15A Smart MPPT Charge Controller by Victron Energy™
• Solar PV to controller cable
• Battery to solar controller cable
• 4 White ABS Corner mounting brackets
• 1 Twin cable entry
• 1 Tube Sikaflex

Technical Specifications

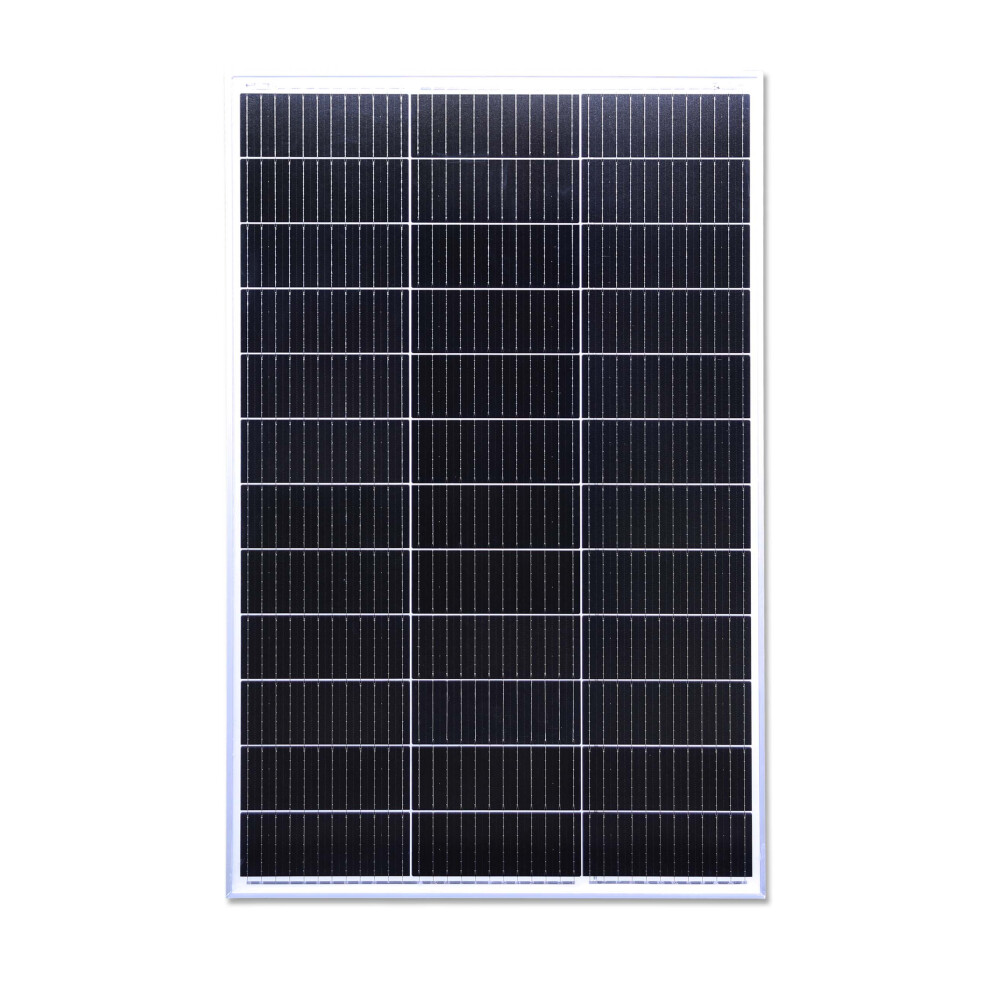

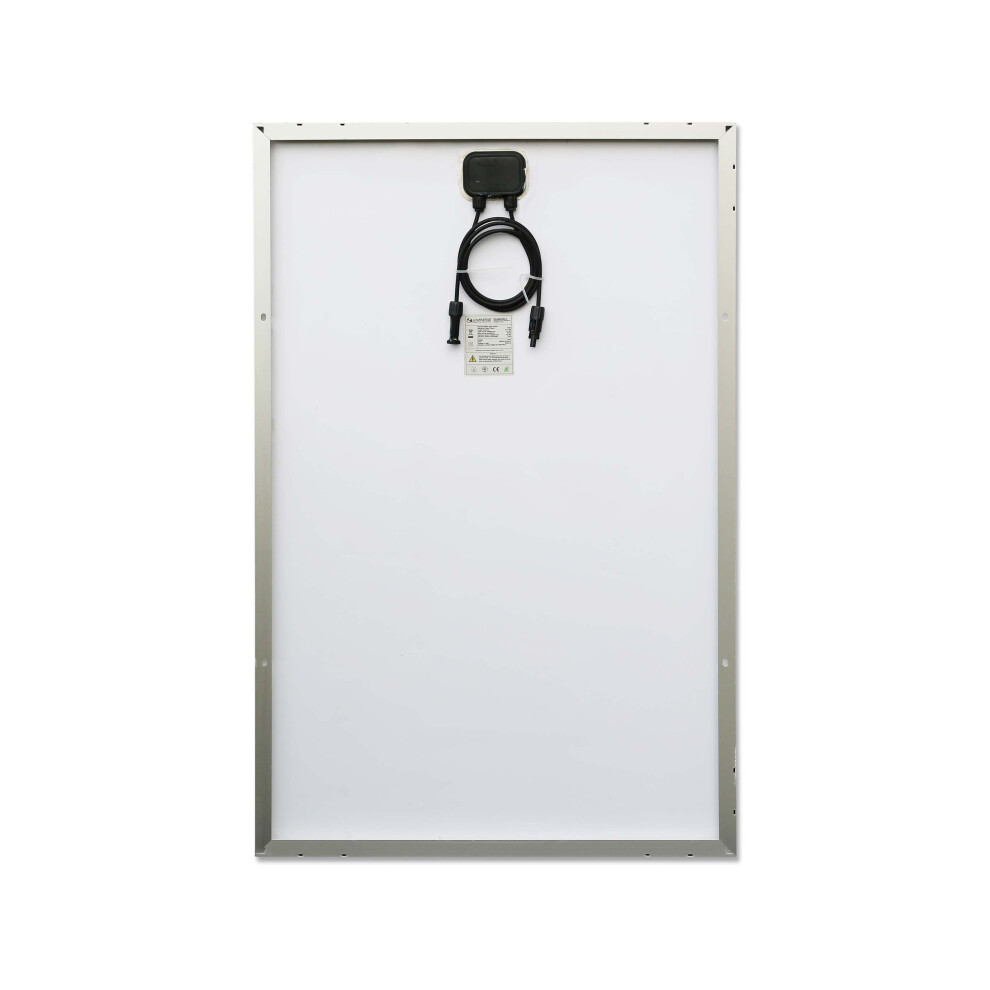

150-Watt Solar Panel (with 1m Cable & MC4 Connector Plugs)

Maximum Power (Pmax): 150W

Maximum Power Voltage (VMP): 20.16V

Maximum Power Current (IMP): 7.45A

Open Circuit Voltage (VOC): 24.19V

Short Circuit Current (ISC): 8.05A

Weight: 7.2KG

Size: 1060 x 670 x 30mm

Power Tolerance: +/-3%

Maximum System Voltage: DC1000V

Number of cells: 36

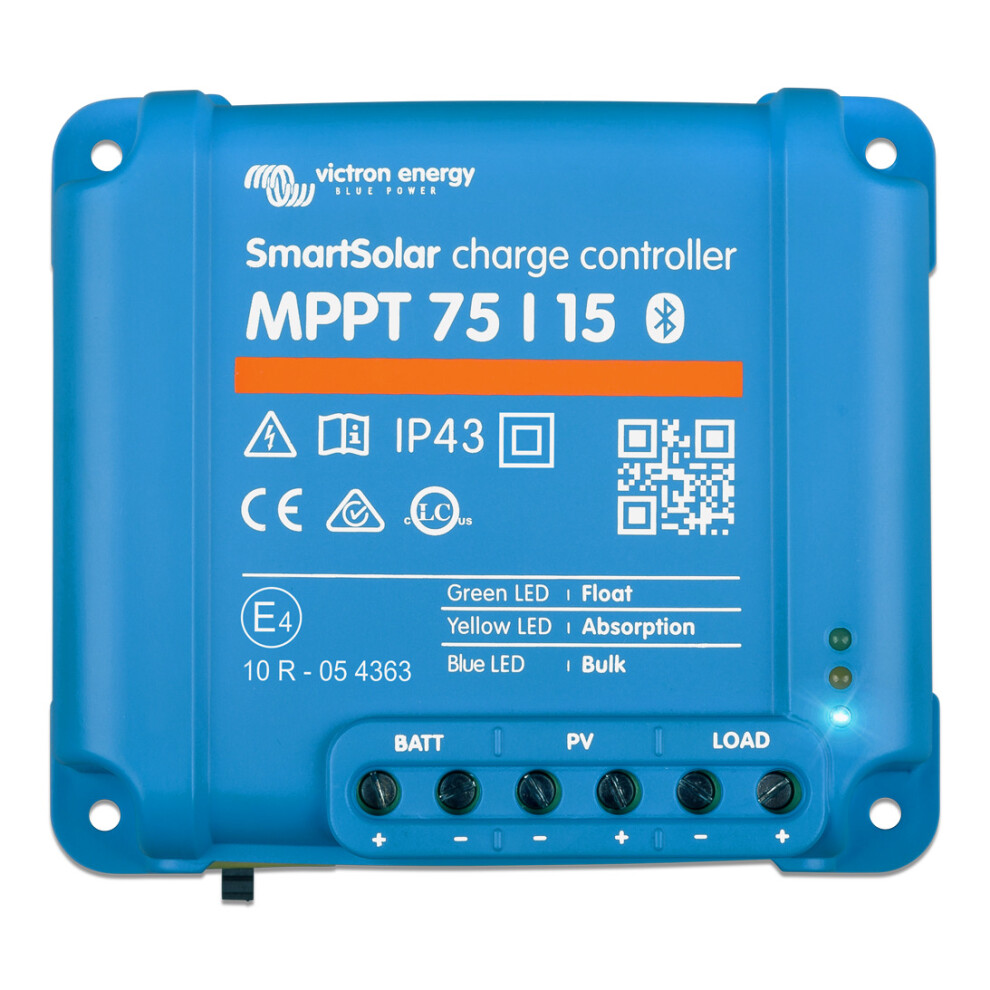

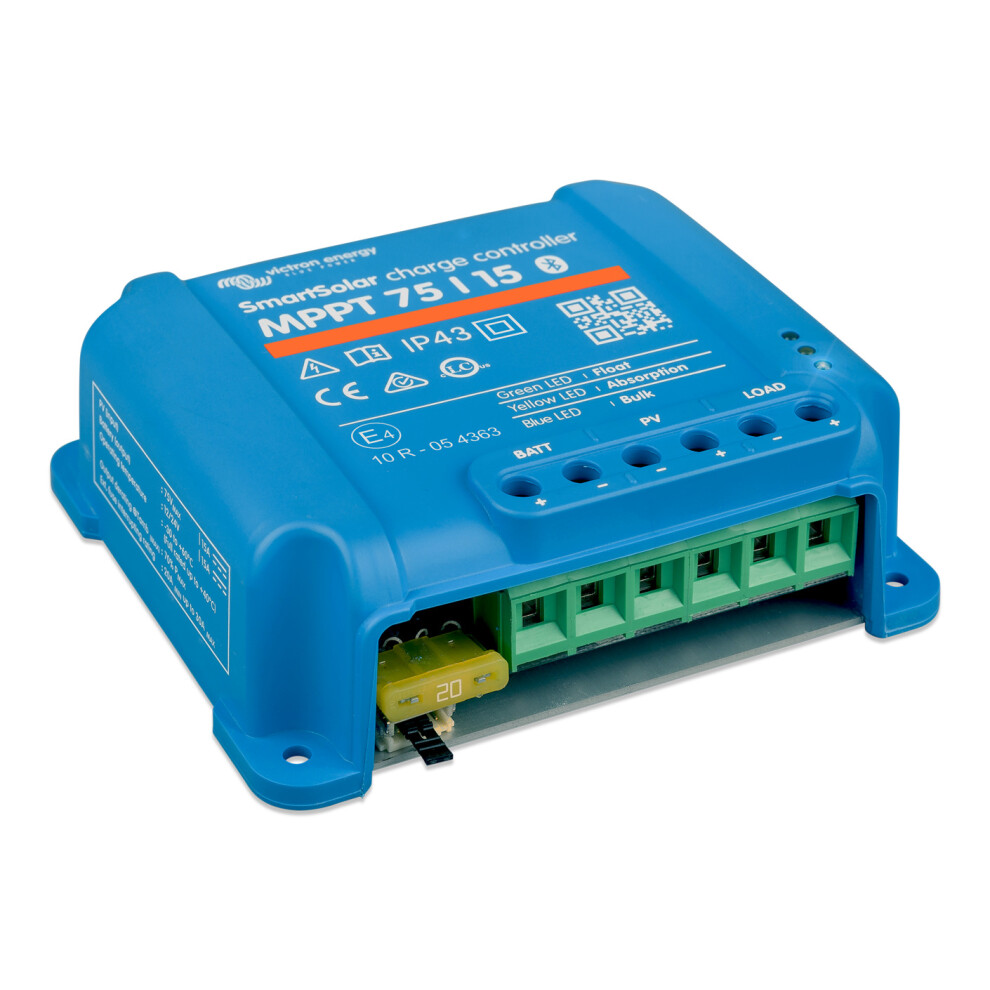

SmartSolar Charge Controller MPPT 75/15

• Battery voltage (auto select) 12/24V
• Rated charge current 15A
• Nominal PV power, 12V 1a,b) 220W
• Nominal PV power, 24V 1a,b)  440W
• Max. PV short circuit current 2) 15A
• Automatic load disconnect Yes
• Max. PV open circuit voltage 75V
• Peak efficiency 98%
• Self-consumption – load on 12V: 19 mA 24V: 16 mA
• Self-consumption – load off 12V: 10 mA 24V: 8 mA
• Charge voltage ‘absorption' 14,4V / 28,8V (adjustable)
• Charge voltage ‘float' 13,8V / 27,6V (adjustable)
• Charge algorithm multi-stage adaptive
• Temperature compensation -16 mV / °C resp. -32 mV / °C
• Max. continuous load current 15A
• Low voltage load disconnect 11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm
• Low voltage load reconnect 13,1V / 26,2V / 52,4V or 14V / 28V / 56V or Battery Life algorithm
• Protection Output short circuit / Over temperature
• Operating temperature -30 to +60°C (full rated output up to 40°C)
• Humidity 95%, non-condensing
• Data communication port VE.Direct (see the data communication white paper on VE website)

ENCLOSURE

• Colour Blue (RAL 5012)
• Power terminals 6 mm² / AWG10
• Protection category IP43 (electronic components), IP22 (connection area)
• Weight 0,5 kg
• Dimensions (h x w x d) 100 x 113 x 40 mm

STANDARDS
Safety EN/IEC 62109-1, UL 1741, CSA C22.2

1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5V for the controller to start.
Thereafter the minimum PV voltage is Vbat + 1V
2) A PV array with a higher short circuit current may damage the controller

Victron Energy part number SCC075015060R

Victron Energy are a Dutch company who lead in the field of off- grid solar products.

Solar Panels to Controller Cable

5m Twin core 2.5mm2 cable with male and female connectors to one end.

Solar controller to Battery Cable

1.5m, 2 Core 2.5mm2 AMC round profile cable, in-line fuse, 30A spade fuse M8 ring terminals.

All cabling carefully design to minimise voltage drops and maintain maximum system efficiency. TUV Approved

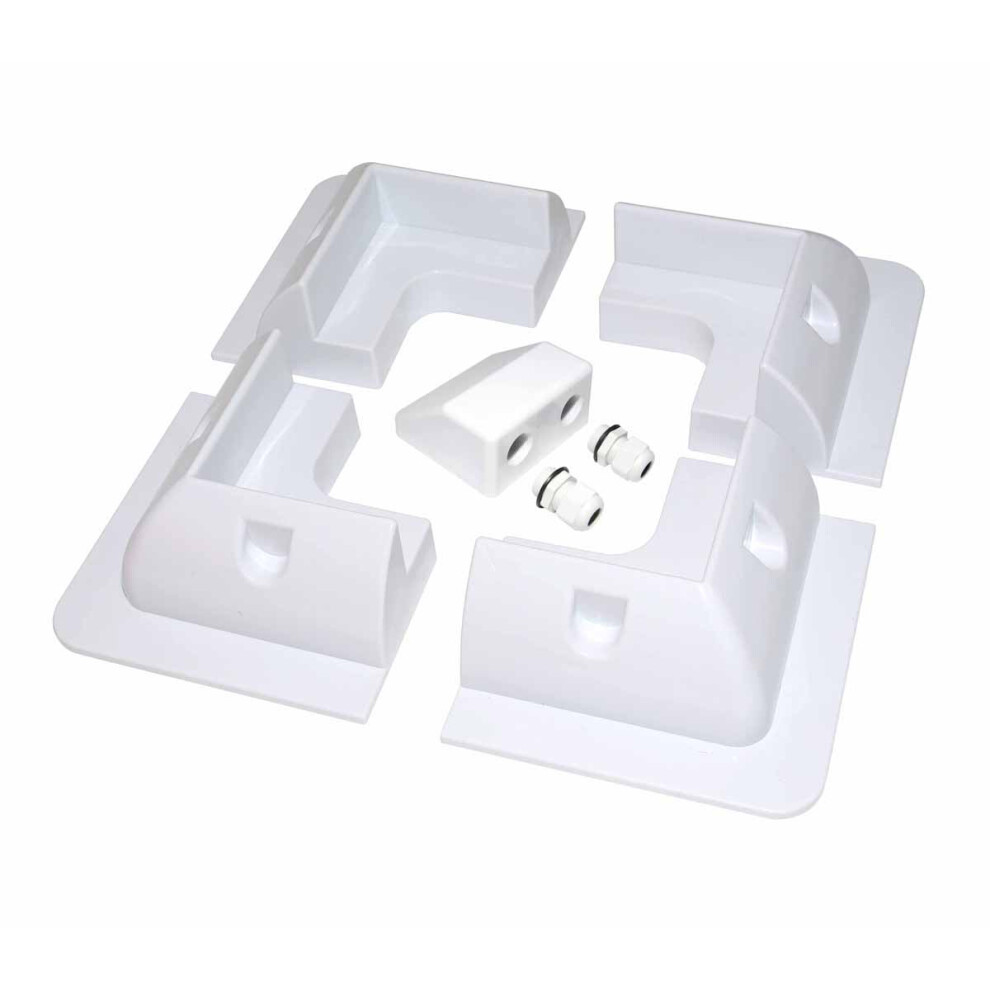

Solar Corner Brackets

• ABS
• 4 Corners
• White
• Size per bracket 15x15x 6.5cm.
• Weight (4 brackets) 1.6kg

Easy Installation, holes should be drilled in each bracket, and corresponding holes in the solar panel frame on each side; then brackets should be fixed to the solar panel using self-tapping screws (not included).

Cable Entry

• ABS
• Twin cable entry for 4-12mm cables
• White
• Watertight
• Size: 12x10x5cm

Product Warranties

Solar Panel = 10 Year for materials and workmanship

Charge Controller = 5 Year Victron Energy

All other components have a 12 month warranty.

Power Output Warranty is at least 90% maximum power for first 10 years of use and;

Power Output Warranty of at least 80% maximum power output for up to 25 years use
