Victron 150w Mono Solar Panel Kit battery charging MPPT Controller Flip Mounts

Victron 150w Mono Solar Panel Kit battery charging MPPT Controller Flip Mounts Description

Solar Kit Contents:

Technical Specifications

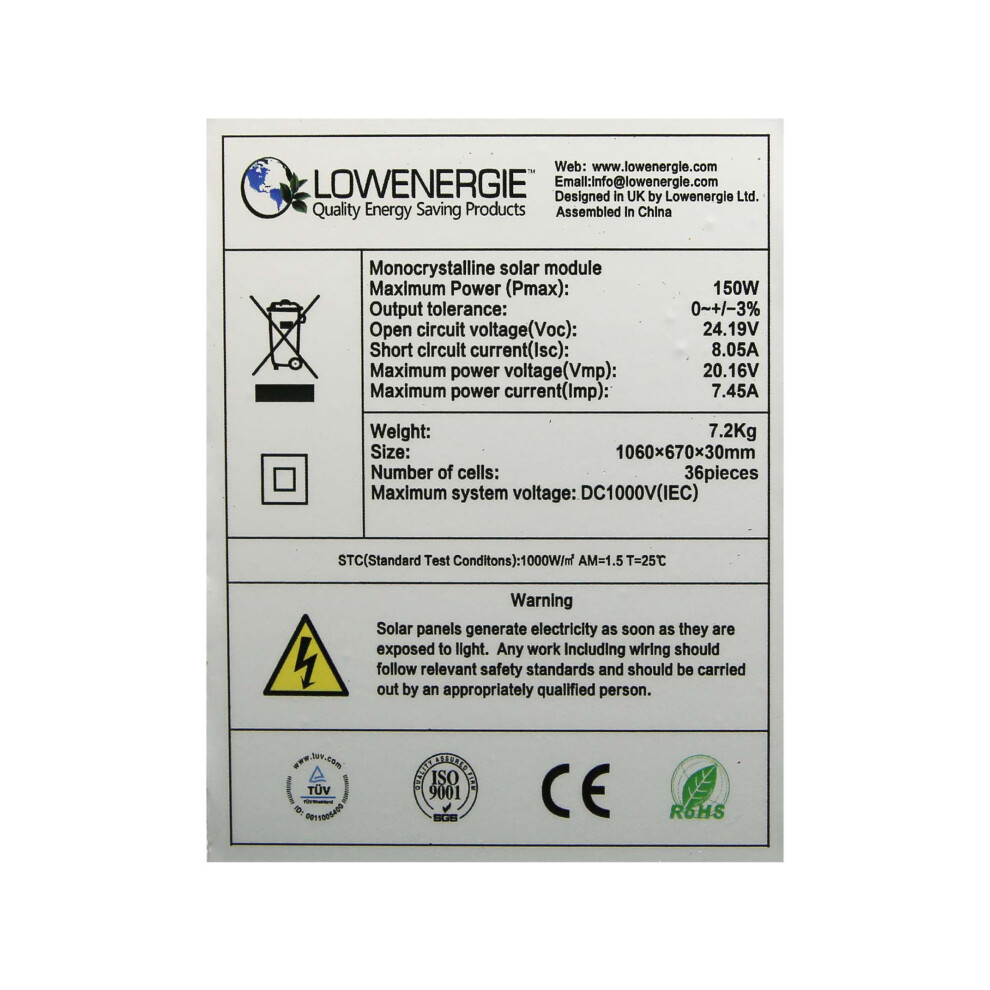

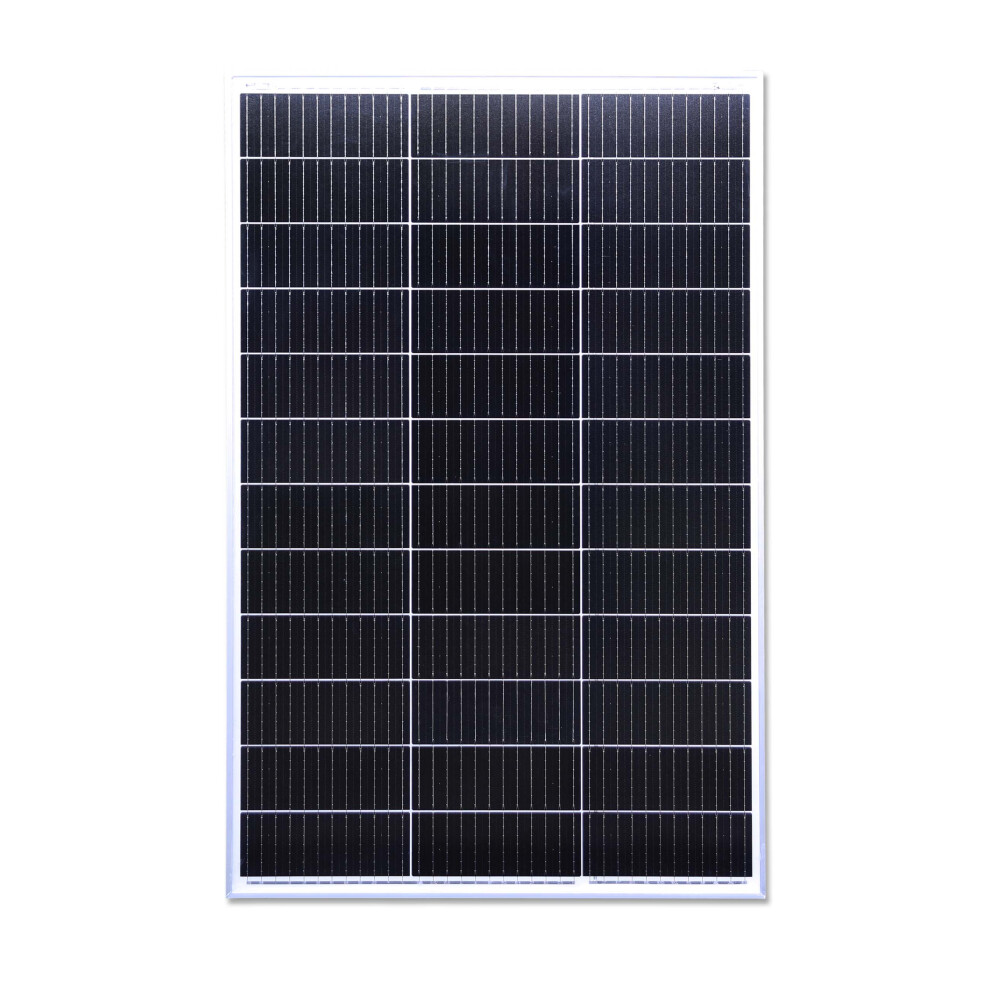

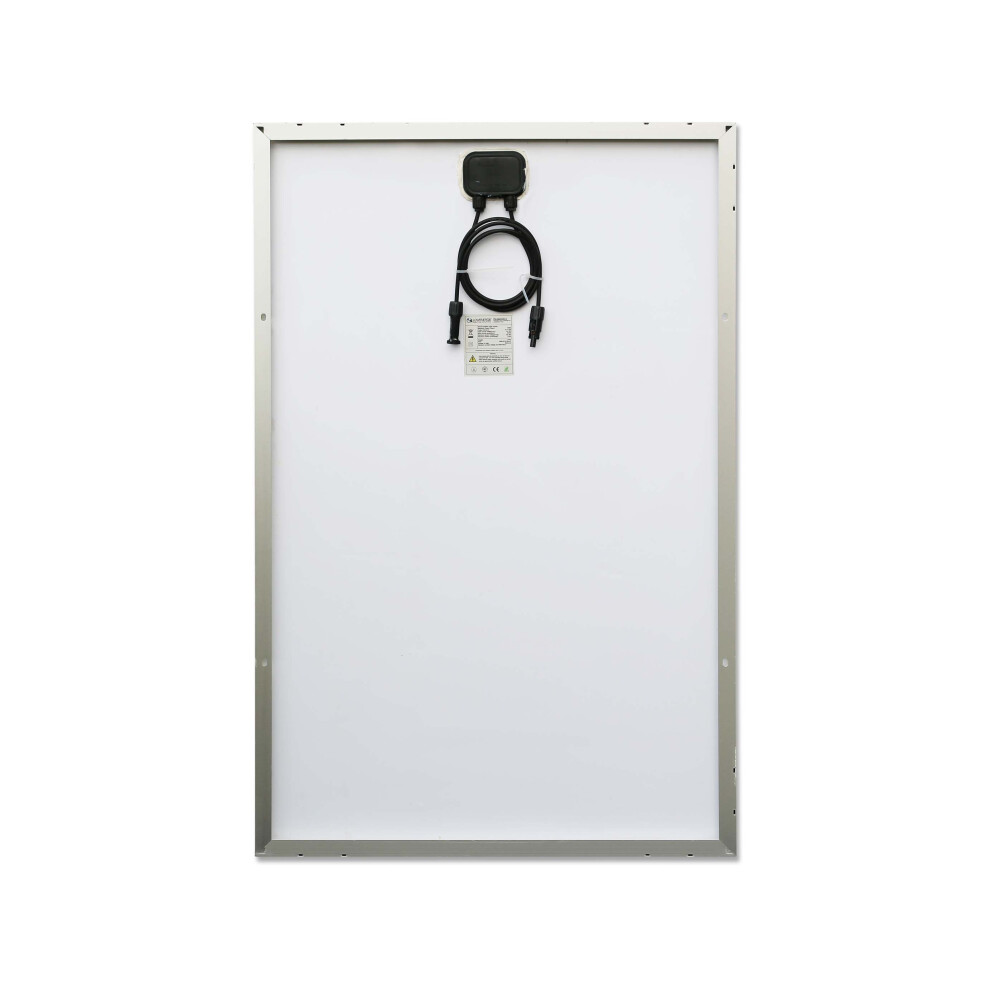

150-Watt Solar Panel (with 1m Cable & MC4 Connector Plugs)

Maximum Power (Pmax): 150W

Maximum Power Voltage (VMP): 20.16V

Maximum Power Current (IMP): 7.45A

Open Circuit Voltage (VOC): 24.19V

Short Circuit Current (ISC): 8.05A

Weight: 7.2KG

Size: 1060 x 670 x 30mm

Power Tolerance: +/-3%

Maximum System Voltage: DC1000V

Number of cells: 36

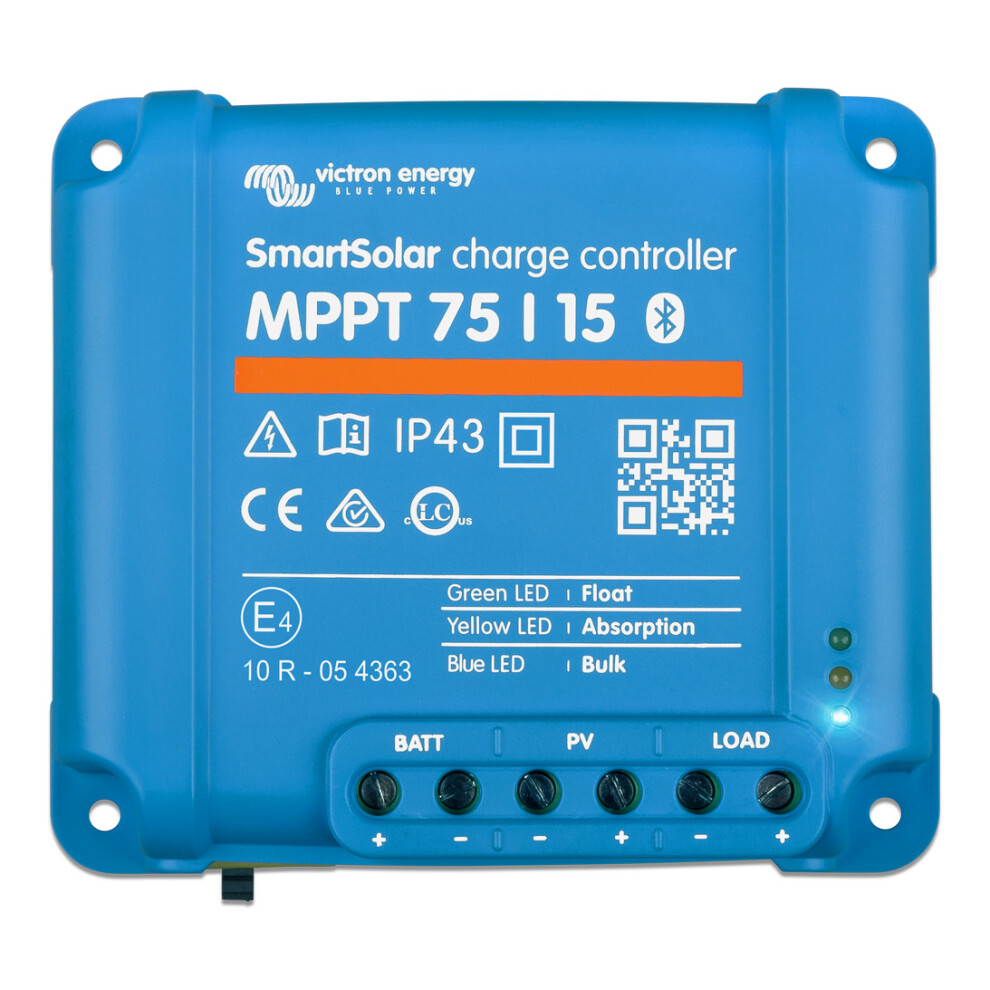

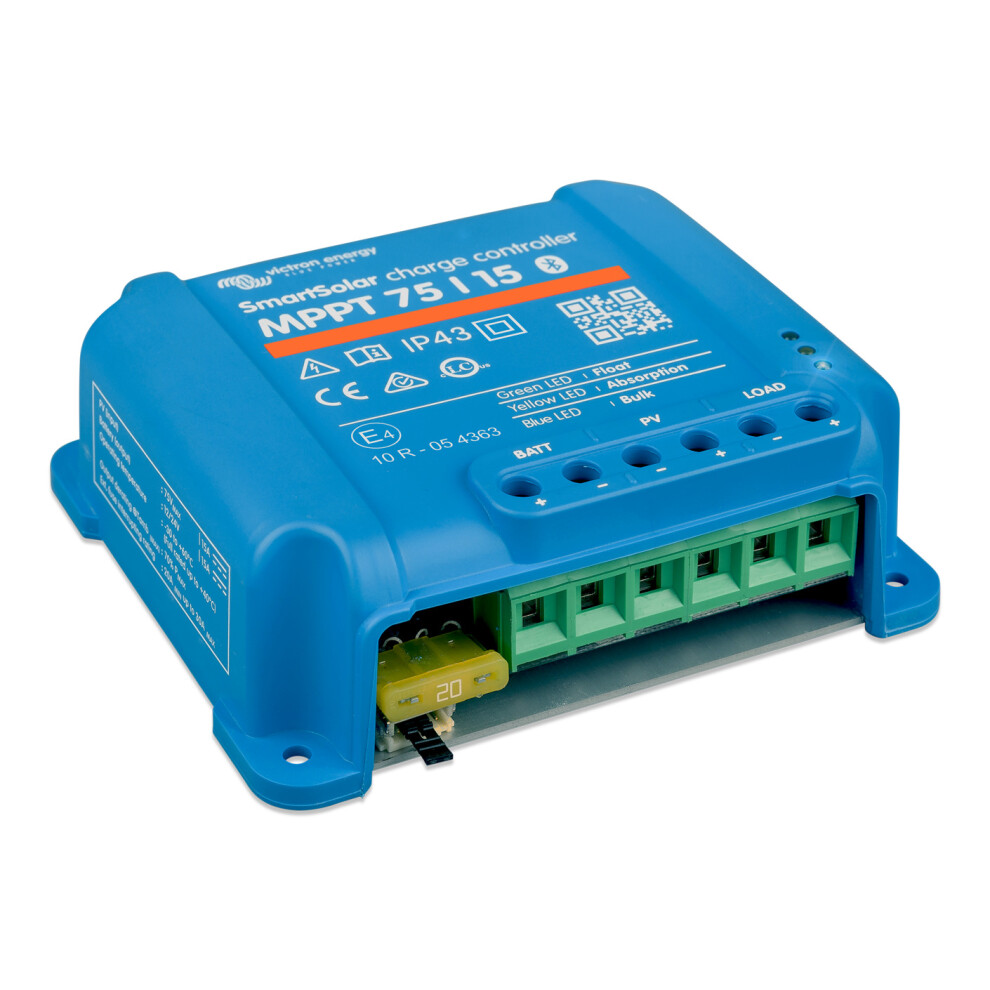

Technical - Victron SmartSolar Charge Controller MPPT 75/15

Controller Specification:

• Dimensions: 100 x 113 x 40 mm
• Weight: 500g
• Rated charging & load current: 15 Amps
• Maximum voltage input: 28V/55V
• Rated Voltage: 12V & 24V
• Protected against reverse polarity connection of the solar array and/or battery.

Solar Panels to Controller Cable

• 5m Twin core 2.5mm2 cable with male and female connectors to one end.

Solar controller to Battery Cable

• 1.5m, 2 Core 2.5mm2 AMC round profile cable, in-line fuse, 30A spade fuse M8 ring terminals.

All cabling carefully design to minimise voltage drops and maintain maximum system efficiency. TUV Approved

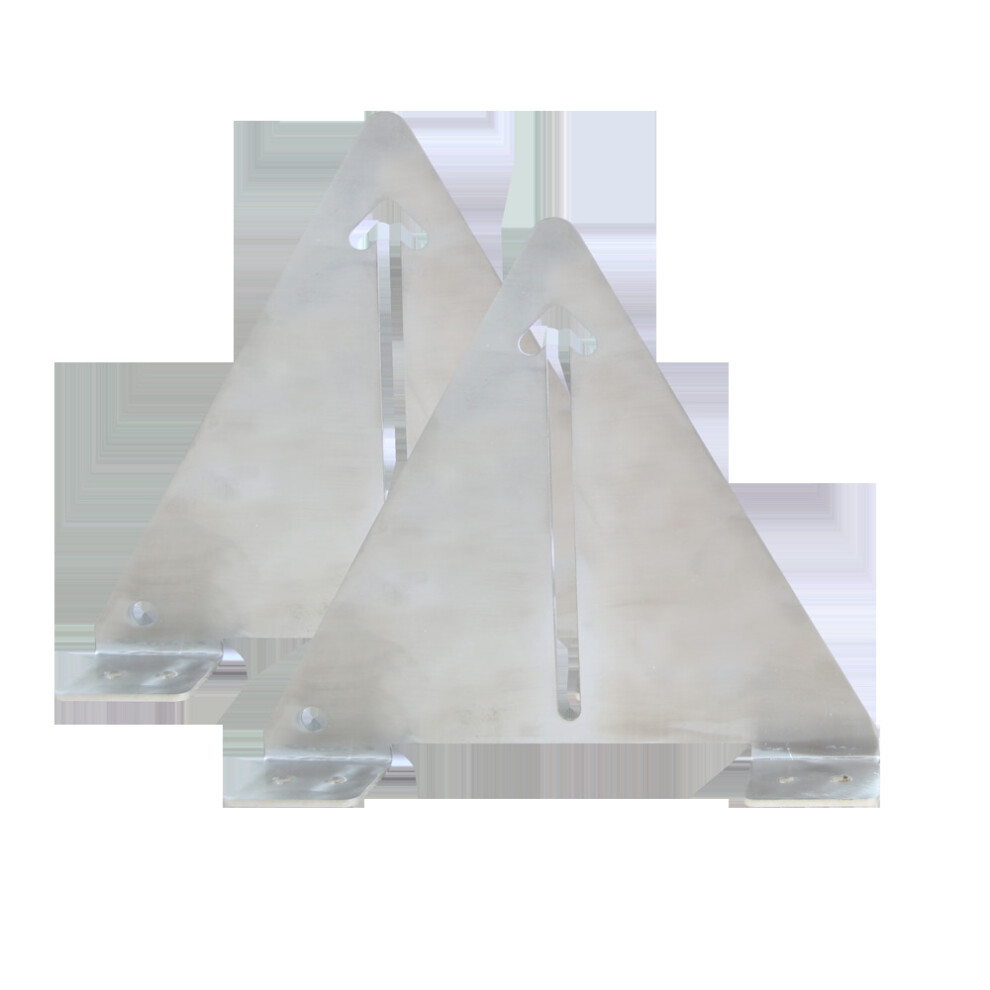

Flip mounts

Tilting solar panel mountings. Tilt your panels towards the sun to achieve optimal power generation. More generated wattage will be achieved compared to panels laid flat. Allows for mounting onto curved boat roofs. Arrowhead design to ‘hook' the raised panel in place and stop it dropping down with vibration or high winds. Adjustable height and solar panel angle. Solar panels can be laid flat when not in use by sliding to the bottom. Max 36 degrees tilt. 240x240x240mm

Product Warranties

Solar Panel = 10 Year for materials and workmanship

Charge Controller = 5 Year Victron Energy

All other components have a 12 month warranty.
