Victron 150w Solar Panel Kit battery charging PWM-Light Controller+ brackets

Victron 150w Solar Panel Kit battery charging PWM-Light Controller+ brackets Description

Solar Kit Contents:

• 1 x 150w Mono Solar Panel by Lowenergie™
• 20A PWM Charge Controller by Victron Energy™
• Solar PV to controller cable
• Battery to solar controller cable
• 4 White ABS Corner mounting brackets

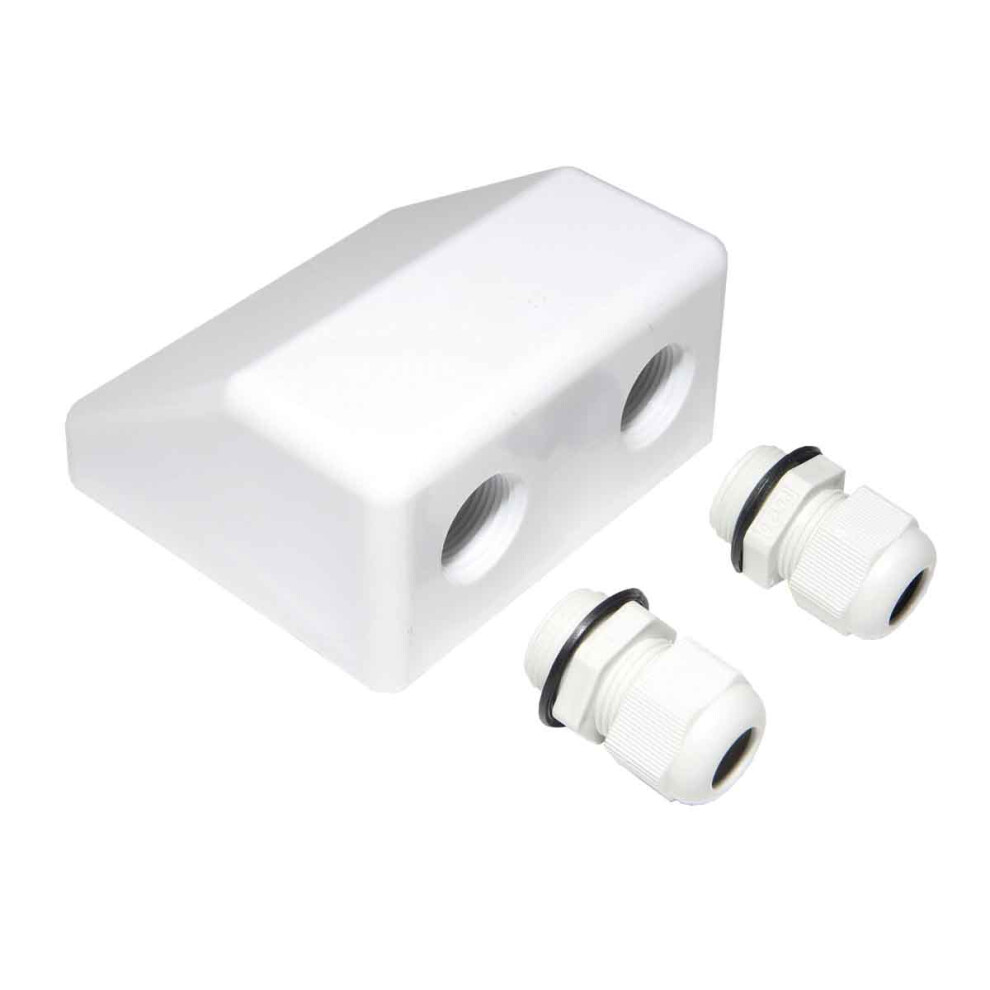

• 1 Twin cable entry

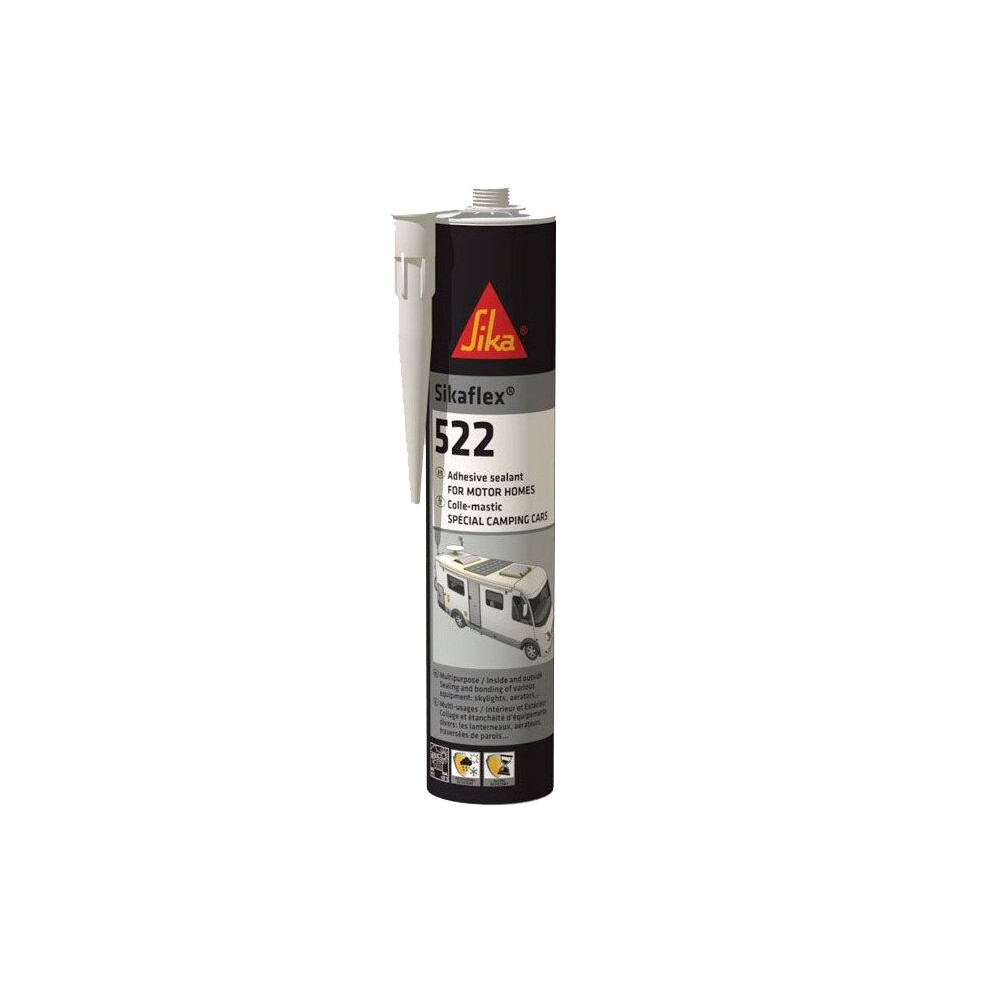

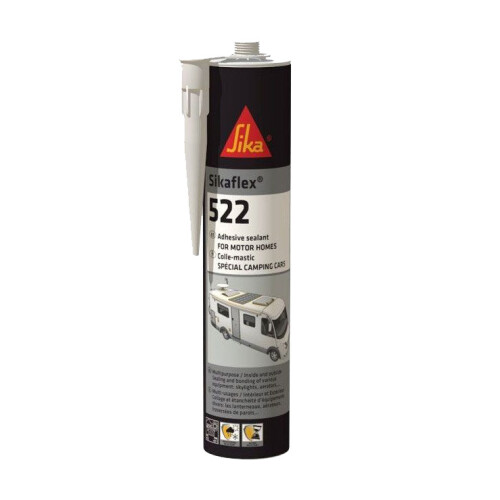

• 1 Tube Sikaflex

Technical Specifications

Bec, 15:21

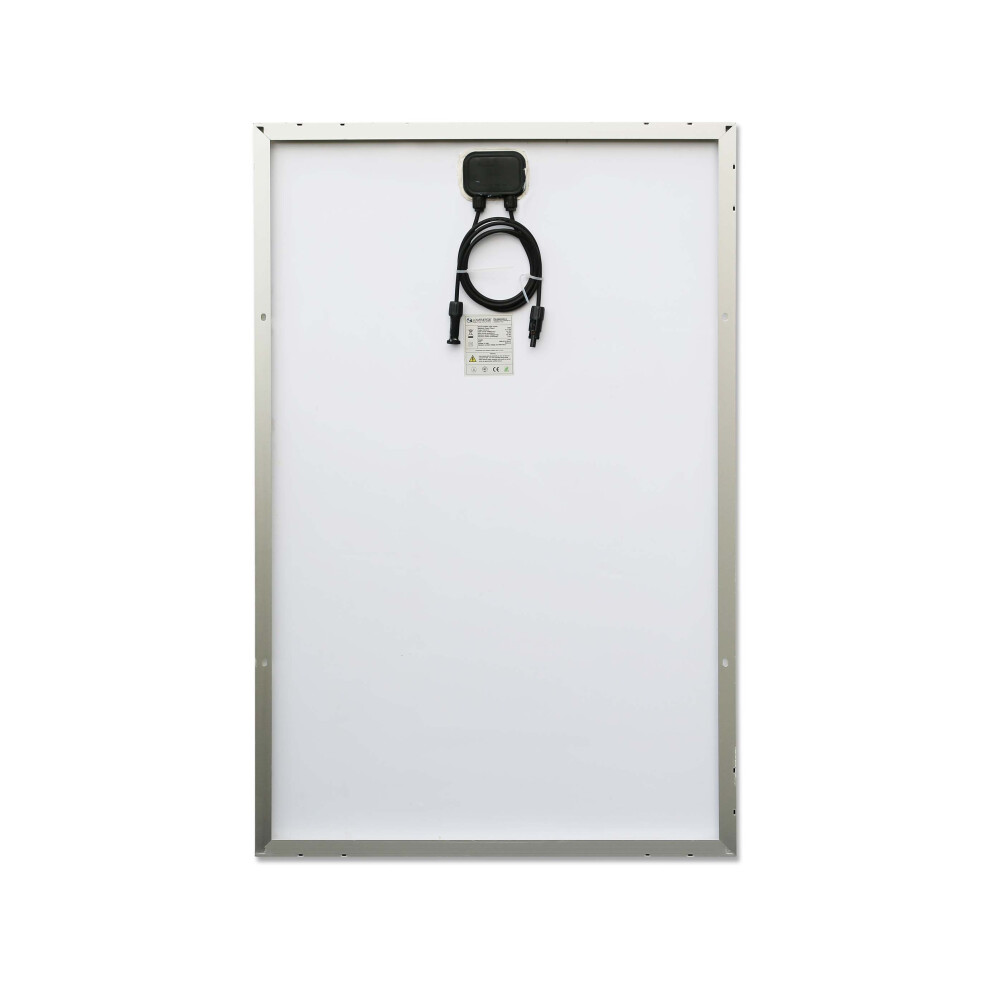

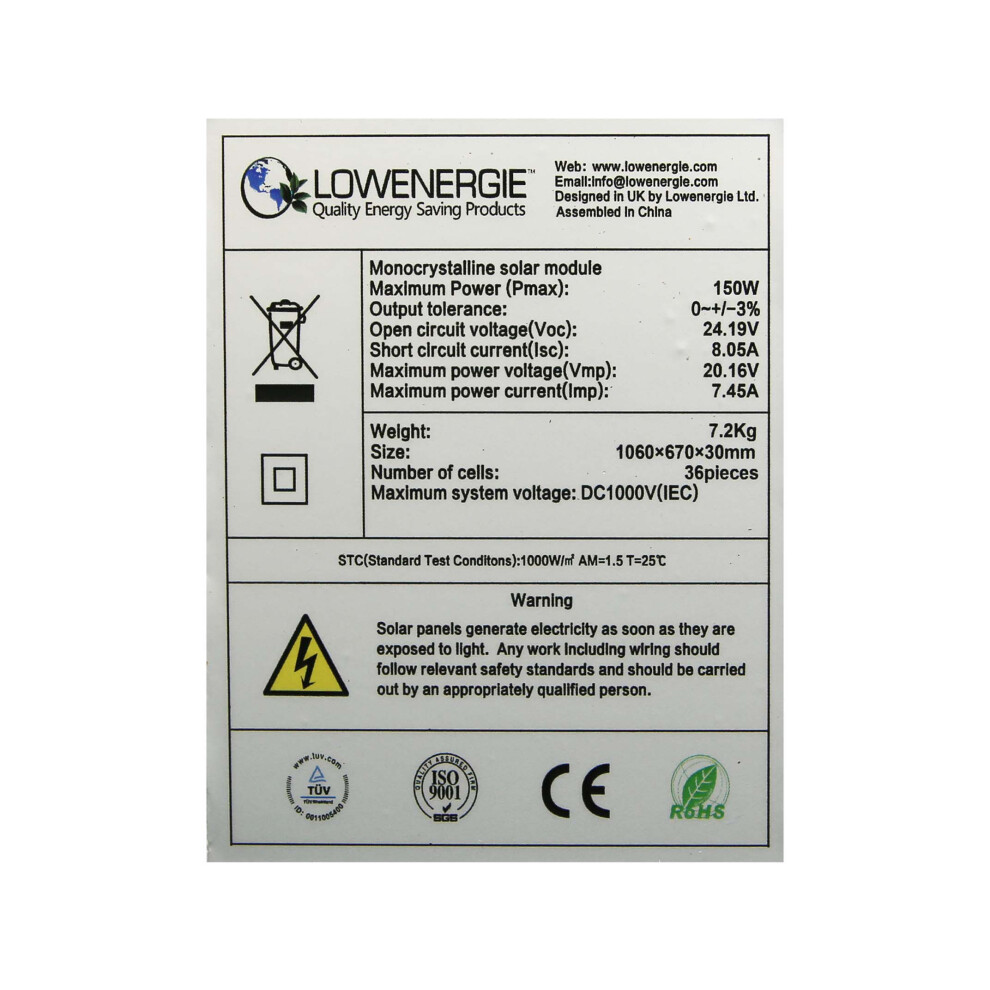

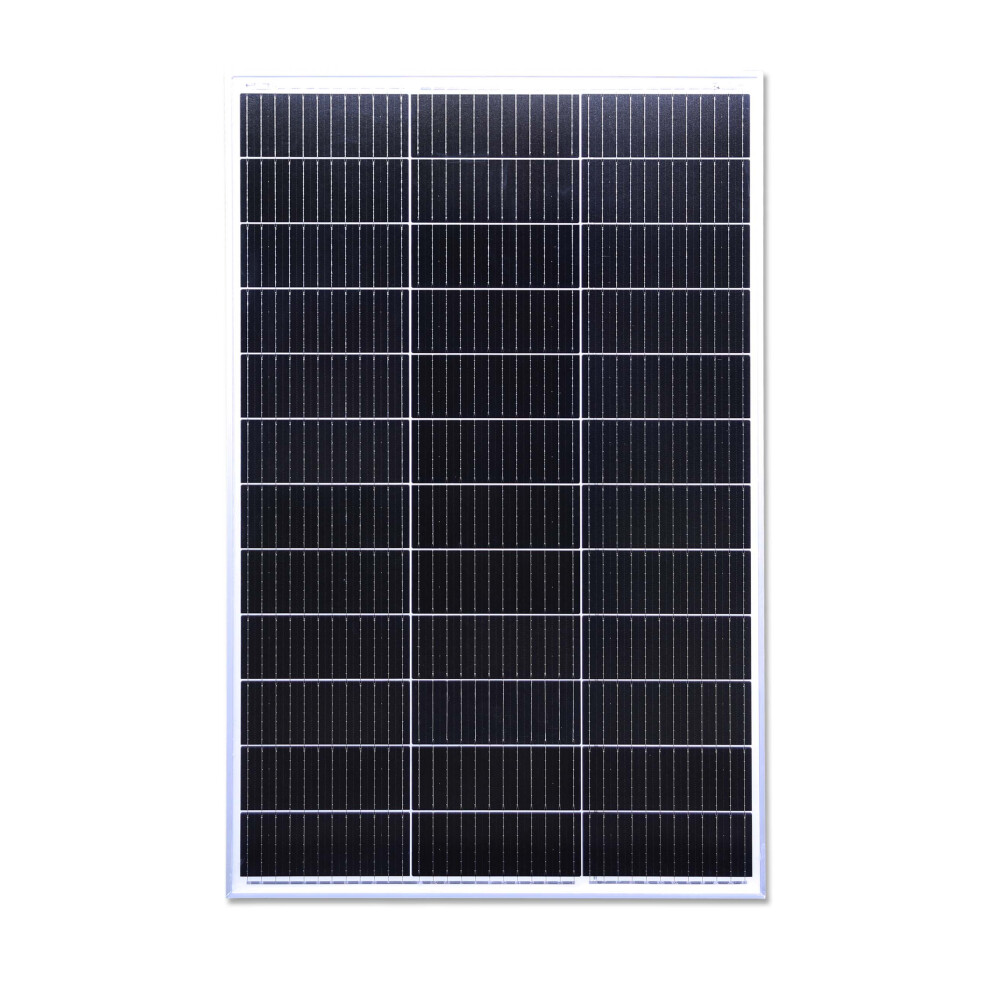

150-Watt Solar Panel (with 1m Cable & MC4 Connector Plugs)

Maximum Power (Pmax): 150W

Maximum Power Voltage (VMP): 20.16V

Maximum Power Current (IMP): 7.45A

Open Circuit Voltage (VOC): 24.19V

Short Circuit Current (ISC): 8.05A

Weight: 7.2KG

Size: 1060 x 670 x 30mm

Power Tolerance: +/-3%

Maximum System Voltage: DC1000V

Number of cells: 36

20 Amp 12V/24V PWM Solar Charge Controller Victron Energy.

Features

• Load output with battery voltage disconnect function.
• Load output protected against overload and short circuit.
• Protected against reverse polarity connection of the solar array and/or battery.
• Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting
• Three stage battery charging (bulk, absorption, float), not programmable.
• Lighting control function, one timer only.

Controller Specification:

• Dimensions: 70 x 133 x 33.5mm
• Weight: 150g
• Rated charging & load current: 20 Amps
• Maximum solar input: 240W @ 12V & 480W @ 24V
• Maximum voltage input: 28V/55V
• Rated Voltage: 12V & 24V
• Protected against reverse polarity connection of the solar array and/or battery.
• Victron Energy are a Dutch company who lead in the field of off- grid solar products.

Solar Panels to Controller Cable

• 5m Twin core 2.5mm2 cable with male and female connectors to one end.

Solar controller to Battery Cable

• 1.5m, 2 Core 2.5mm2 AMC round profile cable, in-line fuse, 30A spade fuse M8 ring terminals.

All cabling carefully design to minimise voltage drops and maintain maximum system efficiency. TUV Approved

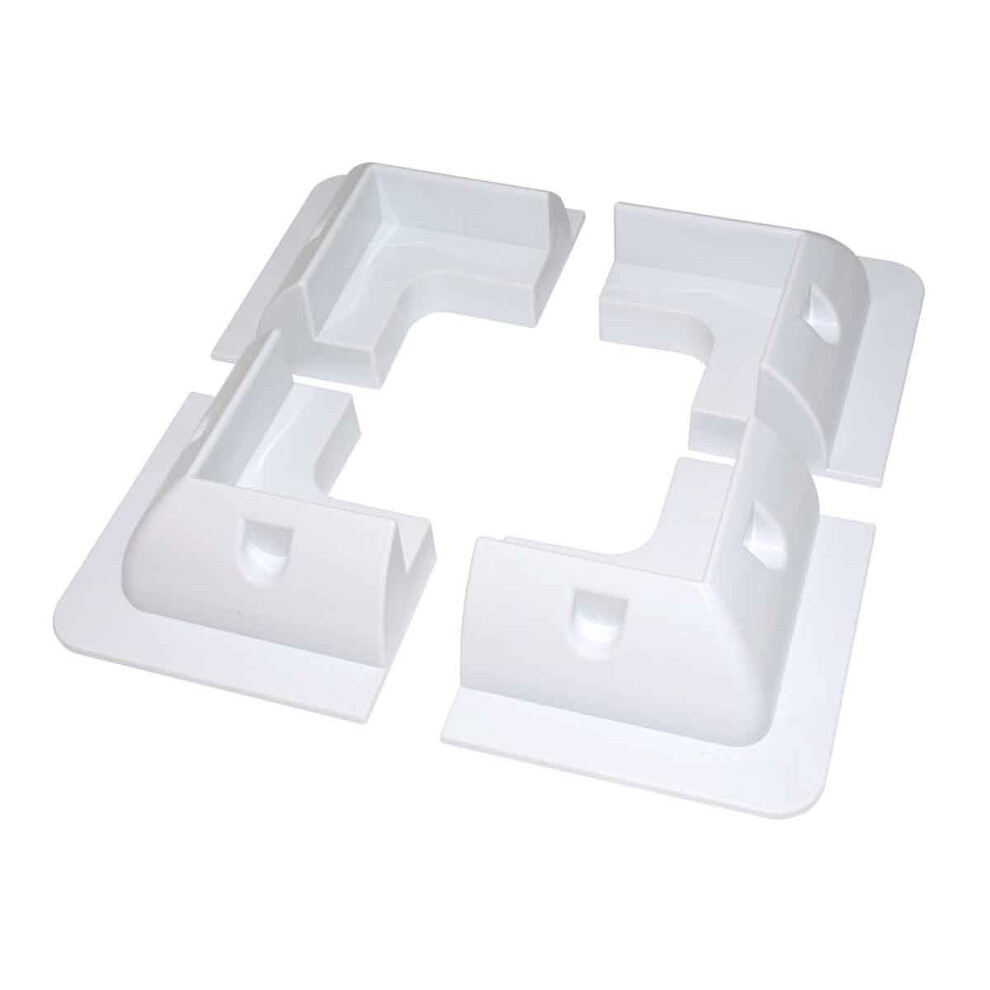

Solar  Corner Brackets

• ABS
• 4 Corners
• White
• Size per bracket 15x15x 6.5cm.
• Weight (4 brackets) 1.6kg
• Easy Installation, holes should be drilled in each bracket, and corresponding holes in the solar panel frame on each side; then brackets should be fixed to the solar panel using self-tapping screws (not included).
