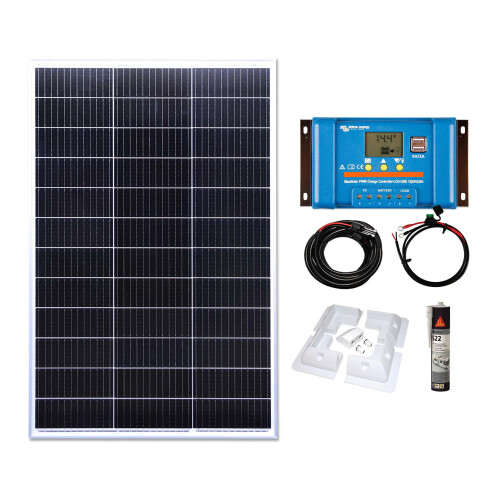

Victron 150w Solar Panel Kit battery charging PWM-USB Controller brackets

• 1 x 150w Mono Solar Panel by Lowenergie™
• 20A PWM Charge Controller with LCD screen & USB ports by Victron Energy™
• Solar PV to controller cable
• Battery to solar controller cable
• 4 White ABS Corner mounting brackets
• 1 Twin cable entry

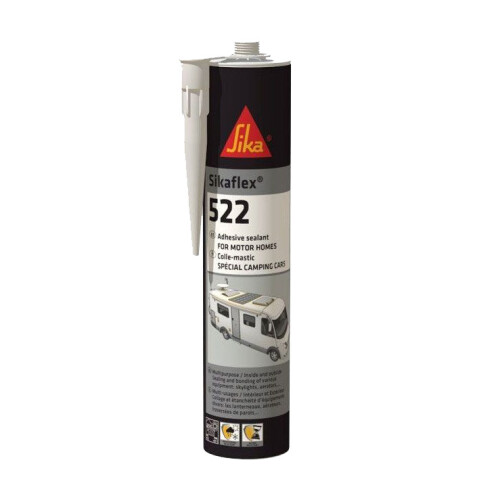

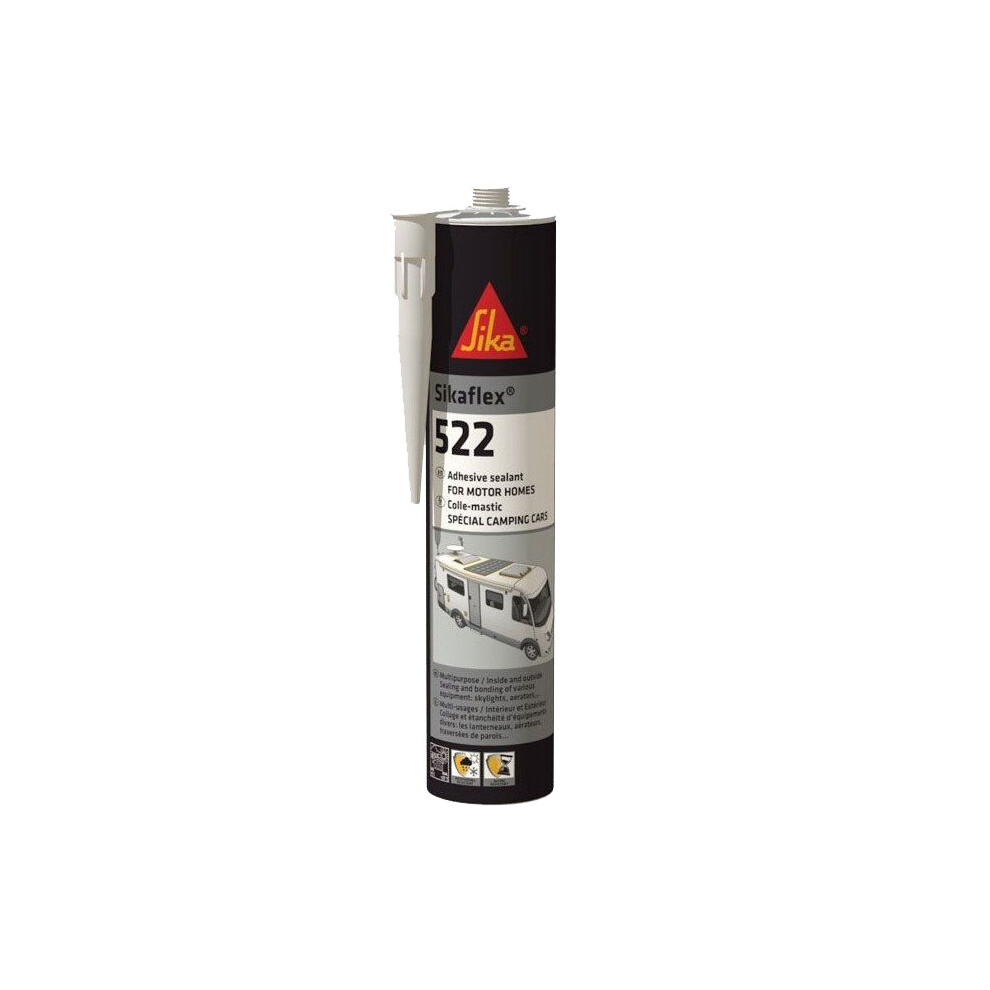

• 1 Tube Sikaflex

Technical Specifications

Bec, 15:21

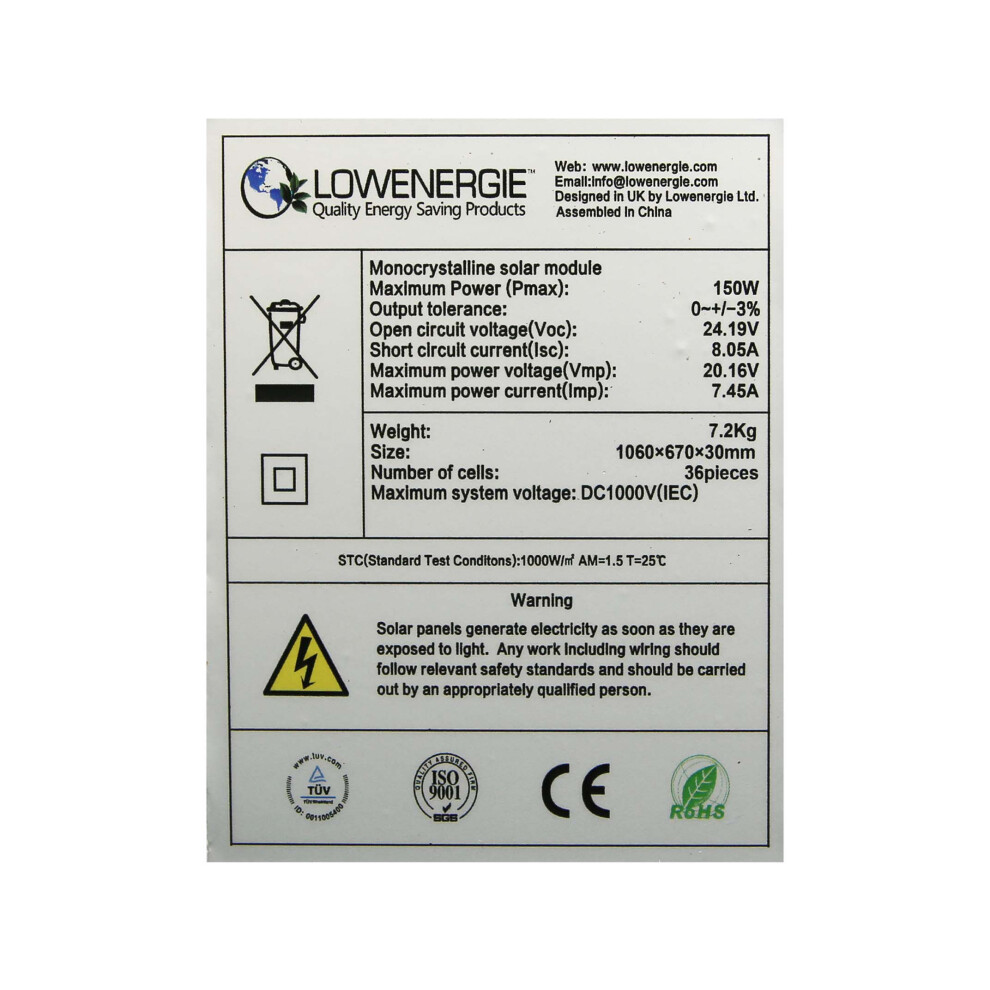

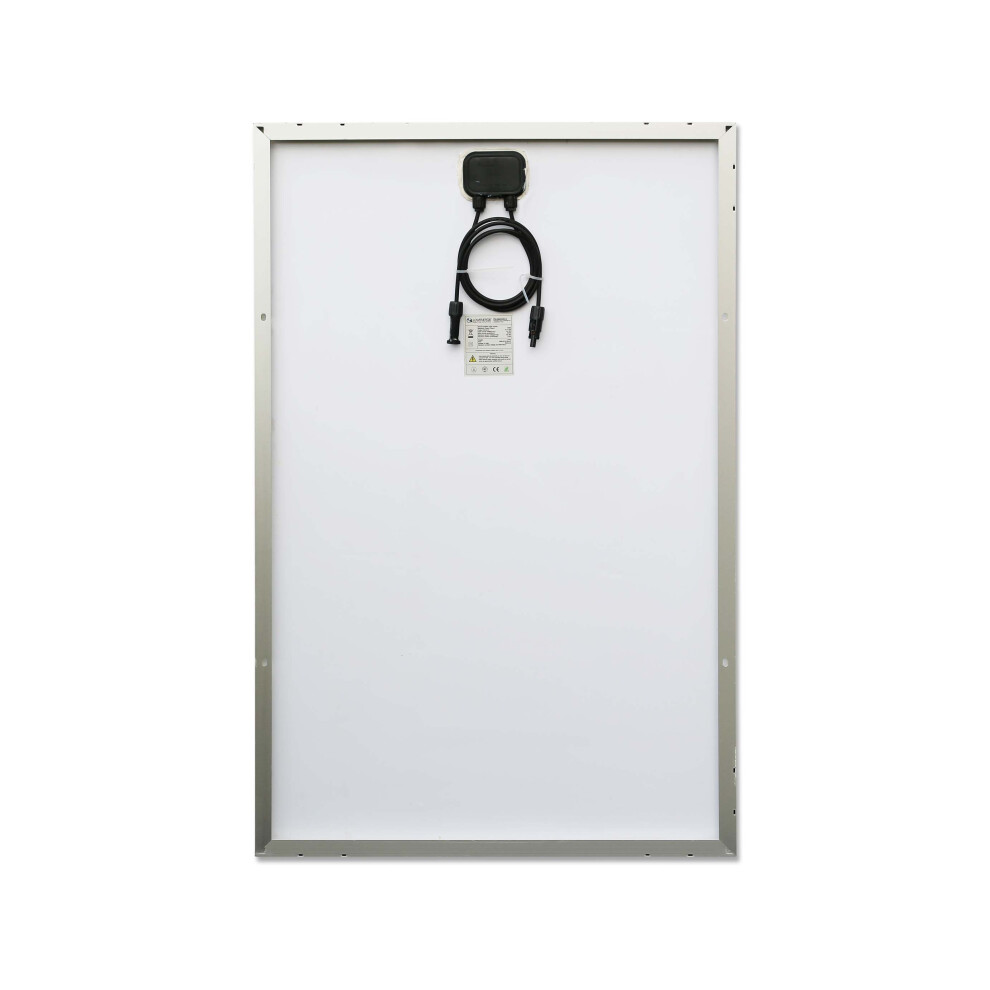

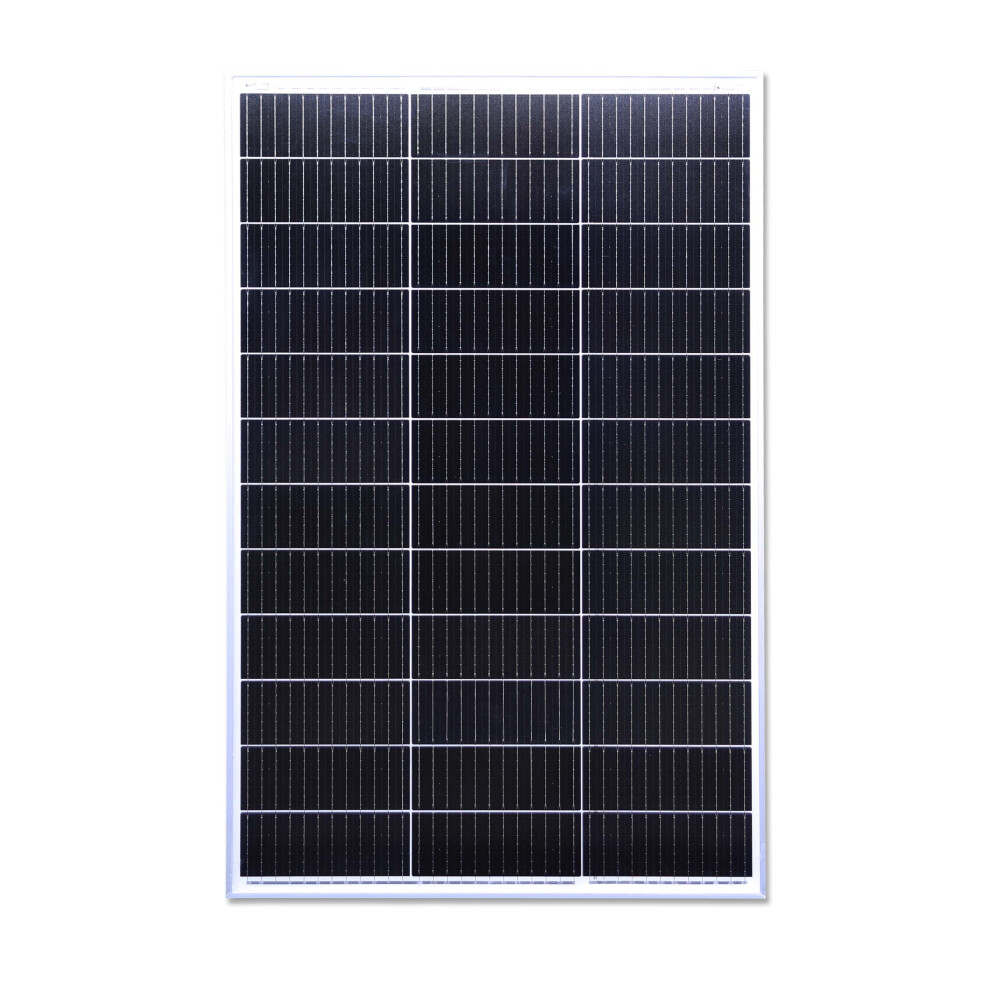

150-Watt Solar Panel (with 1m Cable & MC4 Connector Plugs)

Maximum Power (Pmax): 150W

Maximum Power Voltage (VMP): 20.16V

Maximum Power Current (IMP): 7.45A

Open Circuit Voltage (VOC): 24.19V

Short Circuit Current (ISC): 8.05A

Weight: 7.2KG

Size: 1060 x 670 x 30mm

Power Tolerance: +/-3%

Maximum System Voltage: DC1000V

Number of cells: 36

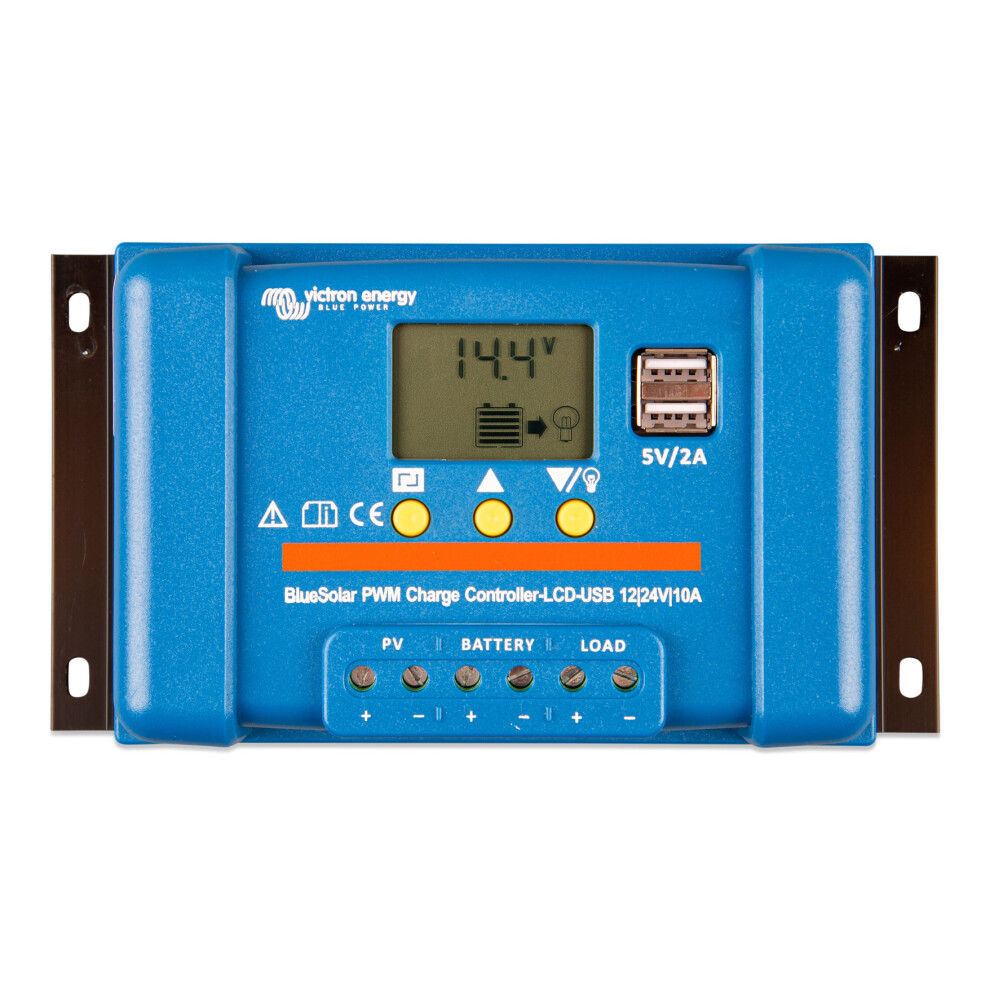

BlueSolar PWM-LCD & USB

• Liquid Crystal Display
• Two 5 Volt USB outputs
• Lighting control function, fully programmable
• Three stage battery charging (bulk, absorption, float), fully programmable
• Load output with low voltage and manual disconnect (programmable)
• Load output protected against over load and short circuit
• Protected against reverse polarity connection of the solar panels and/or battery

Technical Specification

• Charge Controller: 12/24-20
• Battery Voltage 12/24 V
• Rated charge current 20A
• Automatic load disconnect Yes
• Maximum solar voltage 28V / 55V
• Self-consumption < 10 mA
• Load output Manual control + low voltage disconnect +timer
• Protection: Battery reverse polarity (fuse) Output short circuit Over temperature & Overload protection
• Shut down after 60 s in case of 130% load
• Shut down after 5 s in case of 160% load
• Short circuit: immediate shut down
• Grounding Common positive
• Operating temp. range -35 to +60°C (full load)
• Humidity (non-condensing) Max 95%

Battery

• Charge voltage ‘absorption' Factory setting: 14,4V / 28,8V
• Charge voltage ‘float' (2) Factory setting: 13,7V / 27,4V
• Low voltage load disconnect Factory setting: 11,2V / 22,4V
• Low voltage load reconnect Factory setting: 12,6V / 25,2V

USB

• Voltage 5V
• Current 2A (total from 2 outputs)

Enclosure

• Protection class IP20
• Terminal size 6 mm² / AWG10
• Weight 0,15kg
• Dimensions (h x w x d) 96 x 169 x 36 mm

STANDARDS

• Safety EN60335-1, IEC 62109-1
• EMC EN 61000-6-1, EN 61000-6-3, ISO 7637-2

1) For 12V use 36 cell solar panels , For 24V use 72 cell solar panels or 2x 36 cell in series

2) The controller switches to the lower float voltage level 2 hours after the absorption voltage has been reached. Whenever the battery voltage becomes lower than 13V, a new charge cycle is triggered.

Victron Energy are a Dutch company who lead in the field of off- grid solar products.

Solar Panels to Controller Cable

5m Twin core 2.5mm2 cable with male and female connectors to one end.

Solar controller to Battery Cable

1.5m, 2 Core 2.5mm2 AMC round profile cable, in-line fuse, 30A spade fuse M8 ring terminals.

All cabling carefully design to minimise voltage drops and maintain maximum system efficiency. TUV Approved

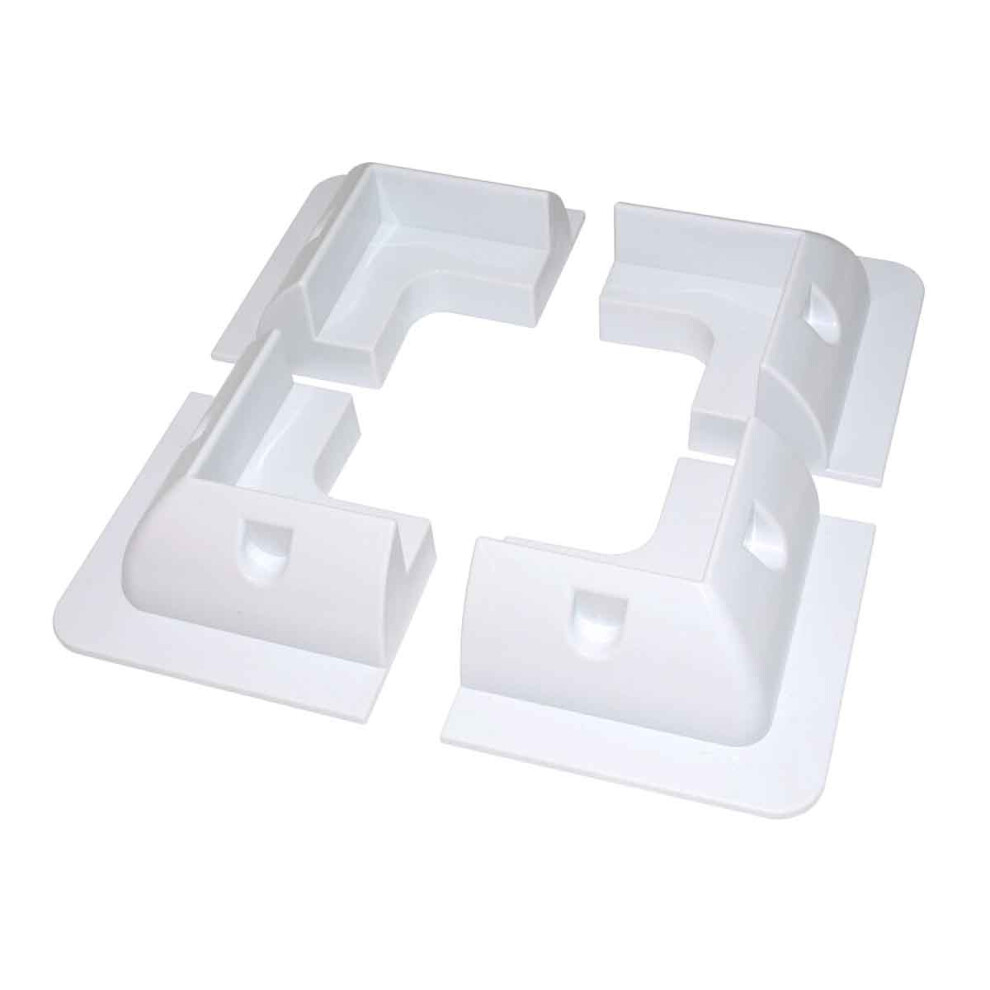

Solar Corner Brackets

• ABS
• 4 Corners
• White
• Size per bracket 15x15x 6.5cm.
• Weight (4 brackets) 1.6kg

Easy Installation, holes should be drilled in each bracket, and corresponding holes in the solar panel frame on each side; then brackets should be fixed to the solar panel using self-tapping screws (not included).

• ABS

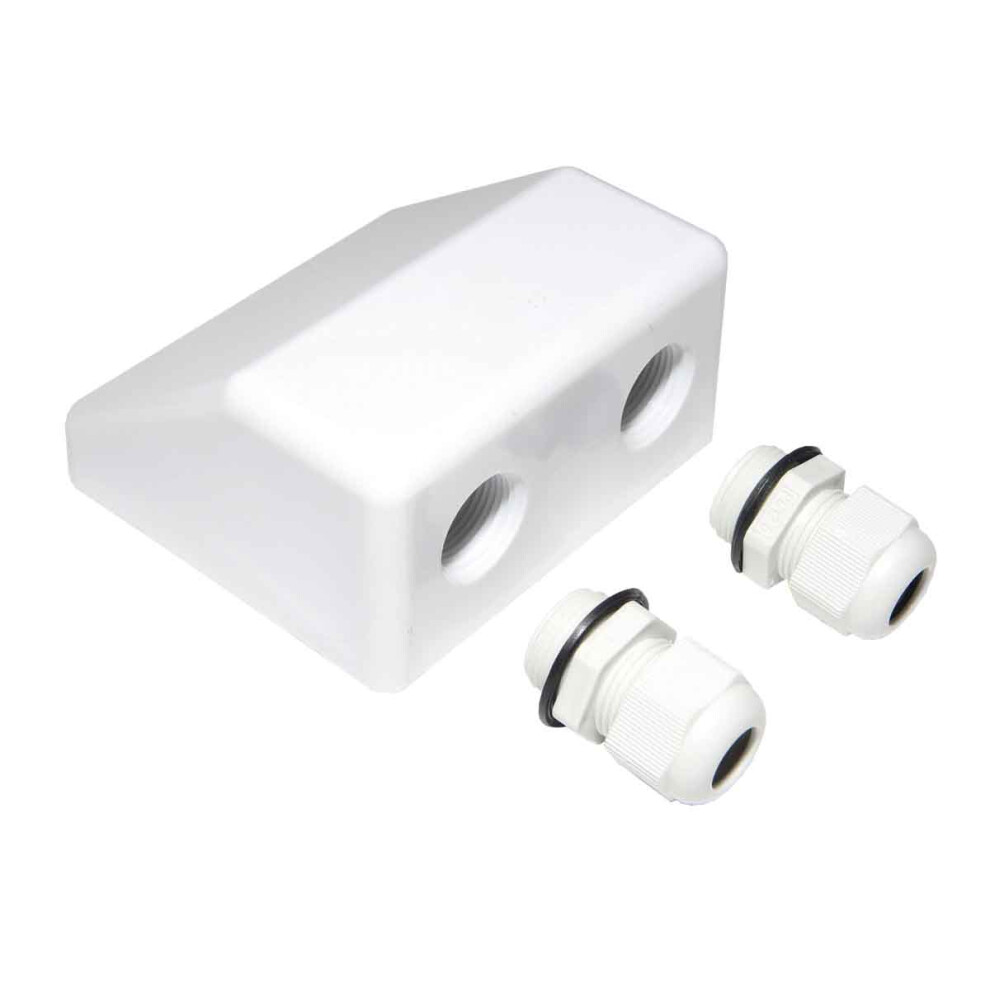

• Twin cable entry for 4-12mm cables
• White
• Watertight
• Size: 12x10x5cm

Product Warranties

Solar Panel = 10 Year for materials and workmanship

Charge Controller = 5 Year Victron Energy

All other components have a 12 month warranty.

Power Output Warranty is at least 90% maximum power for first 10 years of use and;

Power Output Warranty of at least 80% maximum power output for up to 25 years use
