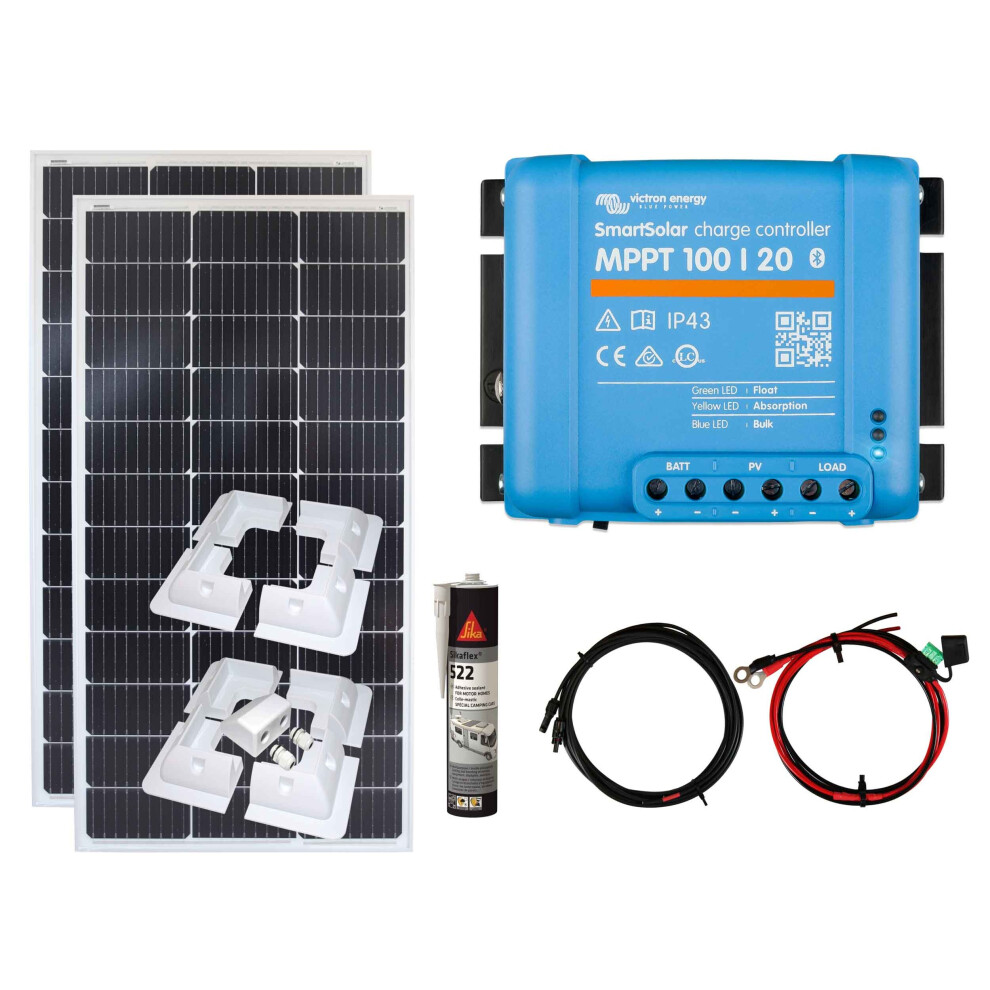

Victron 200w Mono Solar Panel Kit charging MPPT Smart Controller Battery Mounts

• 2 x 100w Mono Solar Panel by Lowenergie™
• 1 x 20A 100/20 MPPT Smart Charge Controller by Victron Energy™
• 1 x Solar PV to controller cable,
• 1 x Battery to solar controller cable
• 8 x White ABS Corner mounting brackets,
• 1 x Twin cable entry,

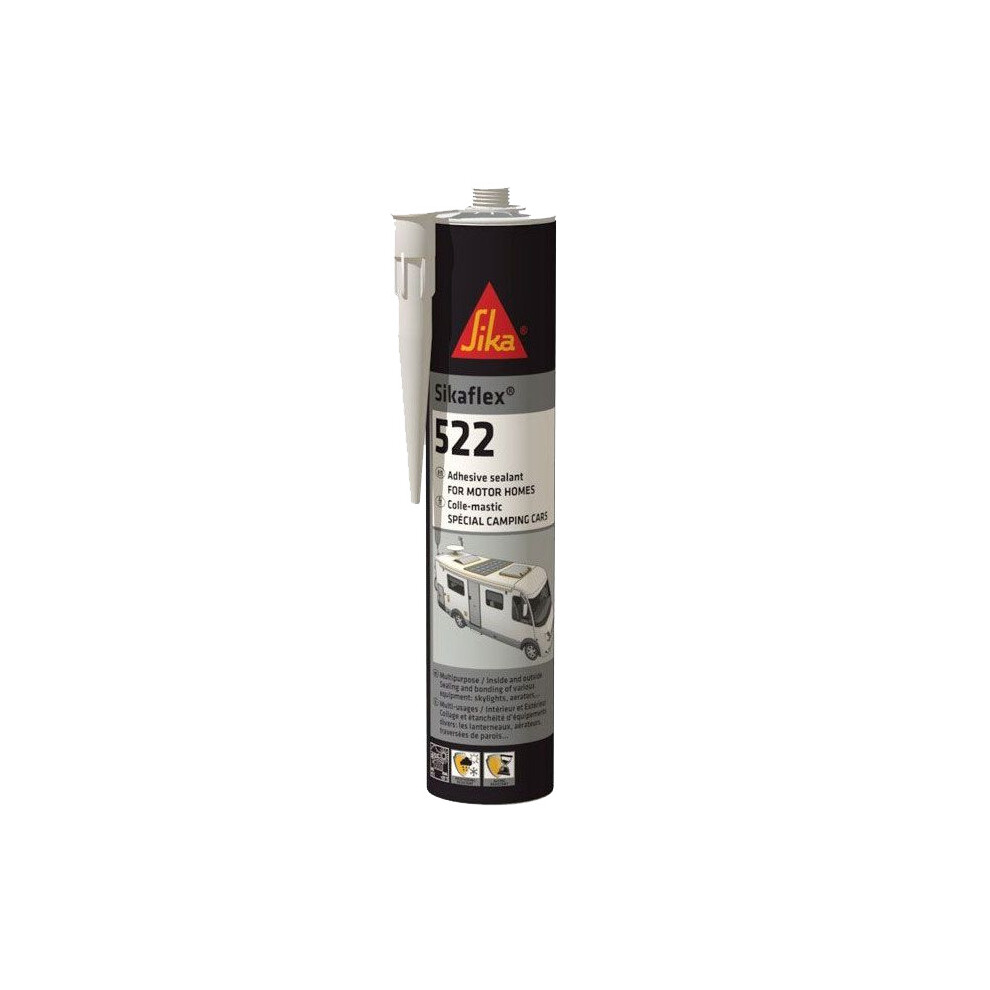

• 1 x Tube Sikaflex

Technical Specifications

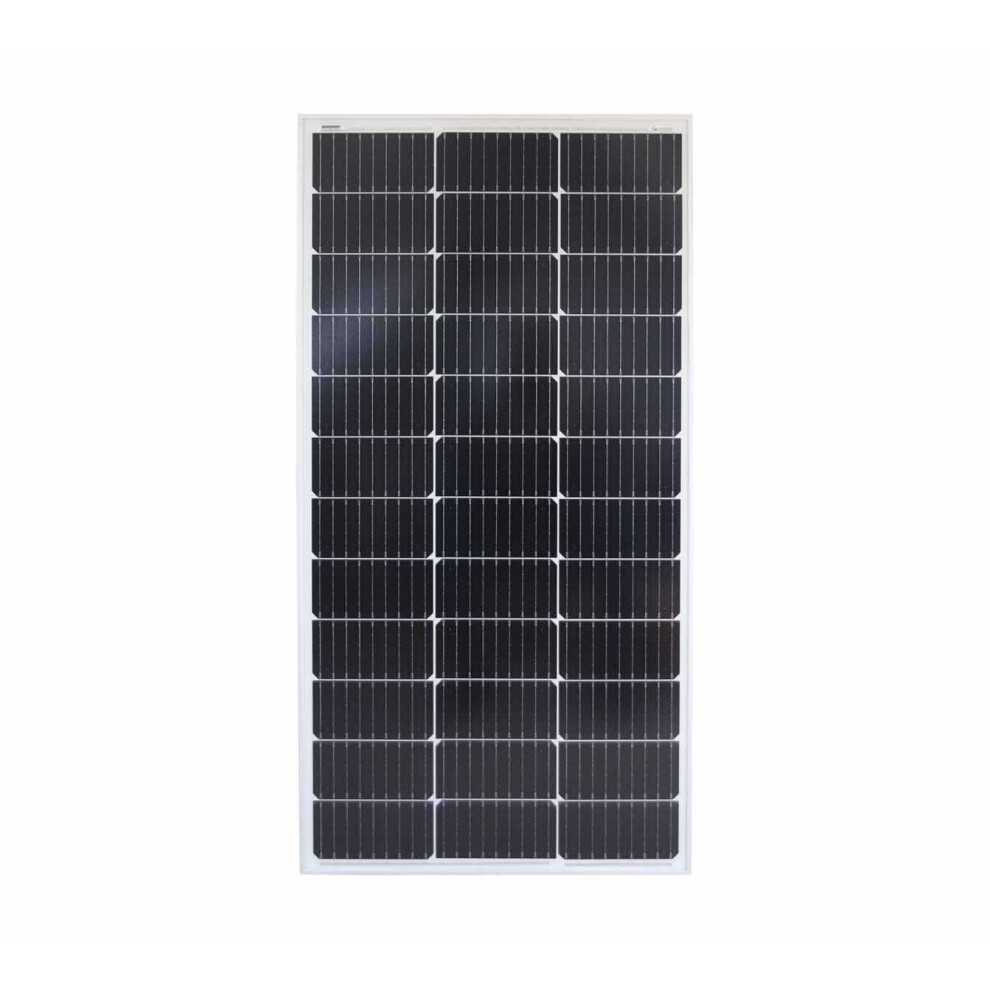

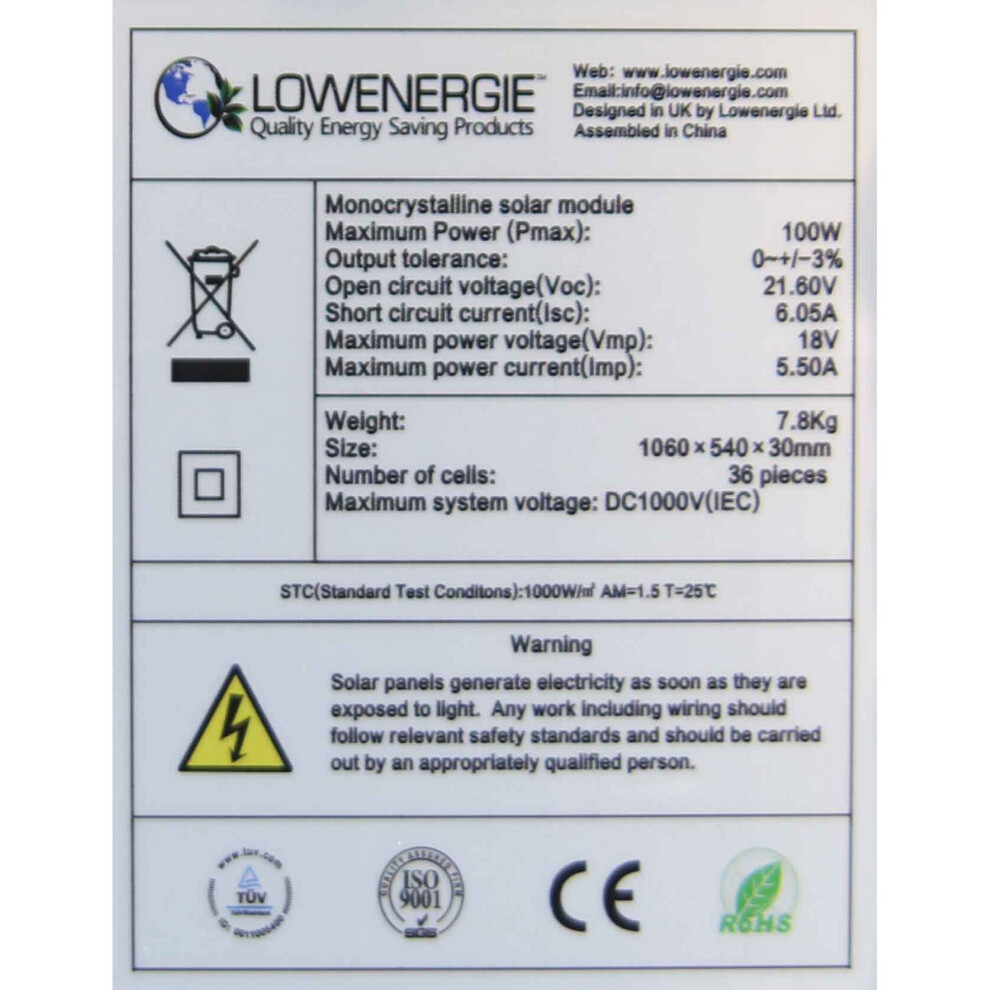

100 Watt Solar Panel - (with 1m Cable & Solar Connector Plugs)

Max Power: 100w

Max Power Voltage: 18.0v

Max Current: 5.50A

Open Circuit Voltage: 21.60v

Short Circuit Current: 6.05A

Weight: 7.8kg

Size: 1060 x 540 x 30mm

Power Tolerance: ±3%

Maximum System Voltage: DC1000v

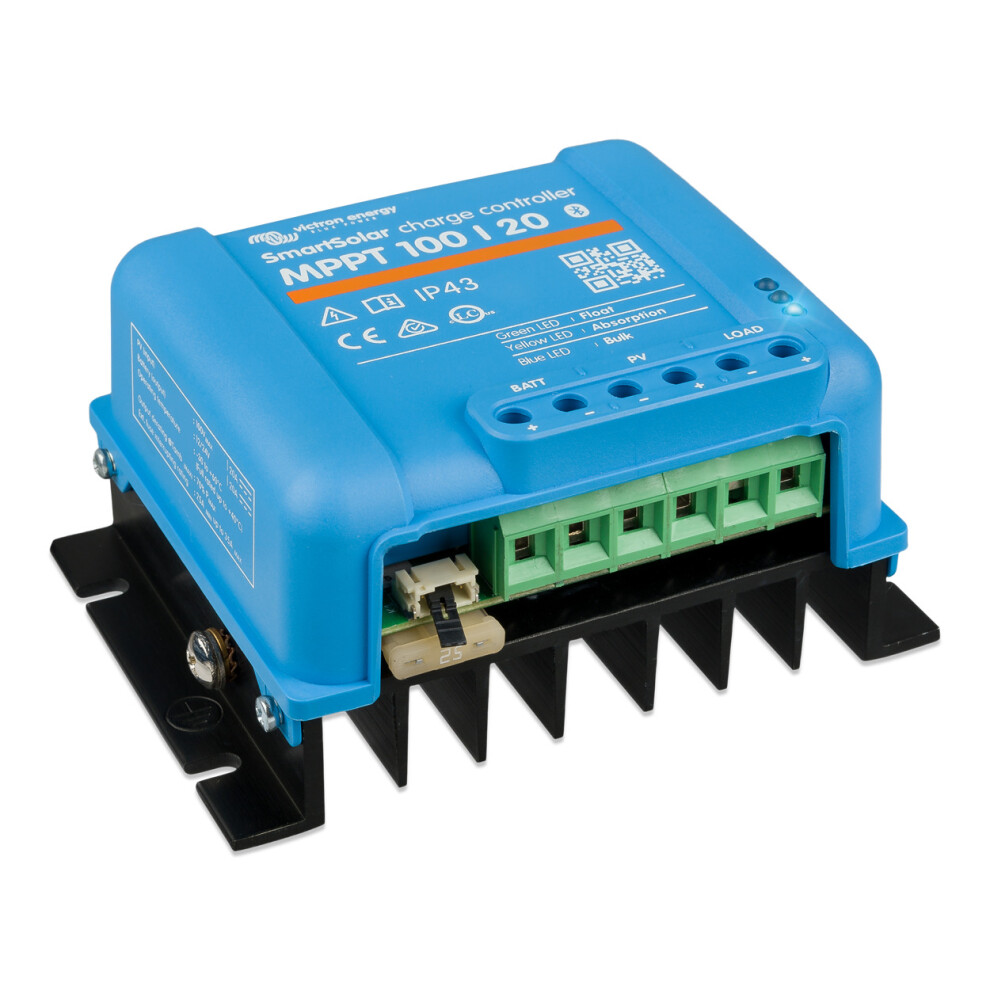

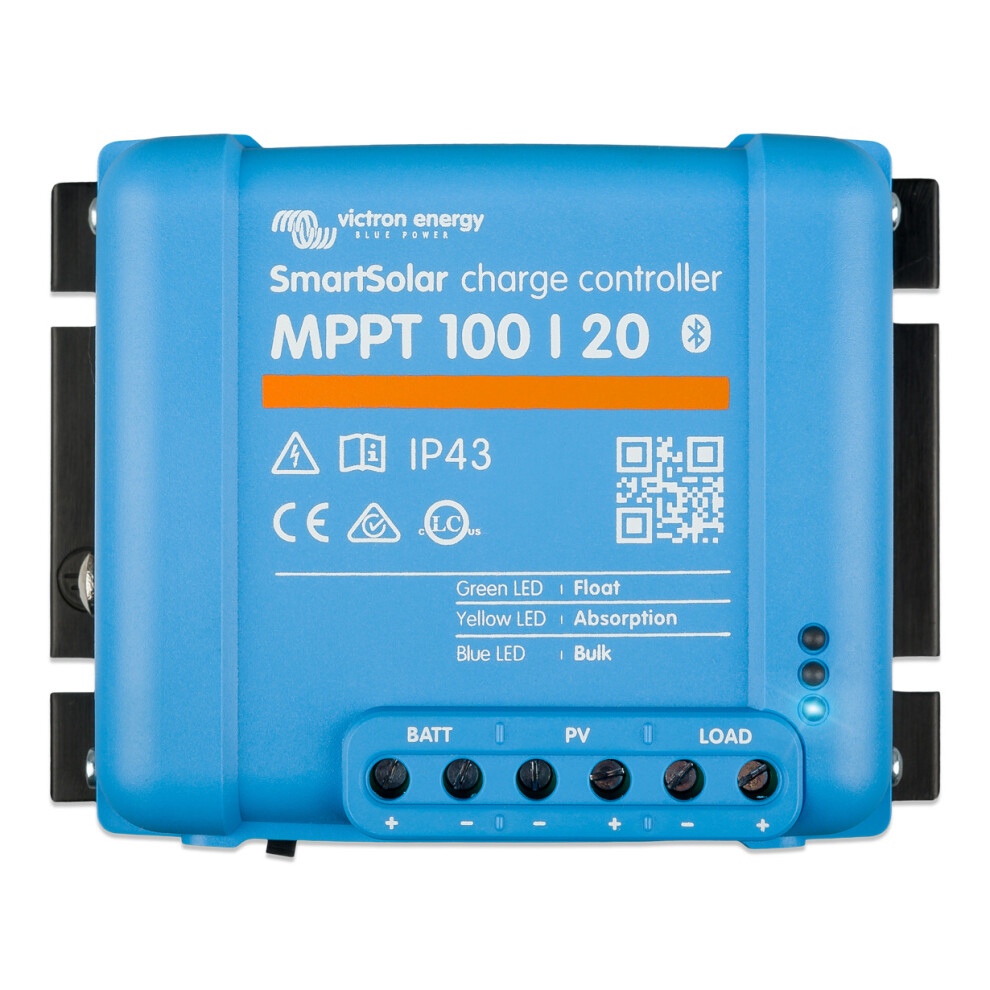

Technical - Victron MPPT Smart 100/20

Controller Specification:

• Dimensions: 100 x 113 x 60mm
• Weight: 650g
• Rated charging & load current: 20 Amps
• Maximum voltage input: 28V/55V
• Rated Voltage: 12V & 24V
• Protected against reverse polarity connection of the solar array and/or battery.

Solar Panels to Controller Cable

• 10m 4mm2 cable with male and female connectors to one end.

Solar controller to Battery Cable

• 1.5m, 4mm2 round profile cable, in-line fuse, 30A spade fuse M8 ring terminals.

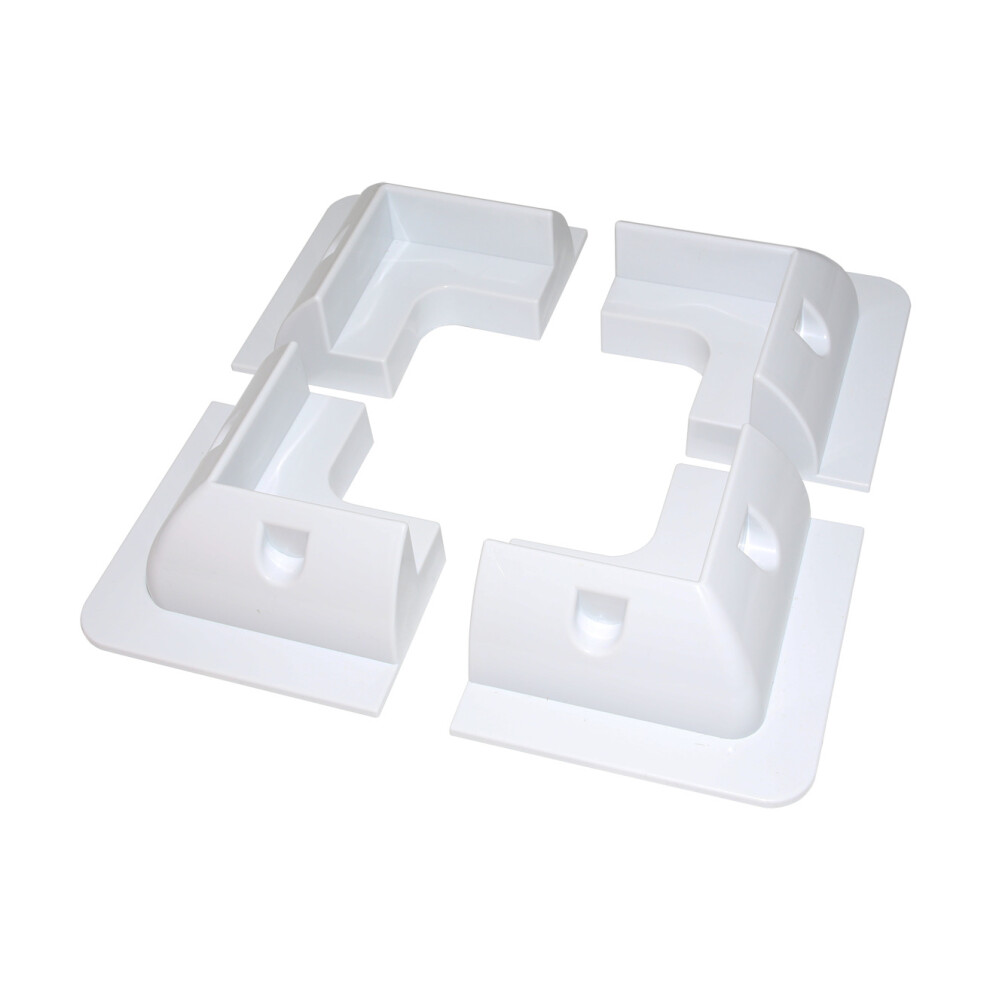

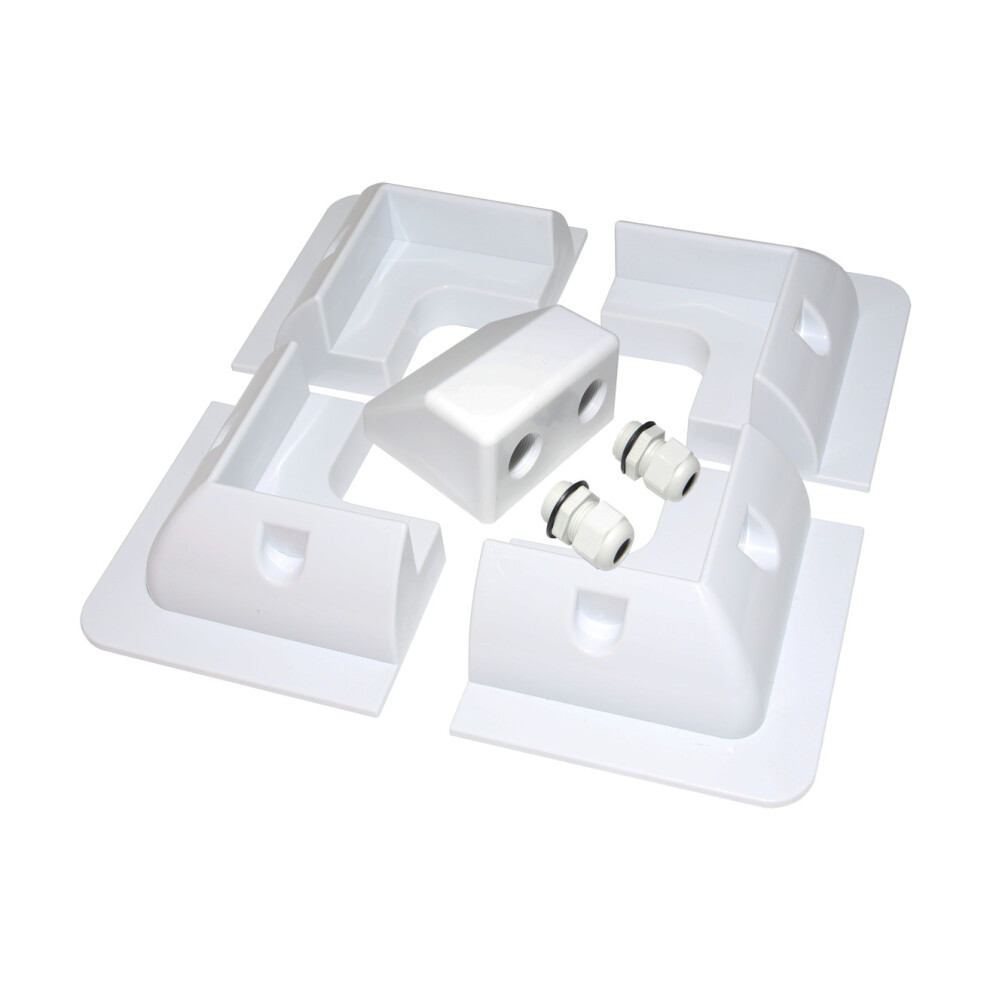

Solar Brackets:

• ABS
• 4 Corners
• White
• Size per bracket 15x15x 6.5cm.
• Weight (4 brackets) 1.6kg
• Easy Installation, holes should be drilled in each bracket, and corresponding holes in the solar panel frame on each side; then brackets should be fixed to the solar panel using self-tapping screws (not included).

Cable Entry

• ABS
• Twin cable entry for 4-12mm cables
• White
• Watertight
• Size: 12x10x5cm

All cabling carefully design to minimise voltage drops and maintain maximum system efficiency. TUV Approved

Product Warranties

Solar Panel = 10 Year for materials and workmanship

Charge Controller = 5 Year Victron Energy

All other components have a 12 month warranty.
