Victron 200w Solar Panel Kit battery charging PWM-USB Controller brackets

Victron 200w Solar Panel Kit battery charging PWM-USB Controller brackets Description

Our new 9BB 100w Monocrystalline Solar Panels.  These are our highest efficiency yet which now allows these panels to be slightly smaller and still generate the same power!  9BB means 9 silver conductor strips connect each row of silicone cells, which means higher efficiency in pulling every bit of power from all of the cells.  The overall panel efficiency is now up from 18% to 21.2%.

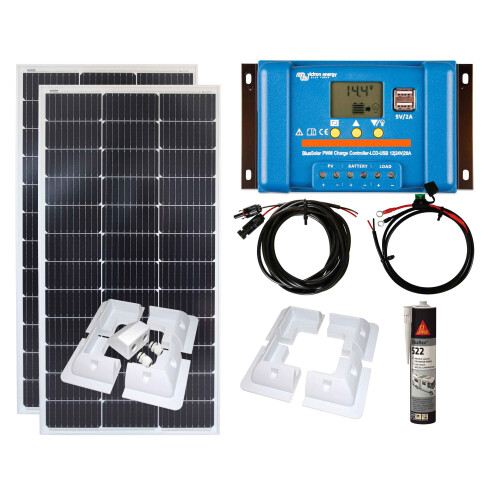

Solar Kit Contents

• 2 x 100w Monocrystalline Solar Panels
• 20A Victron Bluesolar PWM Charge Controller 12/24v 20A LCD Screen & USB
• Solar PV to controller cable
• Battery to solar controller cable
• 8 ABS Corner mounting brackets
• 1 ABS Cable entry

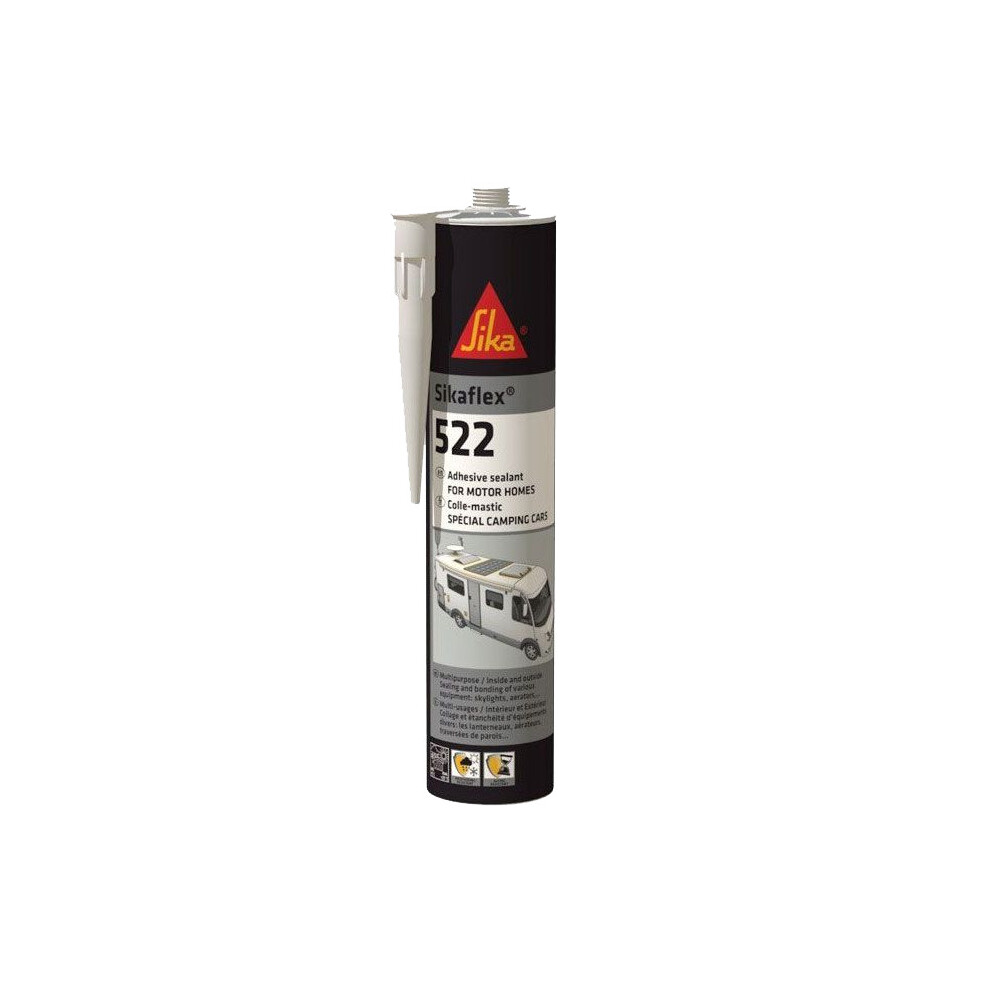

• 1 Tube of Sikaflex

Technical Specifications

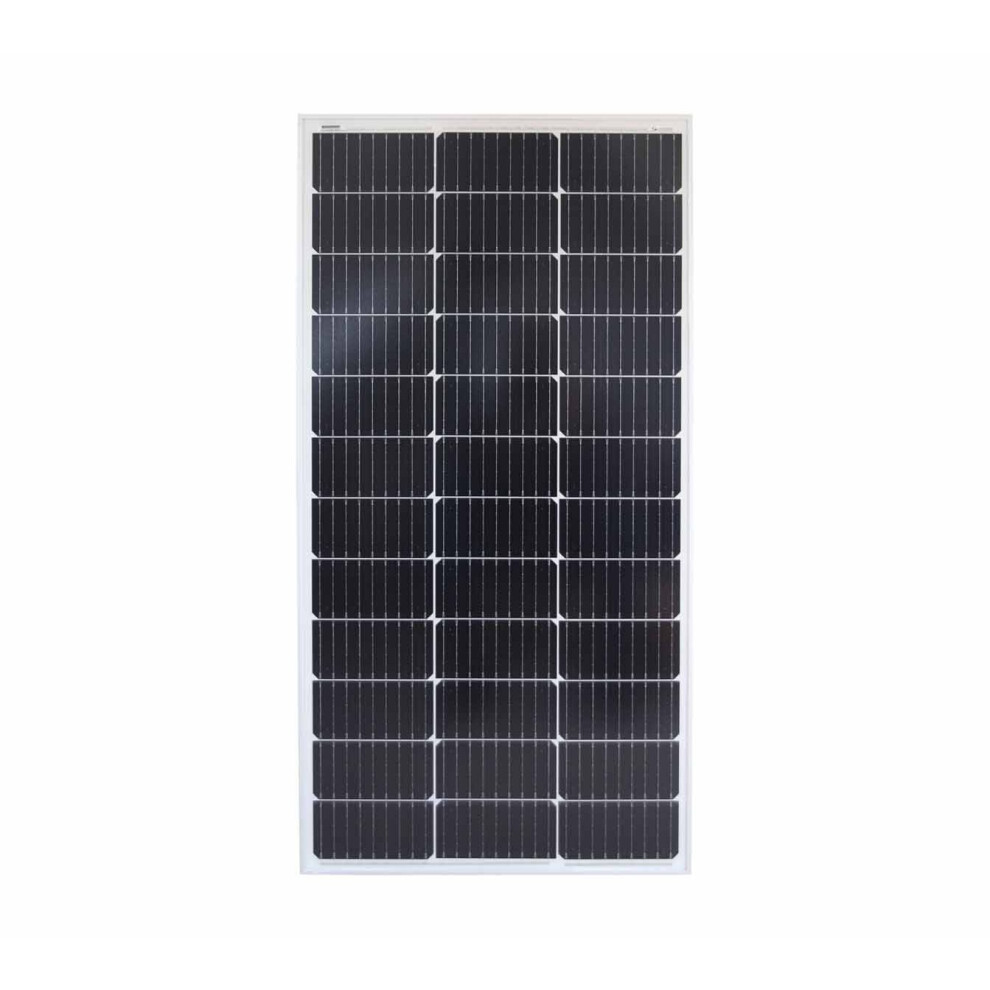

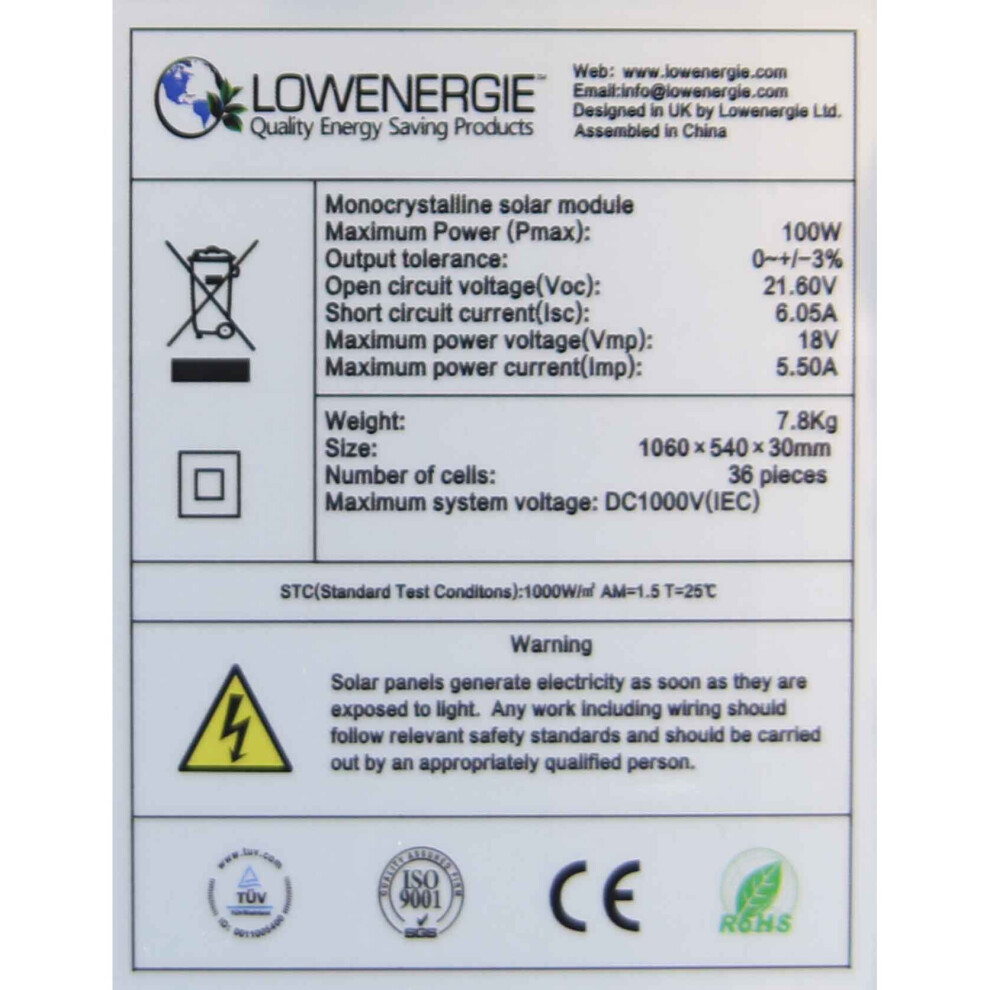

100 Watt Solar Panel - (with 1m Cable & Solar Connector Plugs)

Max Power: 100w

Max Power Voltage: 18.0v

Max Current: 5.50A

Open Circuit Voltage: 21.60v

Short Circuit Current: 6.05A

Weight: 7.8kg

Size: 1060 x 540 x 30mm

Power Tolerance: ±3%

Maximum System Voltage: DC1000v

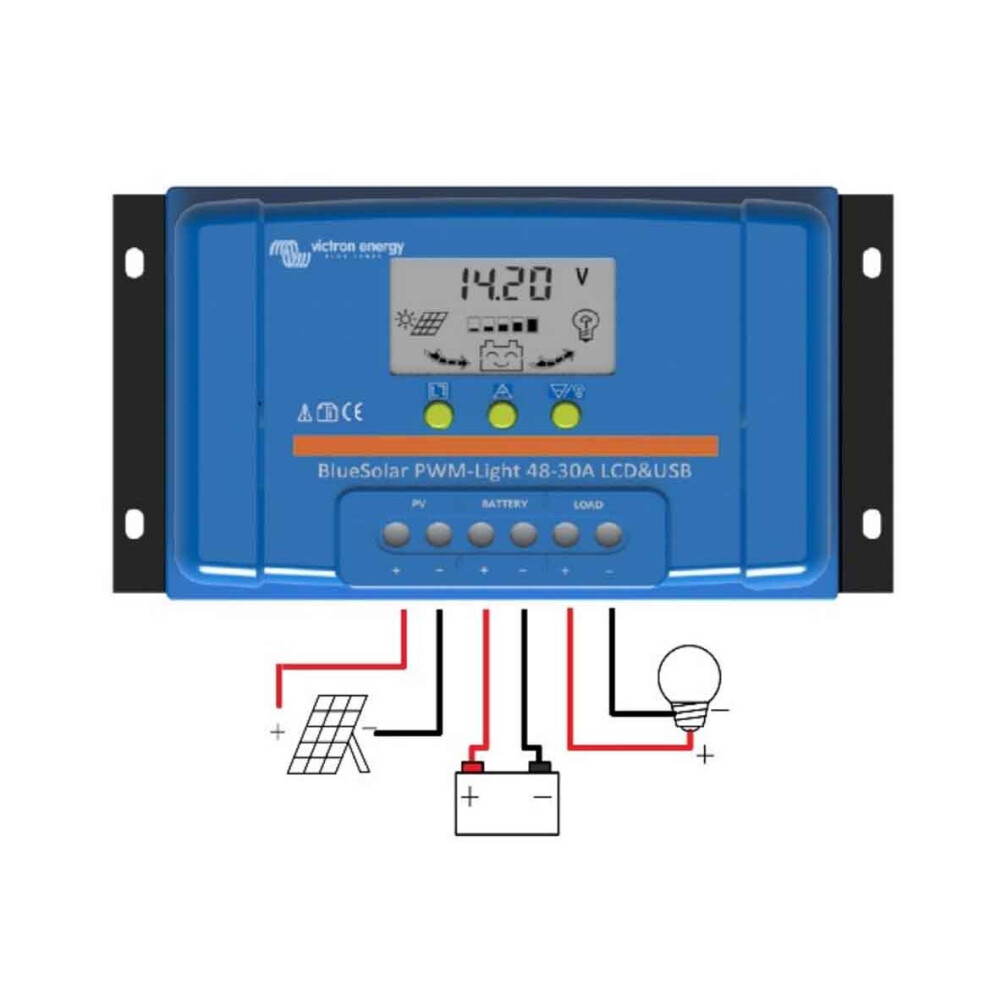

Technical - Victron Bluesolar 20A PWM+USB Solar Charge Controller

Controller Specification:

• Dimensions: 96 x 169 x 36mm
• Weight: 150g
• Rated charging & load current: 20 Amps
• Maximum voltage input: 28V/55V
• Rated Voltage: 12V & 24V
• Protected against reverse polarity connection of the solar array and/or battery.

Solar Panels to Controller Cable

• 5m Twin core 2.5mm2 cable with male and female connectors to one end.

Solar controller to Battery Cable

• 1.5m, 2 Core 2.5mm2 AMC round profile cable, in-line fuse, 30A spade fuse M8 ring terminals.

All cabling carefully design to minimise voltage drops and maintain maximum system efficiency. TUV Approved

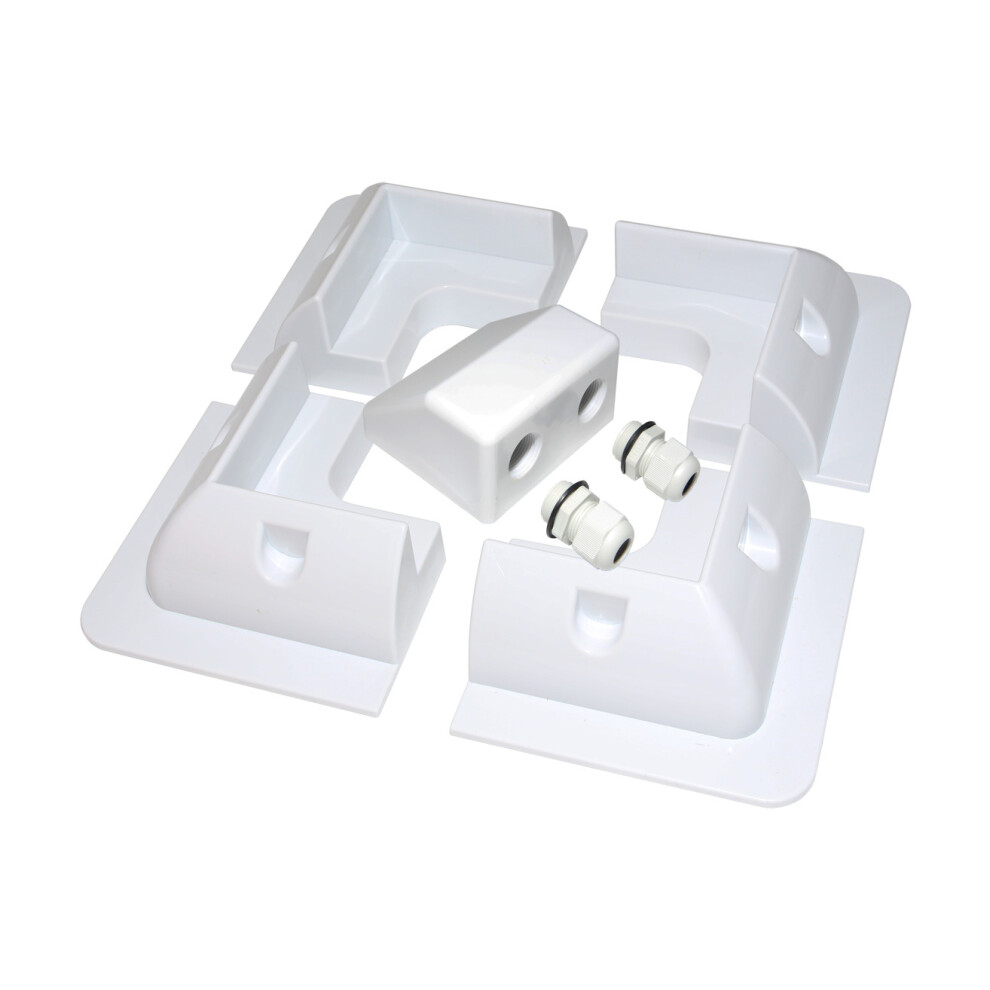

Solar Brackets:

• ABS
• 4 Corners
• White
• Size per bracket 15x15x 6.5cm.
• Weight (4 brackets) 1.6kg
• Easy Installation, holes should be drilled in each bracket, and corresponding holes in the solar panel frame on each side; then brackets should be fixed to the solar panel using self-tapping screws (not included).

Cable Entry

• ABS
• Twin cable entry for 4-12mm cables
• White
• Watertight
• Size: 12x10x5cm

Product Warranties

Solar Panel = 10 Year for materials and workmanship

Charge Controller = 5 Year Victron Energy

All other components have a 12 month warranty.
