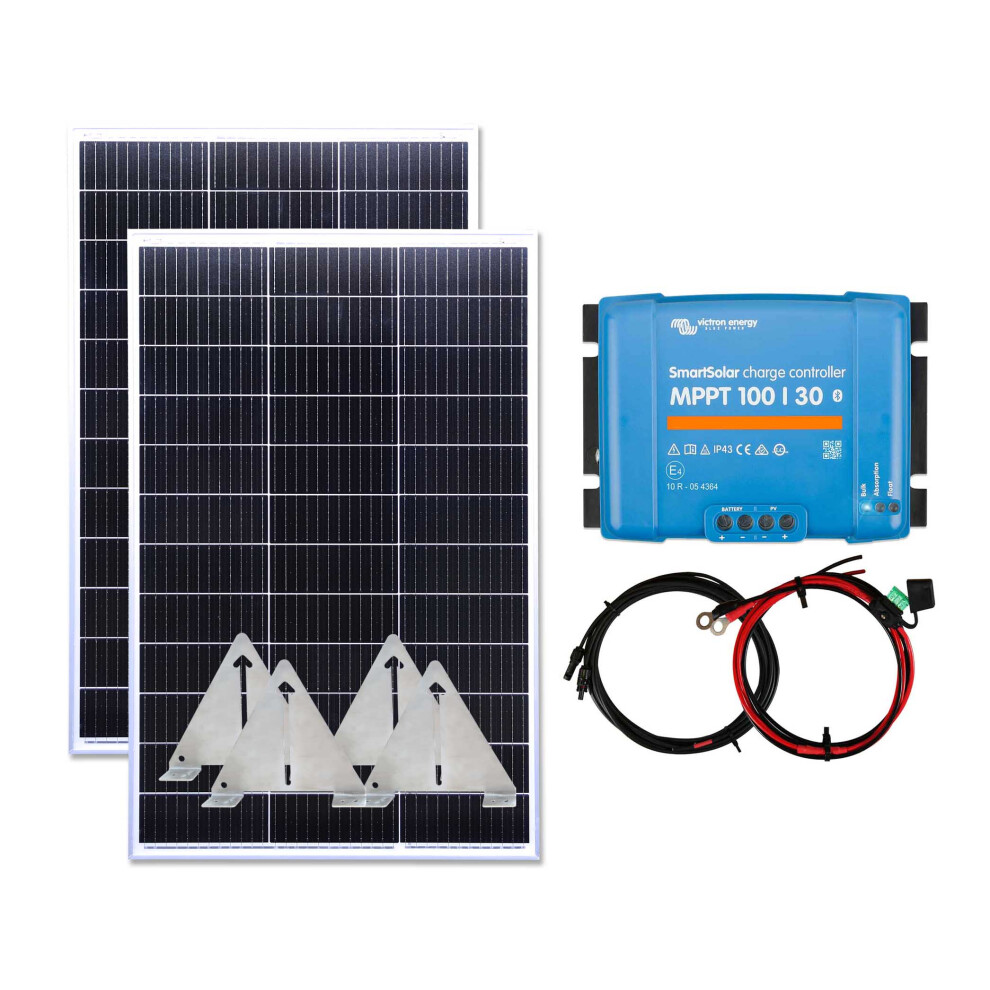

Victron 300w Mono Solar Panel Kit MPPT Smart Charging Controller Battery Flip Mounts

• 2 x 150w Mono Solar Panel by Lowenergie
• 1 x 30A 100/30 MPPT Smart Charge Controller by Victron Energy
• 1 x Solar PV to controller cable
• 1 x Battery to solar controller cable
• 4 x Flip Mounts

Technical Specifications

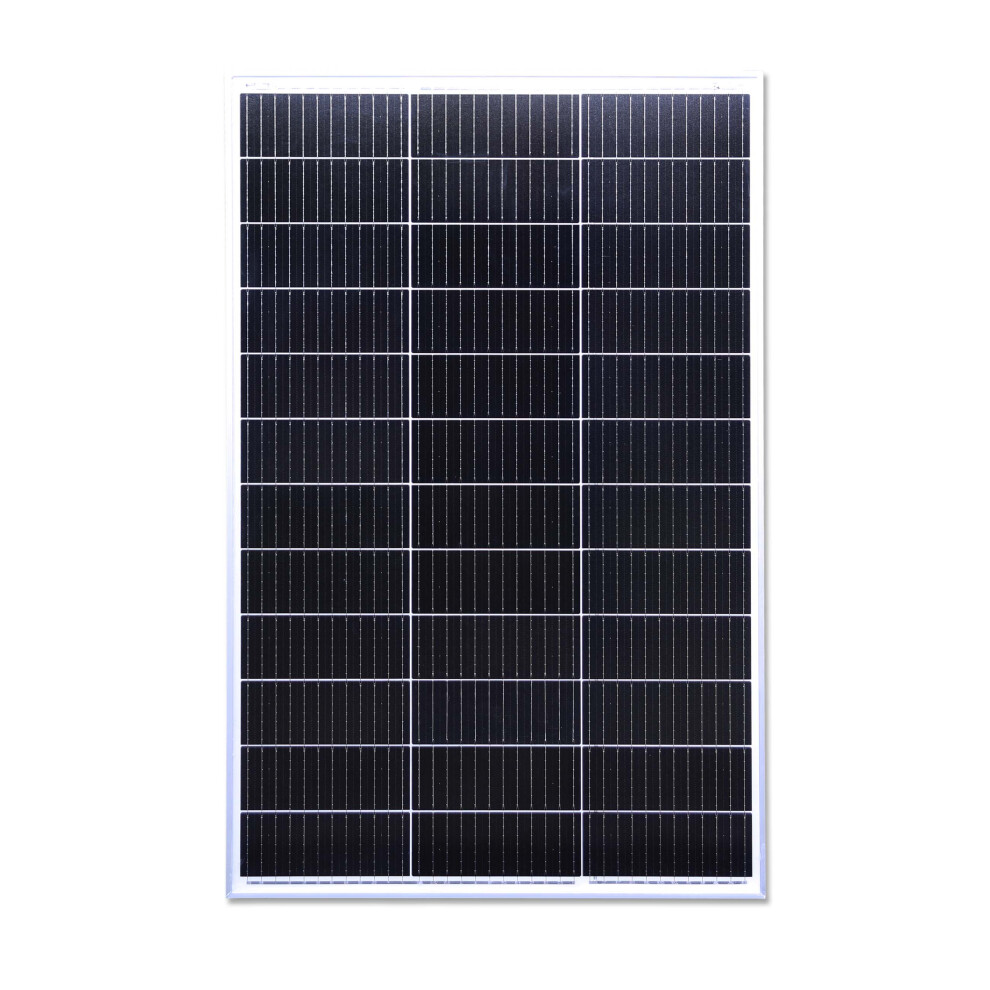

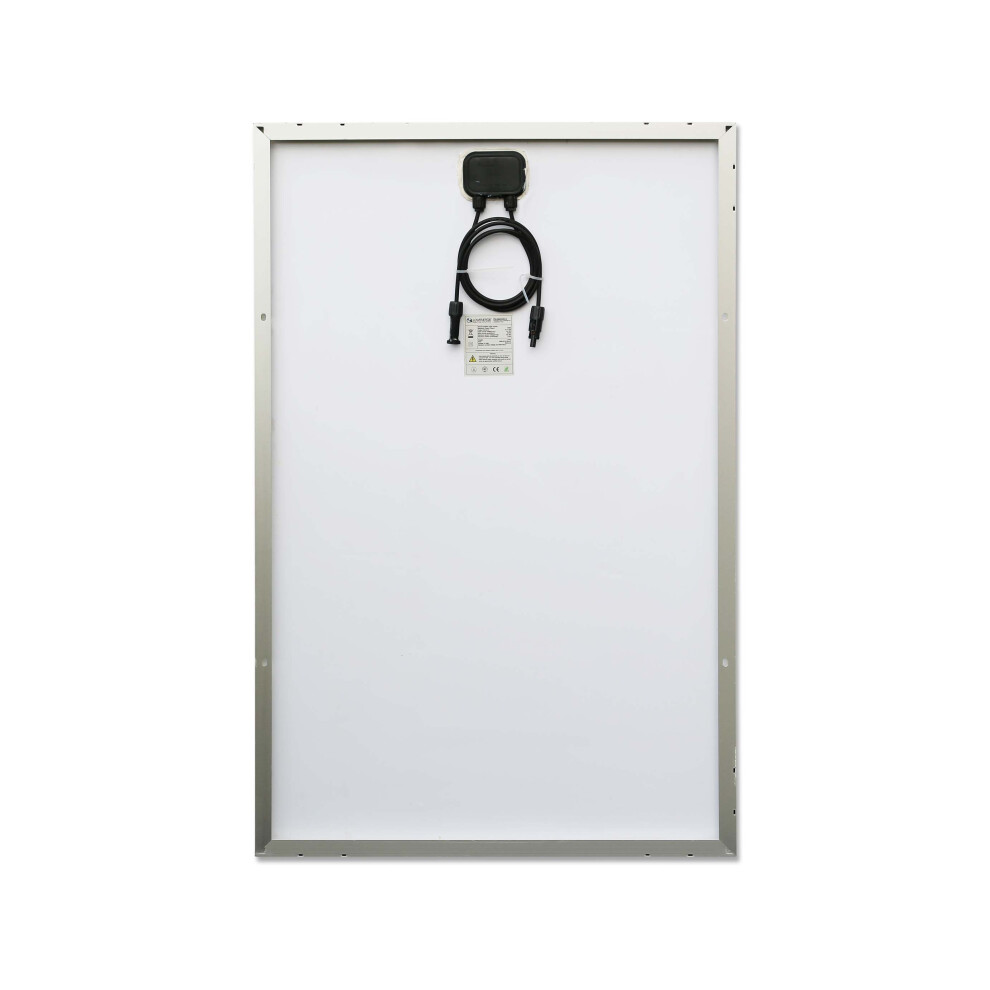

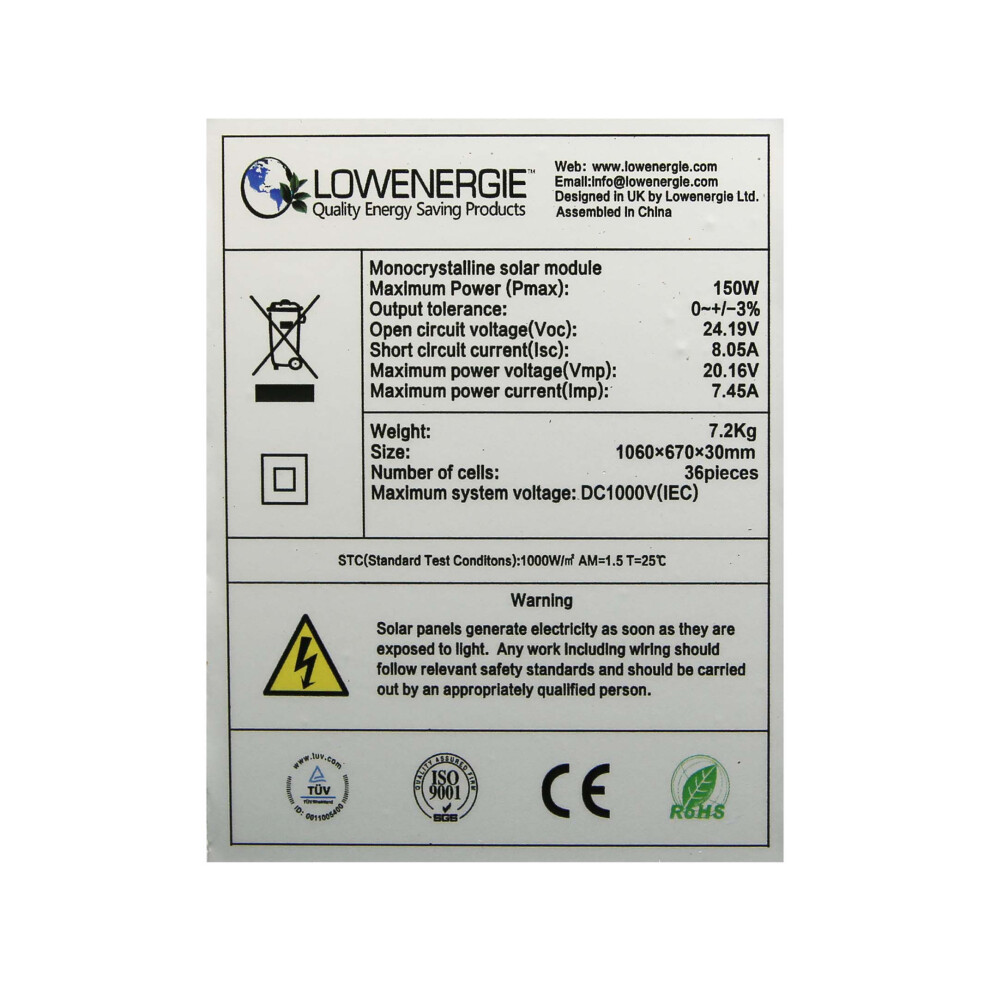

150-Watt Solar Panel (with 1m Cable & MC4 Connector Plugs)

• Maximum Power (Pmax): 150W
• Maximum Power Voltage (VMP): 20.16V
• Maximum Power Current (IMP): 7.45A
• Open Circuit Voltage (VOC): 24.19V
• Short Circuit Current (ISC): 8.05A
• Weight: 7.2KG
• Size: 1060 x 670 x 30mm
• Power Tolerance: +/-3%
• Maximum System Voltage: DC1000V
• Number of cells: 36

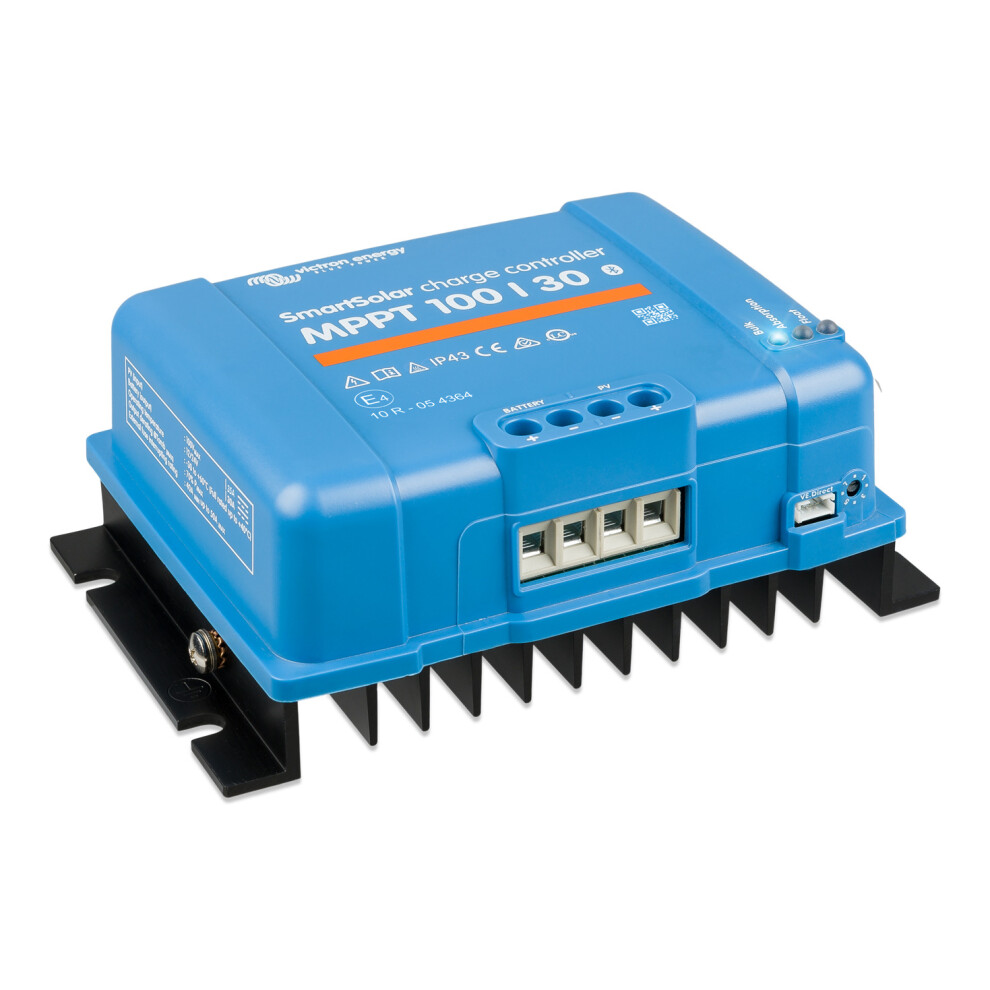

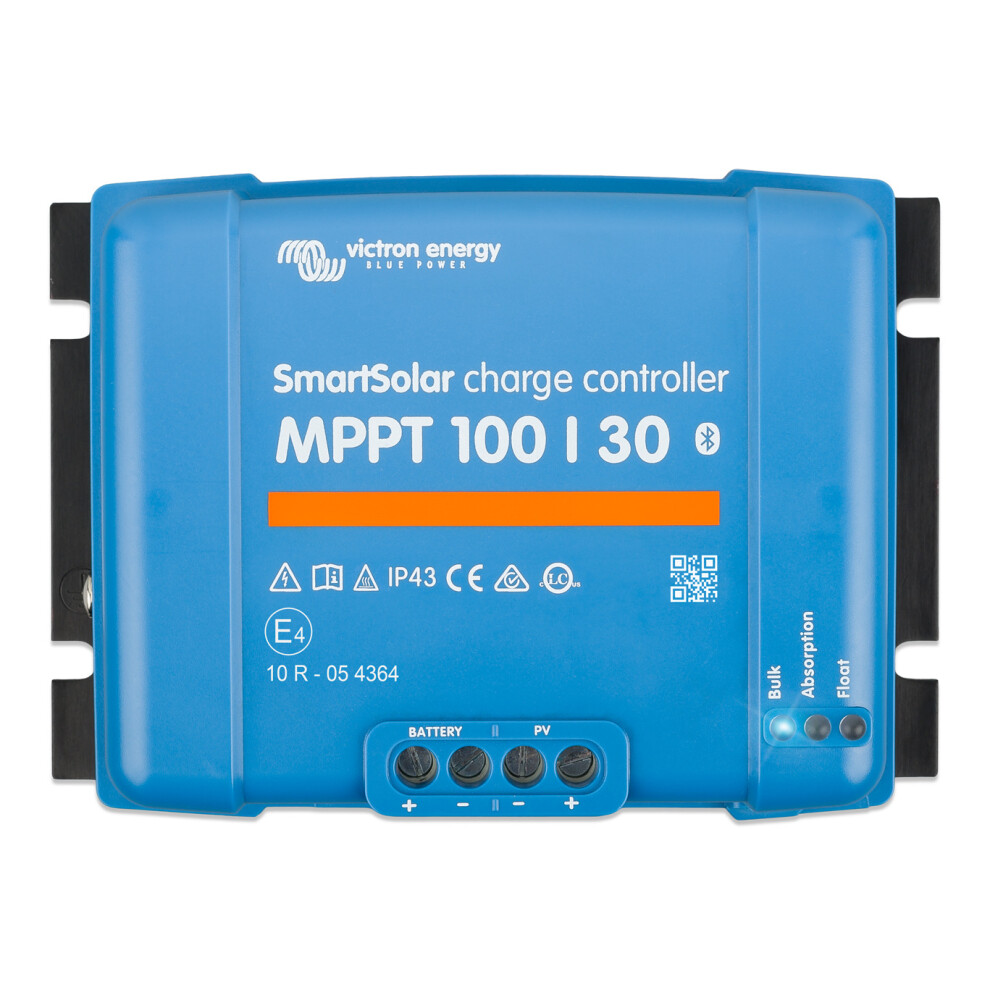

Technical - Victron MPPT Smart 100/30

Controller Specification:

• Dimensions: 130 x 186 x 70 mm
• Weight: 1300g
• Rated charging & load current: 30 Amps
• Maximum voltage input: 28V/55V
• Rated Voltage: 12V & 24V
• Protected against reverse polarity connection of the solar array and/or battery..

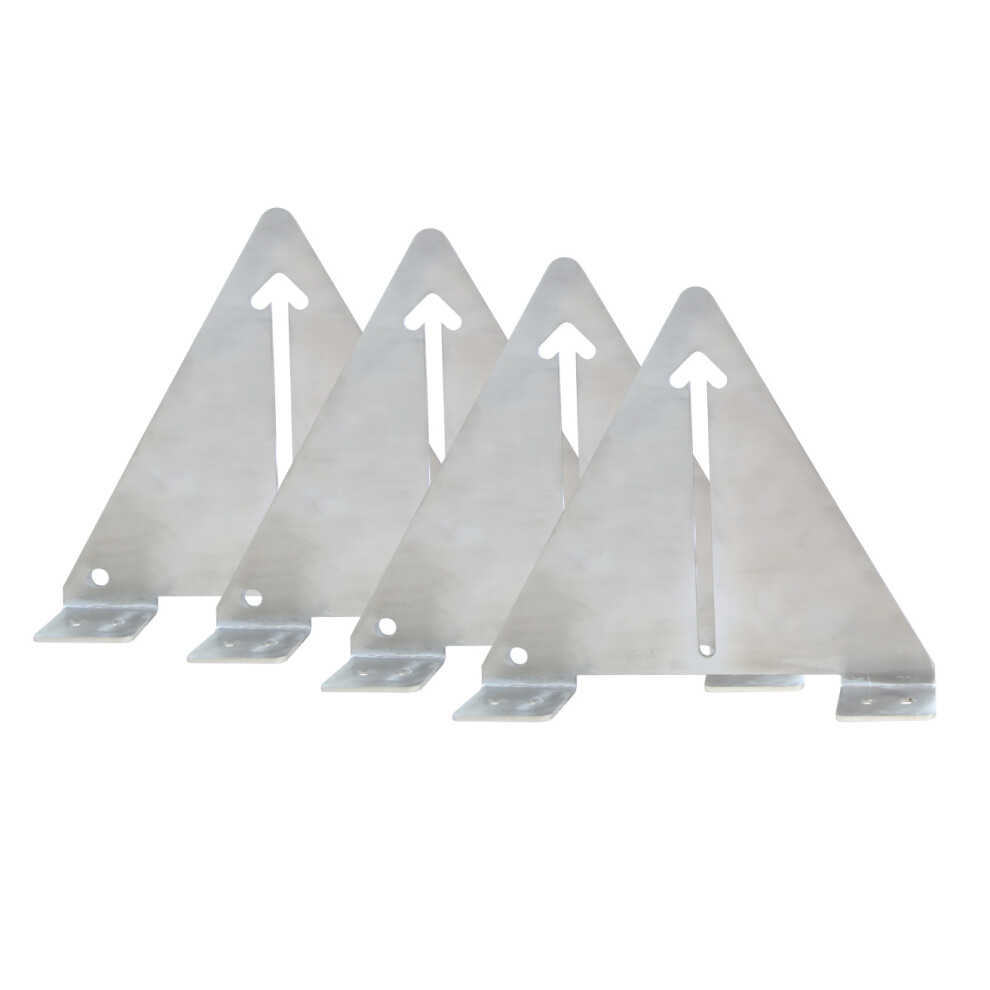

Tilting/Flip Mounts:

Tilting solar panel mountings. Tilt your panels towards the sun to achieve optimal power generation. More generated wattage will be achieved compared to panels laid flat. Allows for mounting onto curved boat roofs. Arrowhead design to ‘hook' the raised panel in place and stop it dropping down with vibration or high winds. Adjustable height and solar panel angle. Solar panels can be laid flat when not in use by sliding to the bottom. Max 36 degrees tilt. 240x240x240mm

All cabling carefully design to minimise voltage drops and maintain maximum system efficiency. TUV Approved

Product Warranties

Solar Panel = 10 Year for materials and workmanship

Charge Controller = 5 Year Victron Energy

All other components have a 12 month warranty.
